Molex 157 Control Cable, 7 Cores, 1 mm², Unscreened, Grey Polyurethane Sheath

View all Control Cable

Subtotal (1 reel of 1000 metres)*

£2,760.38

(exc. VAT)

£3,312.46

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£2,760.38£2.76

*price indicative

RS Stock No.:
283-477
Mfr. Part No.:
1571807516
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

157

Product Type

Control Cable

Number of Cores

7

Conductor Material

Copper

Jacket Material

Polyurethane

Jacket Colour

Grey

Screened/Unscreened

Unscreened

Outside Diameter

9.5 mm

Voltage

1000 V

Minimum Operating Temperature

-50°C

Conductor Type

Stranded

Standards/Approvals

RoHS, CEI EN 60754-1 / VDE 0482-754-1, UKCA, UL

Maximum Operating Temperature

90°C

Cable CSA

1 mm²

Hazardous Area Certification

No

Fire Behaviour

Flame resistance according to UL

COO (Country of Origin):
IT
The Molex cables are flexible, durable and high performance cables designed for demanding industrial applications, offering various core configuration, insulation, protective coating and UV resistance for enhanced reliability and longevity.

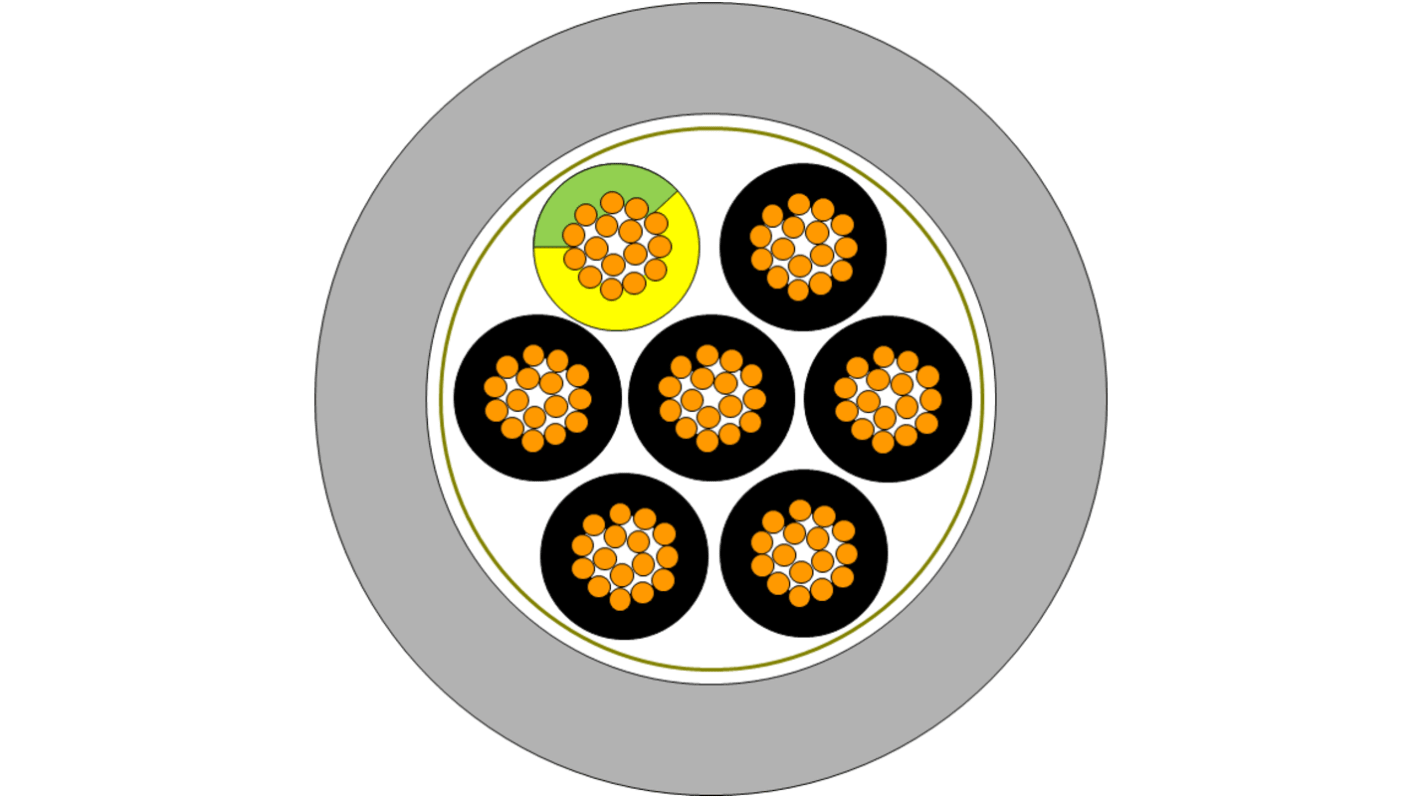

The part is a 7 core 1 mm² cross section cable with an outer diameter of 9.5 ± 0.3 mm

Flexible bare copper conductor adhering to IEC60228 standards

Polyolefin compound providing electrical insulation

PUR 90 ShA hardness offering durability and flexibility

Grey similar to RAL7001 to ensuring easy identification

Cables can handle speed up to 300 m per min and accelerations up to 10 m per sec
