Phoenix Contact SAC Bus Cable, 2 Cores, 0.25 mm² 24 AWG, Screened, 300 mm, Silver Polyurethane Sheath
- RS Stock No.:
- 270-562
- Mfr. Part No.:
- 1419057
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£20.30
(exc. VAT)
£24.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.30 |
*price indicative
- RS Stock No.:
- 270-562
- Mfr. Part No.:
- 1419057
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Product Type | Bus Cable | |
| Number of Cores | 2 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Silver | |
| Screened/Unscreened | Screened | |
| Cable Length | 300mm | |
| Outside Diameter | 6.7 mm | |
| Voltage | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | UL AWM Style 21198, UL 1581, Sec. 1060 (FT-1), IEC 60754-1, IEC 60332-1, EAC-RoHS, cULus | |
| Cable CSA | 0.25 mm² | |
| Hazardous Area Certification | No | |
| American Wire Gauge | 24AWG | |
| Fire Behaviour | Flame Retardant | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Product Type Bus Cable | ||
Number of Cores 2 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Silver | ||
Screened/Unscreened Screened | ||
Cable Length 300mm | ||
Outside Diameter 6.7 mm | ||
Voltage 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals UL AWM Style 21198, UL 1581, Sec. 1060 (FT-1), IEC 60754-1, IEC 60332-1, EAC-RoHS, cULus | ||
Cable CSA 0.25 mm² | ||
Hazardous Area Certification No | ||
American Wire Gauge 24AWG | ||
Fire Behaviour Flame Retardant | ||
- COO (Country of Origin):
- PL

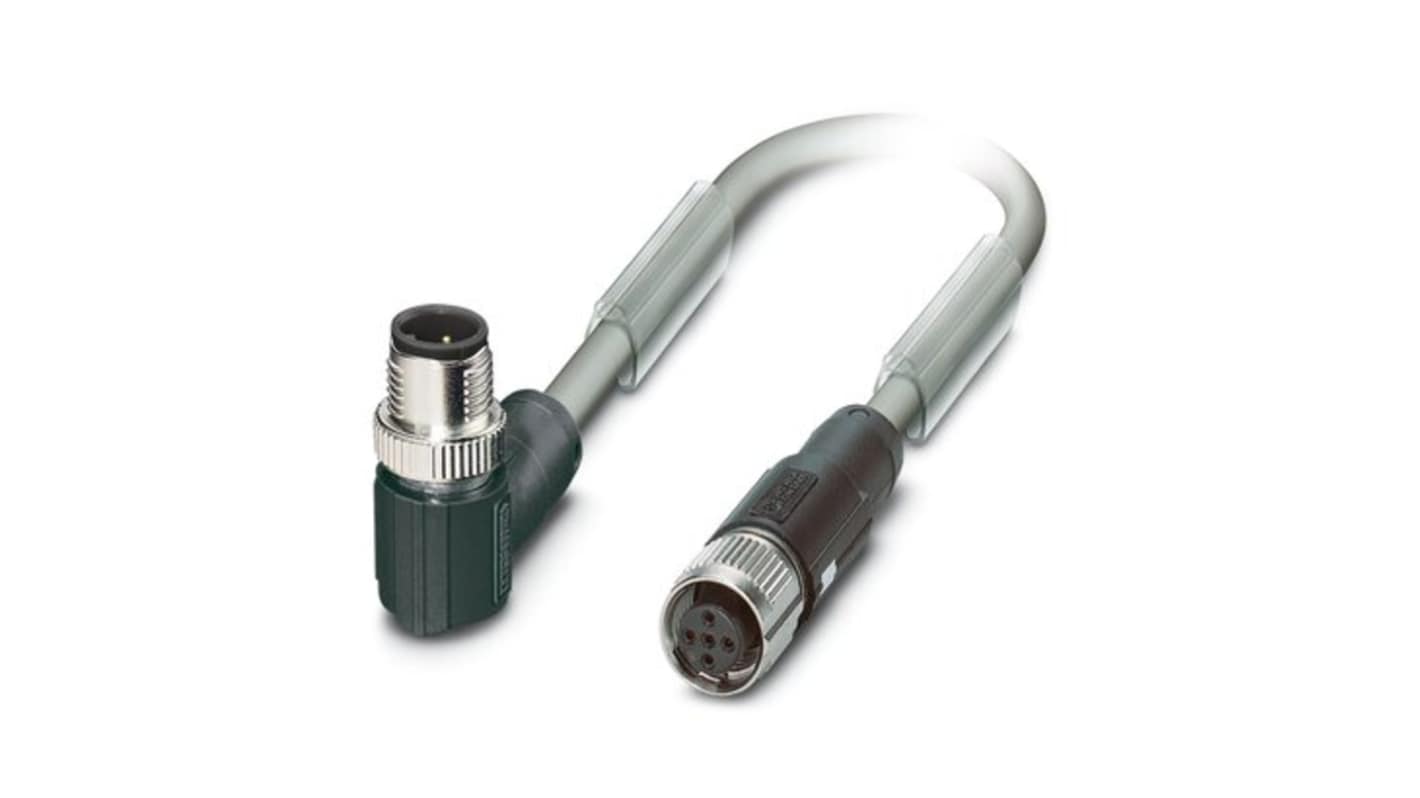

The Phoenix Contact Bus System Cable is designed for robust and reliable connectivity within automation tasks, featuring a preassembled design that streamlines installation processes. Built to withstand the rigours of industrial environments, it supports specifications for CANopen and DeviceNet protocols, ensuring versatile applications in a variety of systems. The cable is halogen free, which reflects modern safety standards and environmental considerations.
Connectors are M12 SPEEDCON types which ensuring quick and secure connections
Robust build quality increases longevity making it ideal for high demand applications
Documented approvals reassure compliance with industry standards enhancing trust in quality
