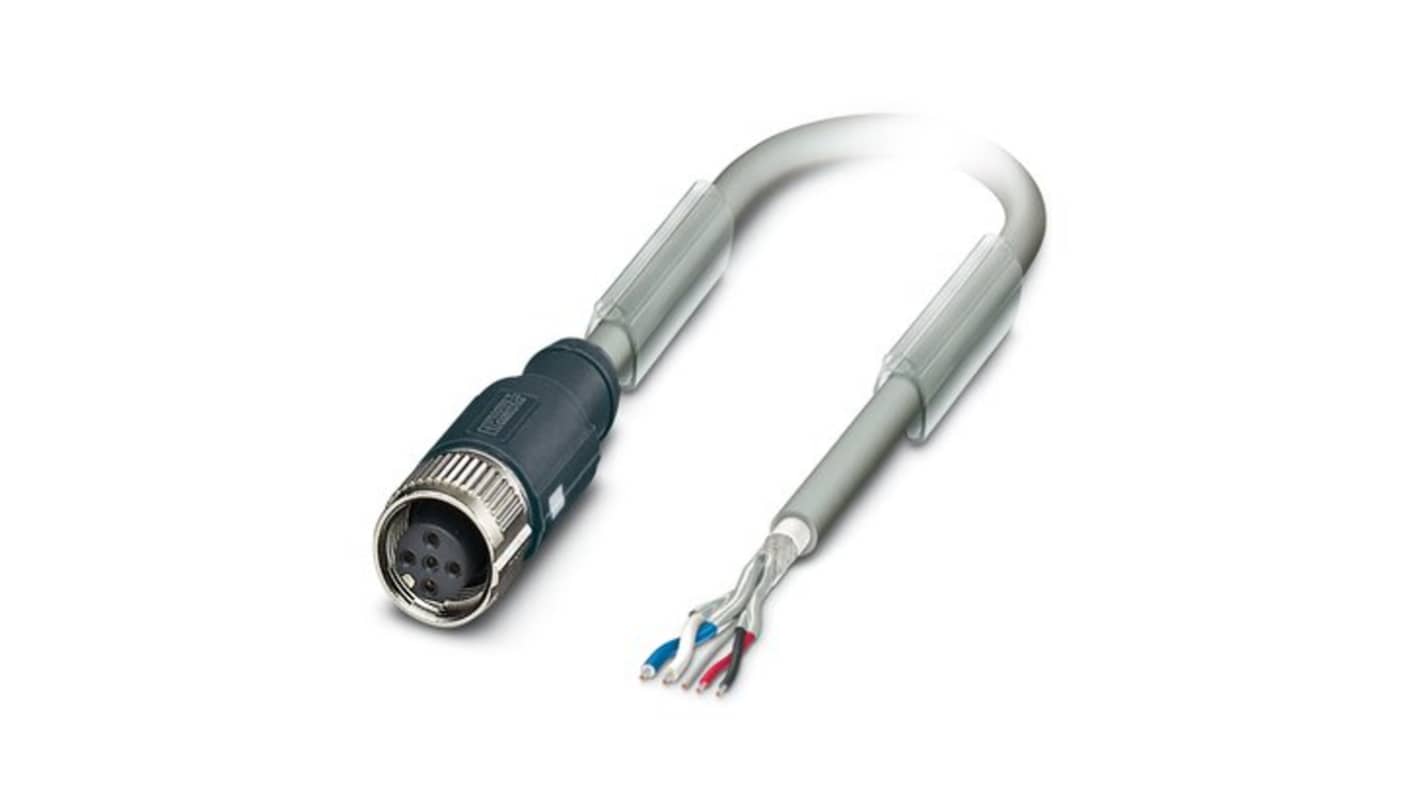

Phoenix Contact SAC Bus Cable, 5 Cores, 0.34 mm² 24 AWG, Screened, 20 m, Silver Grey Polyurethane Sheath
- RS Stock No.:
- 270-310
- Mfr. Part No.:
- 1419033
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£83.92
(exc. VAT)
£100.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.92 |
*price indicative
- RS Stock No.:
- 270-310
- Mfr. Part No.:
- 1419033
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | SAC | |
| Number of Cores | 5 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Silver Grey | |
| Screened/Unscreened | Screened | |
| Cable Length | 20m | |
| Outside Diameter | 6.7 mm | |
| Voltage | 48 V ac, 60 V dc | |
| Minimum Operating Temperature | -25°C | |
| Conductor Type | Stranded | |
| Standards/Approvals | cUL Listed, EAC-RoHS, UL Listed | |
| Maximum Operating Temperature | 90°C | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.34 mm² | |
| Fire Behaviour | IEC 60332-1 | |
| American Wire Gauge | 24AWG | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series SAC | ||
Number of Cores 5 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Silver Grey | ||
Screened/Unscreened Screened | ||
Cable Length 20m | ||
Outside Diameter 6.7 mm | ||
Voltage 48 V ac, 60 V dc | ||
Minimum Operating Temperature -25°C | ||
Conductor Type Stranded | ||
Standards/Approvals cUL Listed, EAC-RoHS, UL Listed | ||
Maximum Operating Temperature 90°C | ||
Hazardous Area Certification No | ||
Cable CSA 0.34 mm² | ||
Fire Behaviour IEC 60332-1 | ||
American Wire Gauge 24AWG | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Data cable is designed specifically for robust connectivity in demanding environments. With its five-position configuration and industry-standard CANopen® and DeviceNet™ compatibility, it ensures reliable communication for automation systems. Constructed with a halogen-free PUR outer layer, this cable not only delivers excellent mechanical durability but also meets stringent environmental standards.
Incorporates a smooth PUR outer sheath for improved abrasion resistance and longevity
Compatible with standard connectors to facilitate straightforward integration into existing systems
Significantly lightweight aiding in easy handling and installation in various setups
