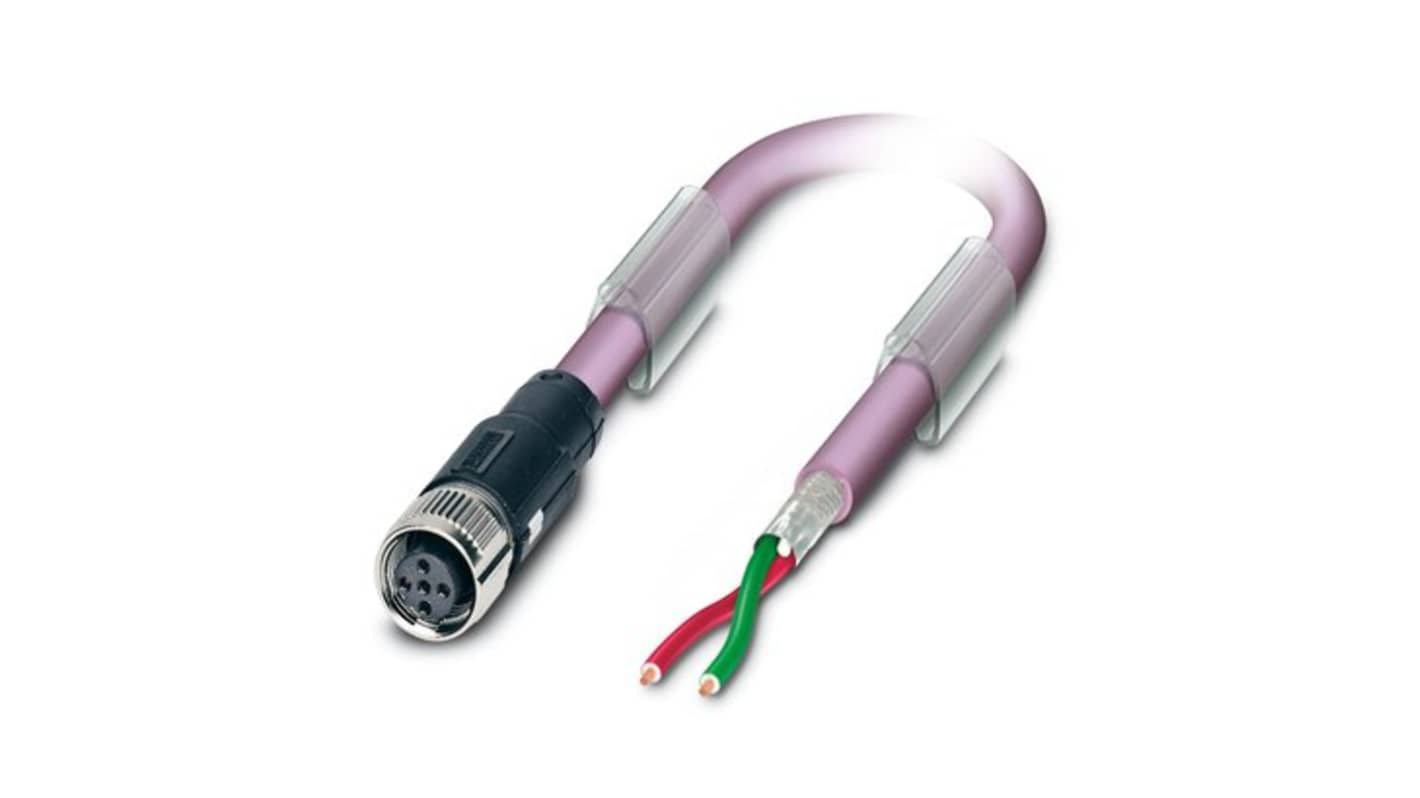

Phoenix Contact Bus Bus Cable, 2 Cores, 0.25 mm² 24 AWG, Screened, 2 m Polyurethane Sheath
- RS Stock No.:
- 268-263
- Mfr. Part No.:
- 1518067
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£23.57
(exc. VAT)
£28.28
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.57 |
*price indicative
- RS Stock No.:
- 268-263
- Mfr. Part No.:
- 1518067
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | Bus | |
| Number of Cores | 2 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyurethane | |
| Screened/Unscreened | Screened | |
| Cable Length | 2m | |
| Outside Diameter | 7.8 mm | |
| Voltage | 48 V ac, 60 V dc | |
| Minimum Operating Temperature | -25°C | |
| Conductor Type | Stranded | |
| Standards/Approvals | EU REACH SVHC, CHINA RoHS, cUL Listed, cULus Listed, EAC-RoHS, EU RoHS, UL Listed | |
| Maximum Operating Temperature | 90°C | |
| Cable CSA | 0.25 mm² | |
| Hazardous Area Certification | No | |
| Fire Behaviour | IEC 60332-1-2 | |
| American Wire Gauge | 24AWG | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series Bus | ||
Number of Cores 2 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyurethane | ||
Screened/Unscreened Screened | ||
Cable Length 2m | ||
Outside Diameter 7.8 mm | ||
Voltage 48 V ac, 60 V dc | ||
Minimum Operating Temperature -25°C | ||
Conductor Type Stranded | ||
Standards/Approvals EU REACH SVHC, CHINA RoHS, cUL Listed, cULus Listed, EAC-RoHS, EU RoHS, UL Listed | ||
Maximum Operating Temperature 90°C | ||
Cable CSA 0.25 mm² | ||
Hazardous Area Certification No | ||
Fire Behaviour IEC 60332-1-2 | ||
American Wire Gauge 24AWG | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Bus System Cable has been expertly designed to facilitate efficient and reliable connectivity within PROFIBUS networks. With its robust construction, this cable ensures minimal interference, making it ideal for demanding industrial applications. Its durable materials, including halogen free PUR, offer enhanced protection against environmental factors while promoting safety in the workplace.
Preassembled connector saves time during installation
Robust construction withstands harsh industrial conditions
Distinctive colour improves visibility in complex installations
Optimized for use with PROFIBUS systems which ensuring compatibility
Excellent flexibility accommodates various installation scenarios
High quality components enhance long term reliability
