Alpha Wire 5537 Cable, 7 Cores, 1.5 mm² 16 AWG, Screened, 1000 ft, Grey Polyvinyl Chloride Sheath

View all Control Cable

Subtotal (1 reel of 305 metres)*

£13,354.85

(exc. VAT)

£16,025.82

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£13,354.85£43.786

*price indicative

RS Stock No.:
105-457
Mfr. Part No.:
5537 SL001
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Product Type

Cable

Series

5537

Number of Cores

7

Conductor Material

Tin Copper Wire

Jacket Material

Polyvinyl Chloride

Jacket Colour

Grey

Screened/Unscreened

Screened

Cable Length

1000ft

Outside Diameter

0.553 in

Voltage

600 Vrms

Conductor Type

Stranded

Minimum Operating Temperature

30°C

Standards/Approvals

CE, CSA, EN 60332-2, IEC EN 60332-1, REACH, RoHS, UL

Maximum Operating Temperature

105°C

Hazardous Area Certification

No

Cable CSA

1.5 mm²

Fire Behaviour

EN 60332-1, EN 60332-2

American Wire Gauge

16AWG

Core Strands

16

COO (Country of Origin):
US

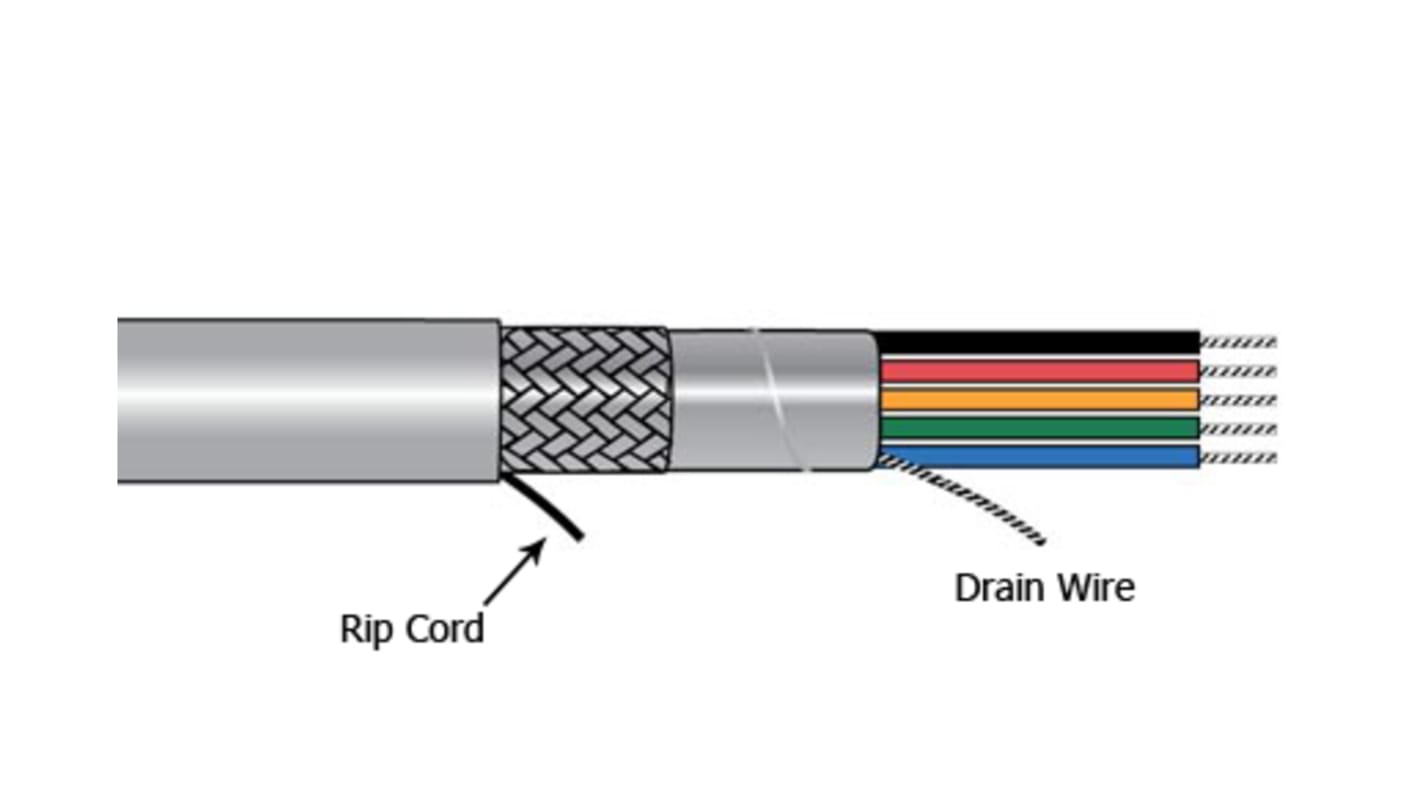

The Alphawire multiconductor control cable is a high-performance cable for general-purpose applications features a unique, premium-grade PVC insulation and jacket for easier routing of cable in small spaces and designed for use in ambient temperatures up to 105 degree Celsius.

Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43

Provides exceptional protection contre EMI interference when Supra-Shield is specified
