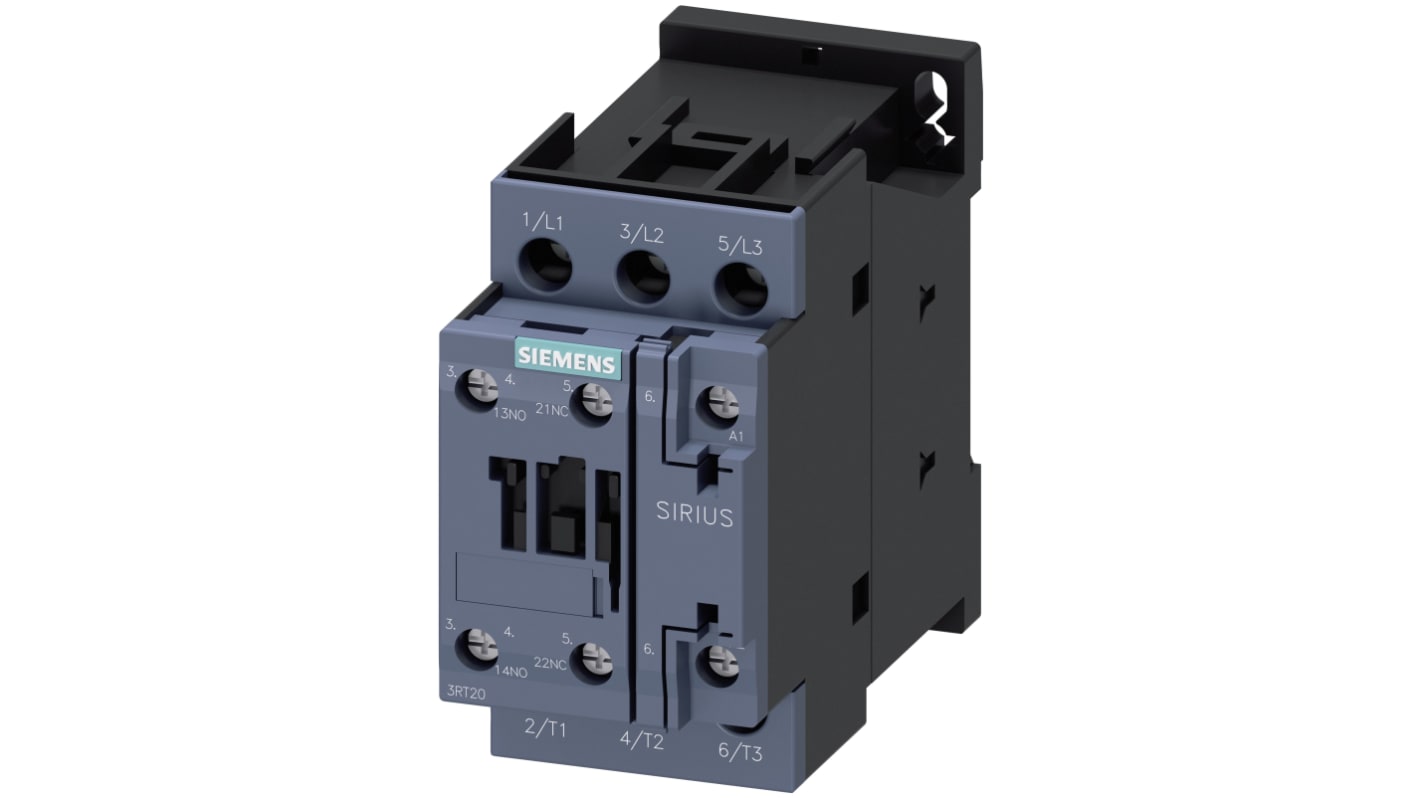

Siemens SIRIUS 3RT Size S0, 3RT2 Contactor, 24 V ac Coil, 3-Pole, 32 A, 15 kW, 3NO, 400 V ac
- RS Stock No.:
- 866-5841
- Distrelec Article No.:
- 304-23-385
- Mfr. Part No.:
- 3RT2027-1AC20
- Brand:
- Siemens
Subtotal (1 unit)*
£103.76
(exc. VAT)
£124.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £103.76 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 866-5841
- Distrelec Article No.:
- 304-23-385
- Mfr. Part No.:
- 3RT2027-1AC20
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 24 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 400 V ac | |
| Contact Current Rating | 32 A | |
| Power Rating | 15 kW | |
| Series | Size S0, 3RT2 | |
| Range | SIRIUS 3RT | |
| Normal State Configuration | 3NO | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Length | 85mm | |
| Width | 45mm | |
| Depth | 97mm | |
| Better World Product | Yes | |
| Better World Claim | Low carbon manufacture | |
| Pole and Throw Configuration | 3P | |
| Mounting Style | DIN Rail | |
| Maximum Operating Temperature | +60°C | |
| Control Voltage | 24 V | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 24 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 32 A | ||
Power Rating 15 kW | ||
Series Size S0, 3RT2 | ||
Range SIRIUS 3RT | ||
Normal State Configuration 3NO | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Length 85mm | ||
Width 45mm | ||
Depth 97mm | ||
Better World Product Yes | ||
Better World Claim Low carbon manufacture | ||
Pole and Throw Configuration 3P | ||
Mounting Style DIN Rail | ||
Maximum Operating Temperature +60°C | ||
Control Voltage 24 V | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Siemens 3RT2 Series Contactor, 24V AC Coil Voltage, 3NO Normal State Configuration - 3RT2027-1AC20
This contactor is crucial for various electrical applications, providing consistent control in automation systems. It operates at a coil voltage of 24 V AC with a power rating of 15 kW while effectively managing loads. Built to endure extreme temperature conditions, it is suited for a variety of environments.
Features & Benefits
• Supports 32A operational current for heavy-duty tasks
• 3-pole configuration offers versatile load control
• Auxiliary contacts enhance functionality
• Low carbon manufacture supports environmental sustainability
• Compact screw terminal design simplifies installation
• Maximum operating temperature of +60°C ensures consistent performance
• 3-pole configuration offers versatile load control
• Auxiliary contacts enhance functionality
• Low carbon manufacture supports environmental sustainability
• Compact screw terminal design simplifies installation
• Maximum operating temperature of +60°C ensures consistent performance
Applications
• Suitable for industrial machinery that requires robust load control
• Applicable for motor control in HVAC systems
• Employed in automated assembly lines for efficiency
• Ideal for high-power electric motor
• Used in control panels where space constraints exist
• Applicable for motor control in HVAC systems
• Employed in automated assembly lines for efficiency
• Ideal for high-power electric motor
• Used in control panels where space constraints exist
How does the contactor perform in varying temperature conditions?
It functions effectively within a range of -25°C to +60°C, ensuring performance in both cold and hot environments.
What type of electrical connections are supported?
It uses screw-type terminals for both main and auxiliary circuits, enabling secure connections.
Can it be utilised for automation tasks?
Yes, it is designed to control motors and other loads, facilitating automation.
What is the expected mechanical service life of the contactor?
The mechanical service life is approximately 10,000,000 operating cycles, providing durability.
How is this product environmentally friendly?
It is manufactured using low carbon processes, which helps reduce environmental impact during production.
