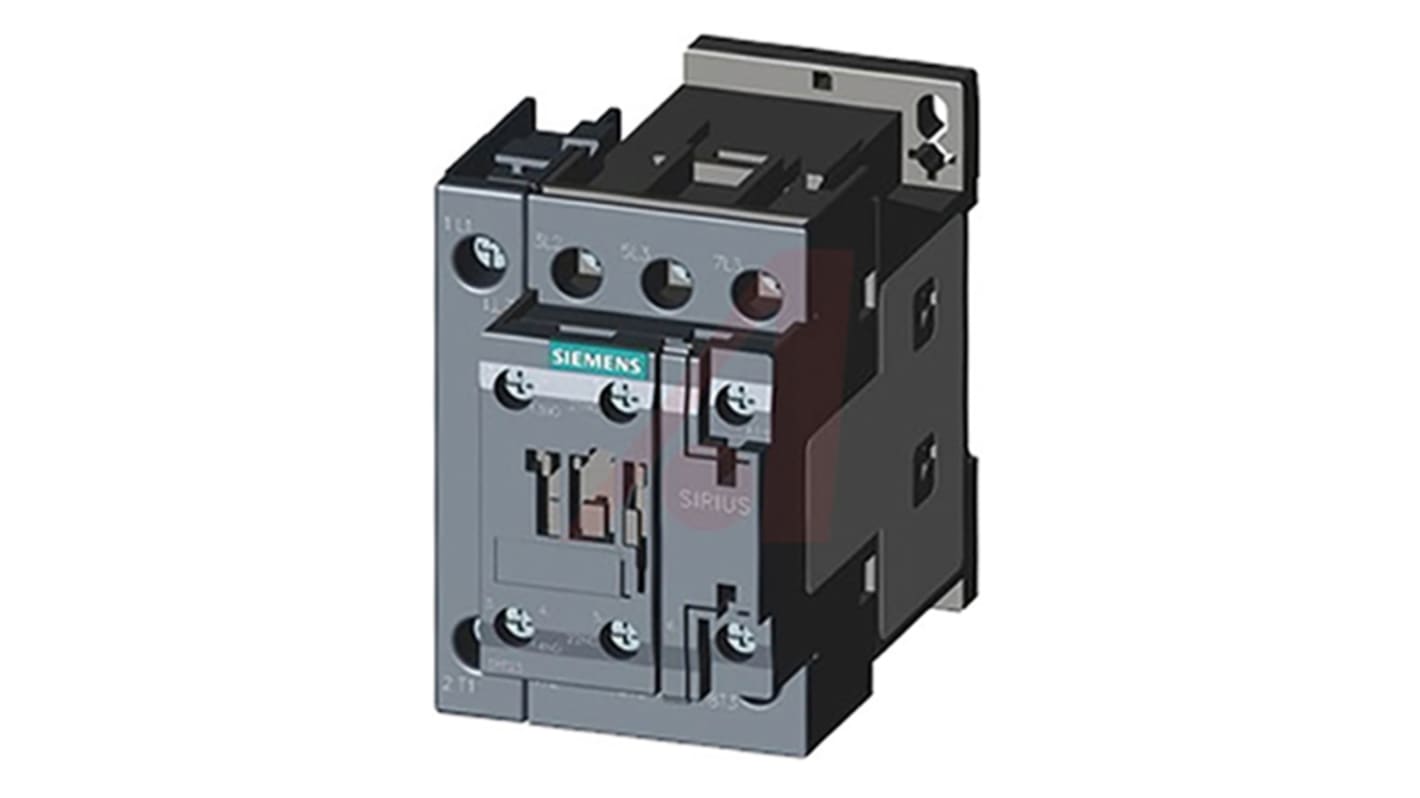

Siemens SIRIUS 3RT.3 Size S0, 3RT23 Contactor, 230 V ac Coil, 4-Pole, 15.5 A, 7.5 kW, 4NO, 690 V ac
- RS Stock No.:
- 866-5728
- Mfr. Part No.:
- 3RT2325-1AP60
- Brand:
- Siemens
Subtotal (1 unit)*
£65.54
(exc. VAT)
£78.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £65.54 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 866-5728
- Mfr. Part No.:
- 3RT2325-1AP60
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 15.5 A | |
| Range | SIRIUS 3RT.3 | |
| Series | Size S0, 3RT23 | |
| Power Rating | 7.5 kW | |
| Normal State Configuration | 4NO | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Length | 85mm | |
| Width | 60mm | |
| Depth | 97mm | |
| Better World Product | Yes | |
| Better World Claim | Low carbon manufacture | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 230 V ac | ||
Number of Poles 4 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 15.5 A | ||
Range SIRIUS 3RT.3 | ||
Series Size S0, 3RT23 | ||
Power Rating 7.5 kW | ||
Normal State Configuration 4NO | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Length 85mm | ||
Width 60mm | ||
Depth 97mm | ||
Better World Product Yes | ||
Better World Claim Low carbon manufacture | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Contactors - 3RT Range, Screw Connections
The 3RT Range of Siemens Contactors. All models are highly reliable and extremely good quality.
Features and Benefits
- Screw Connection
- All models vary with Current rating and Voltage.
- Various NO/NC Values
