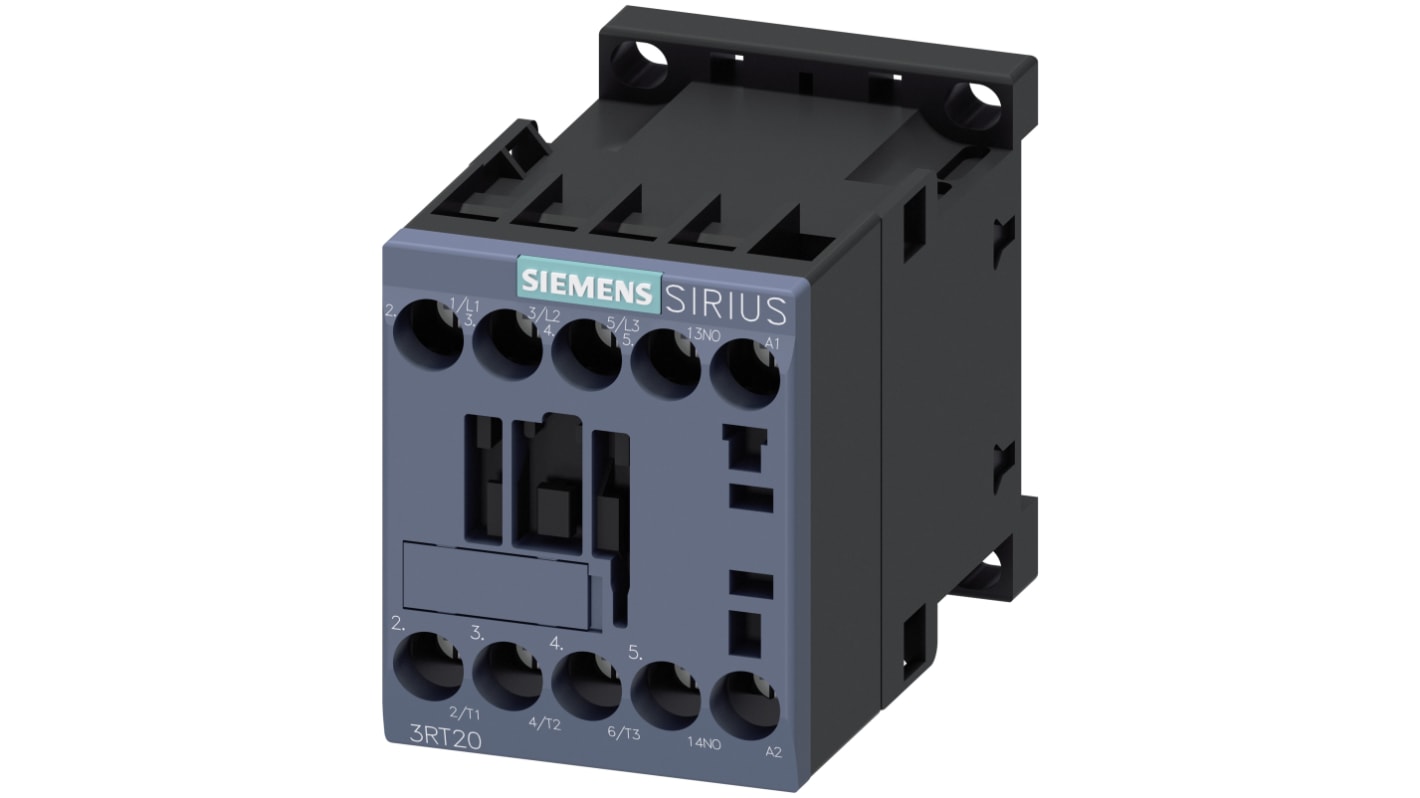

Siemens SIRIUS 3RT Size S00, 3RT2 Contactor, 110 V ac Coil, 3-Pole, 7 A, 3 kW, 3NO, 400 V ac
- RS Stock No.:
- 861-3067
- Mfr. Part No.:
- 3RT2015-1AK61
- Brand:
- Siemens
Subtotal (1 unit)*
£29.19
(exc. VAT)
£35.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.19 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 861-3067
- Mfr. Part No.:
- 3RT2015-1AK61
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 110 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 400 V ac | |
| Contact Current Rating | 7 A | |
| Series | Size S00, 3RT2 | |
| Power Rating | 3 kW | |
| Range | SIRIUS 3RT | |
| Normal State Configuration | 3NO | |
| Auxiliary Contact Configuration | 1NO | |
| Number Of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 58mm | |
| Depth | 73mm | |
| Better World Product | Yes | |
| Better World Claim | Low carbon manufacture | |
| Pole and Throw Configuration | 3PST | |
| Maximum Operating Temperature | +60°C | |
| Control Voltage | 110 V ac | |
| Load Voltage | 400V ac | |
| Load Current | 7A | |
| Minimum Operating Temperature | -25°C | |
| Mounting Style | DIN Rail | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 110 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 7 A | ||
Series Size S00, 3RT2 | ||
Power Rating 3 kW | ||
Range SIRIUS 3RT | ||
Normal State Configuration 3NO | ||
Auxiliary Contact Configuration 1NO | ||
Number Of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 58mm | ||
Depth 73mm | ||
Better World Product Yes | ||
Better World Claim Low carbon manufacture | ||
Pole and Throw Configuration 3PST | ||
Maximum Operating Temperature +60°C | ||
Control Voltage 110 V ac | ||
Load Voltage 400V ac | ||
Load Current 7A | ||
Minimum Operating Temperature -25°C | ||
Mounting Style DIN Rail | ||
- Switching Devices for Load Feeders
- Datasheet_3RT2015-1AK61
- Sirius Innovation Accessory Guide
- Sirius Innovation Catalogue
- Sirius Innovations Switching Devices
- Solutions for frequent switching or soft starting
- Basic Information
- Siemens Sirius Migration
- Sirius: Migrating From Classic to Innovation
- Environmental Product Declaration - Overview
- Siemens EcoTech label
- Environmental Product Declaration
- Instruction Sheet - 3RT2.1/3RH21/3RH24 Series
- Manual - Load Feeder
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Siemens size S00, 3RT2 Series Contactor, 110V AC Coil Voltage, 3 Poles - 3RT2015-1AK61
This contactor is designed for efficient operation within automated systems. This model is tailored for 3-phase applications and operates at a coil voltage of 110V AC. Offered in a compact size S00, this DIN rail mount contactor features robust dimensions of 58mm x 45mm x 73mm, making installation straightforward while saving valuable space.
Features & Benefits
• 3-pole configuration supports comprehensive control solutions
• Load capacity of 7A ensures reliable performance
• Suitable for high operating temperatures up to +60°C
• Auxiliary contact included for expanded functionality
• Screw terminal connections provide secure wiring options
• Load capacity of 7A ensures reliable performance
• Suitable for high operating temperatures up to +60°C
• Auxiliary contact included for expanded functionality
• Screw terminal connections provide secure wiring options
Applications
• Utilised in motor control for automation systems
• Used for switching functions in electrical installations
• Suitable for use with industrial machinery and equipment
• Can be integrated into safety circuits for enhanced reliability
• Used for switching functions in electrical installations
• Suitable for use with industrial machinery and equipment
• Can be integrated into safety circuits for enhanced reliability
What is the operational voltage range for this contactor?
This device functions effectively at an operational voltage of up to 690V AC, accommodating diverse industrial power requirements.
How does the design of this contactor enhance its durability?
The robust construction, along with a mechanical service life rated at 30 million operating cycles, ensures longevity and reliability in demanding environments.
What type of mounting is compatible with this contactor?
It is designed for snap-on mounting onto a 35mm DIN rail, facilitating quick and efficient installation in control panels and systems.
