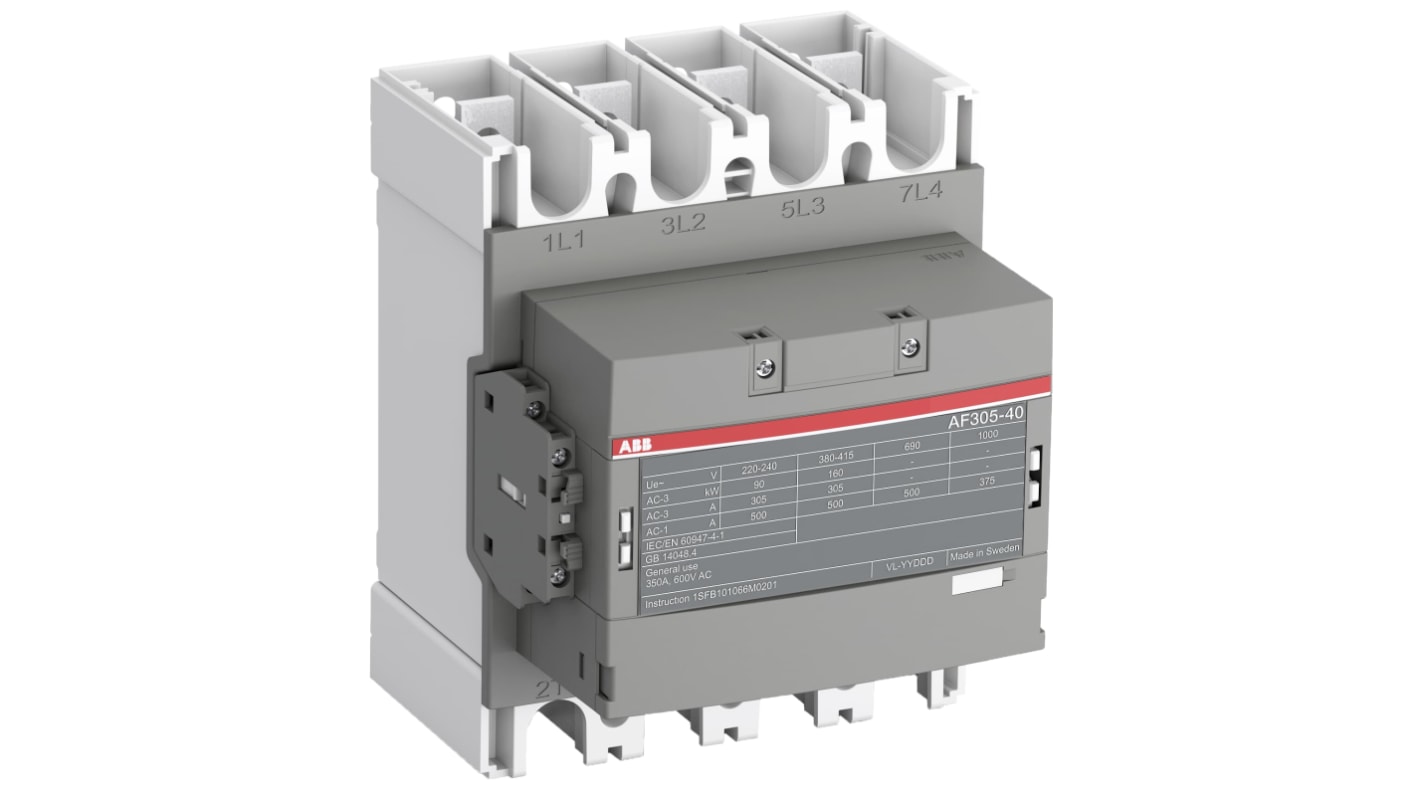

ABB AF305 Contactor, 230V ac Coil, 4-Pole, 500 A, 160 kW 250V, 4 NO, 1kV
- RS Stock No.:
- 837-6958
- Mfr. Part No.:
- 1SFL587102R1311
- Brand:
- ABB
Subtotal (1 unit)*
£1,875.43
(exc. VAT)
£2,250.52
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,875.43 |
*price indicative
- RS Stock No.:
- 837-6958
- Mfr. Part No.:
- 1SFL587102R1311
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 230V ac | |
| Number of Poles | 4 | |
| Contact Voltage | 1kV | |
| Contact Current | 500A | |
| Series | AF305 | |
| Power Rating | 160kW | |
| Mount Type | Screw | |
| Function | Motor Control | |
| Normal State Configuration | 4 NO | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Bars | |
| Control Circuit Voltage Uc | 250V | |
| Contactor Application | Motor Control | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 305A | |
| Maximum Operating Temperature | 70°C | |
| Length | 180mm | |
| Width | 184mm | |
| Standards/Approvals | UL, CCC, CE, EAC, IEC, RoHS | |
| Depth | 180mm | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 230V ac | ||
Number of Poles 4 | ||
Contact Voltage 1kV | ||
Contact Current 500A | ||
Series AF305 | ||
Power Rating 160kW | ||
Mount Type Screw | ||
Function Motor Control | ||
Normal State Configuration 4 NO | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Bars | ||
Control Circuit Voltage Uc 250V | ||
Contactor Application Motor Control | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 305A | ||
Maximum Operating Temperature 70°C | ||
Length 180mm | ||
Width 184mm | ||
Standards/Approvals UL, CCC, CE, EAC, IEC, RoHS | ||
Depth 180mm | ||
Pole and Throw Configuration 4 | ||
ABB AF Series Contactor, 1 kV Contact Voltage Rating, 160kW - 1SFL587102R1311
This contactor is designed for controlling motors up to 160kW at 400V AC. With four poles and robust construction, it effectively manages substantial electrical loads. The dimensions of this heavy-duty contactor are 180mm in width, 184mm in depth, and 180mm in length, ensuring compatibility with a variety of installations.
Features & Benefits
• Rated for 500A contact current supports high current requirements
• Built-in surge protection ensures consistent performance
• Functions optimally up to +70°C for challenging environments
Applications
• Suitable for motor control in industrial settings
• Used with additional auxiliary contact blocks for expanded functionality
Can it handle both AC and DC control voltages?
Yes, it supports a control voltage range of 100 to 250V for both AC and DC.
Is it compatible with heavy-duty applications?
Yes, it is rated for high current loads, suitable for such tasks.
