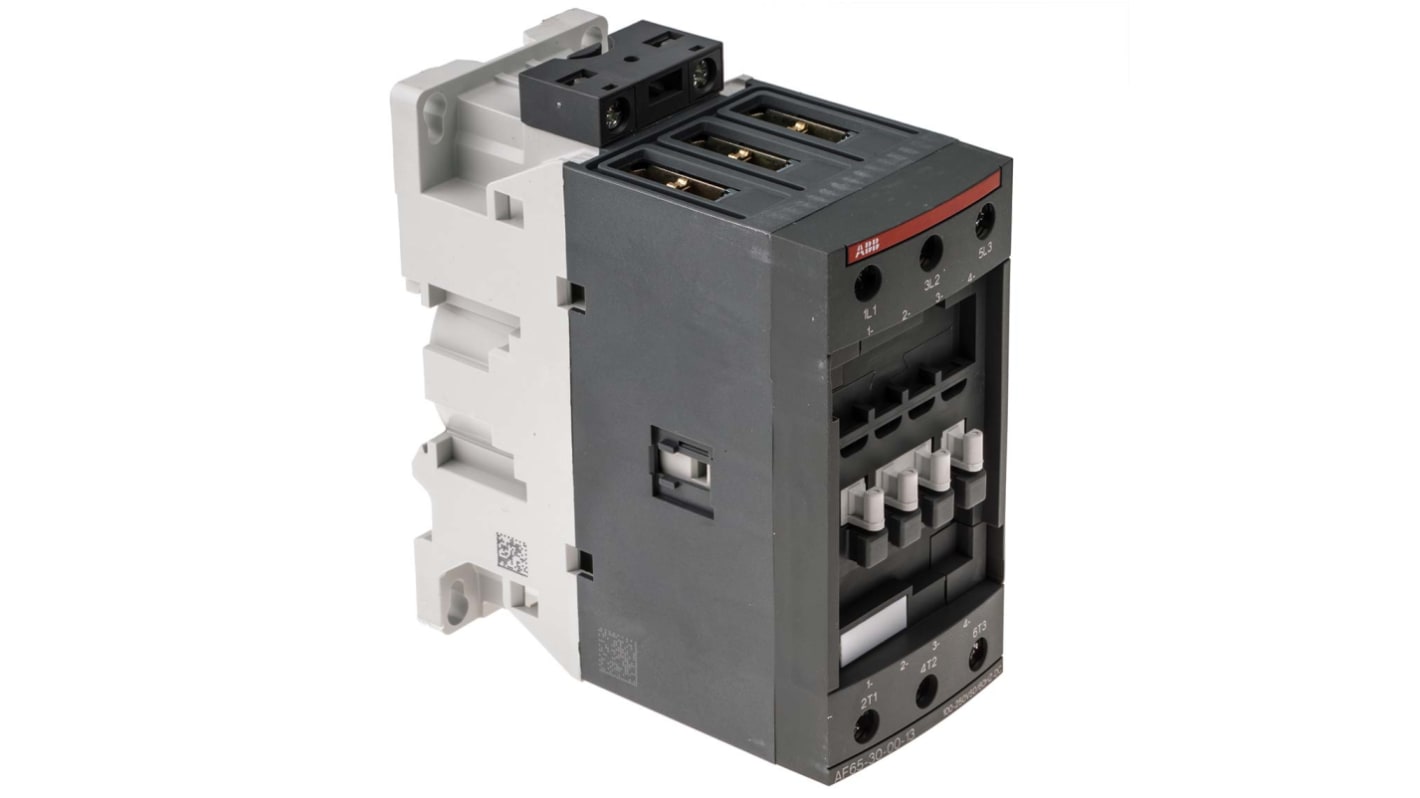

ABB AF65-30-00-13 AF Contactor, 230 V ac Coil, 3-Pole, 105 A, 30 kW, 3NO, 690 V ac
- RS Stock No.:
- 800-7201
- Distrelec Article No.:
- 304-22-311
- Mfr. Part No.:
- 1SBL387001R1300 AF65-30-00-13
- Brand:
- ABB
Subtotal (1 unit)*
£254.48
(exc. VAT)
£305.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 9 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £254.48 |
*price indicative
- RS Stock No.:
- 800-7201
- Distrelec Article No.:
- 304-22-311
- Mfr. Part No.:
- 1SBL387001R1300 AF65-30-00-13
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 105 A | |
| Range | AF65-30-00-13 | |
| Power Rating | 30 kW | |
| Series | AF | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Length | 55mm | |
| Width | 125.5mm | |
| Depth | 111mm | |
| Minimum Operating Temperature | -40°C | |
| Pole and Throw Configuration | 3P | |
| Maximum Operating Temperature | +70°C | |
| Control Voltage | 100 → 250 V | |
| Mounting Style | DIN Rail Mount | |
Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 230 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 105 A | ||
Range AF65-30-00-13 | ||
Power Rating 30 kW | ||
Series AF | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Length 55mm | ||
Width 125.5mm | ||
Depth 111mm | ||
Minimum Operating Temperature -40°C | ||
Pole and Throw Configuration 3P | ||
Maximum Operating Temperature +70°C | ||
Control Voltage 100 → 250 V | ||
Mounting Style DIN Rail Mount | ||
RoHS Status: Not Applicable
ABB Contactor, Rail Mounting, 4VA Coil Consumption Rating - AF Series - 1SBL387001R1300 AF65-30-00-13
Switch large electrical loads in a snap with this ABB contactor. It drives motors rated up to 30kW, so you can trust it to start up heavy-duty hardware without a snag. With switching times between 17 and 100ms, the unit quickly responds to signals, giving you efficient appliance management. Sudden movement is no match for the secure screw conductor terminals. Overloads are taken care of, as the contactor's built-in surge protection shuts faults down as soon as they up to cut the risk of machine damage.
Features & Benefits
• Snap-on rail mounting for tool-free installation
• Handles up to 1200 operations an hour, tackling demanding control applications
• Compact dimensions of 55 (W) x 125.5 (H) x 111mm (D) to slip into hard-working cabinets
• 3-pole design for compatibility with single-phase and 3-phase supplies
• Labelled terminals clearly identify connections for easy wiring
• Handles up to 1200 operations an hour, tackling demanding control applications
• Compact dimensions of 55 (W) x 125.5 (H) x 111mm (D) to slip into hard-working cabinets
• 3-pole design for compatibility with single-phase and 3-phase supplies
• Labelled terminals clearly identify connections for easy wiring
Applications
• Automotive industry
• Lighting systems
• Shipping and logistics hubs
• Lighting systems
• Shipping and logistics hubs
What's the difference between a relay and a contactor?
A relay is a switch that moves its contacts when a current runs through it. While a contactor like this works similarly to a relay, it switches larger loads and usually comes with extra features, such as overload protection for safe handling.
