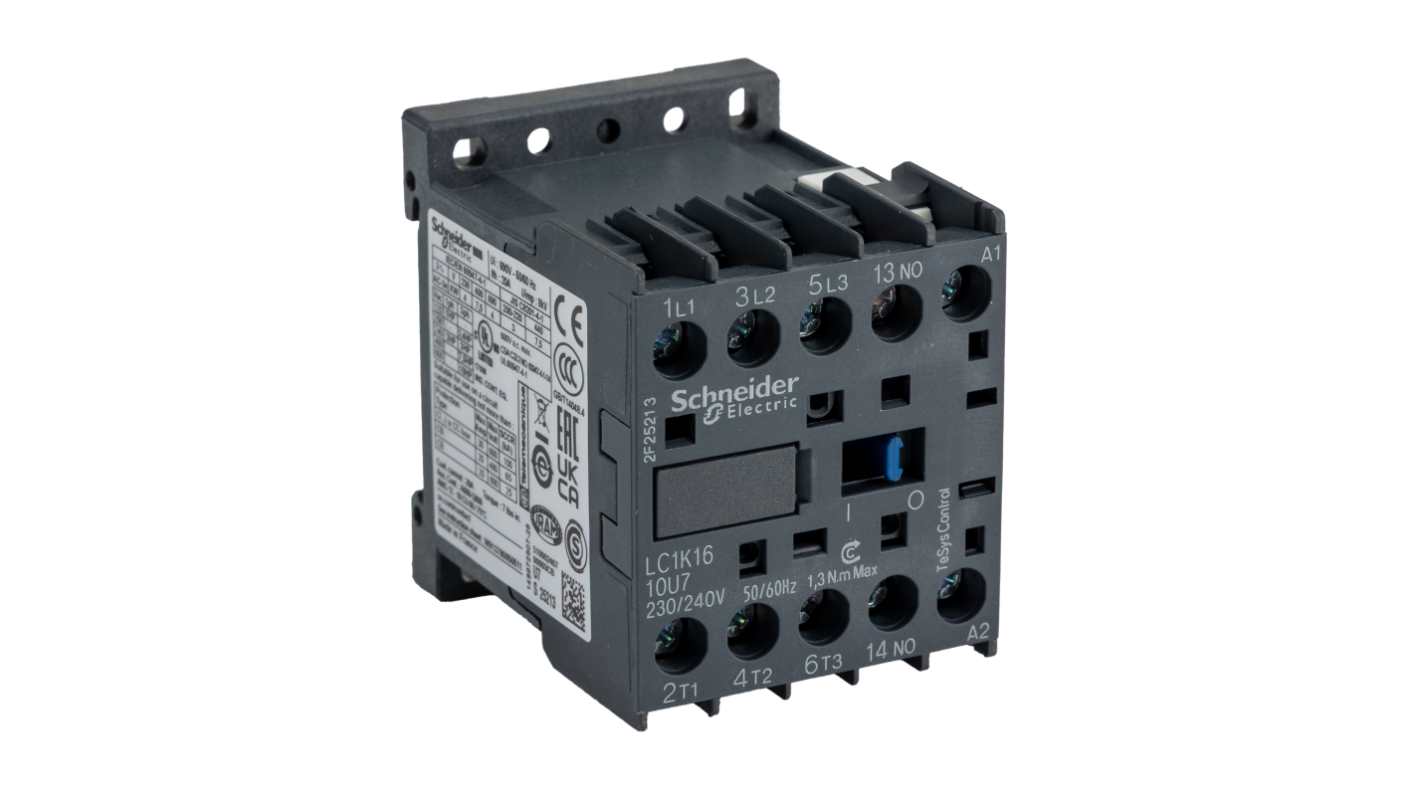

Schneider Electric TeSys K LC1K Contactor, 230 V ac Coil, 3-Pole, 16 A, 3NO, 690 V ac
- RS Stock No.:
- 744-7730
- Mfr. Part No.:
- LC1K1610U7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£47.70
(exc. VAT)
£57.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 62 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.70 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 744-7730
- Mfr. Part No.:
- LC1K1610U7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 16 A | |
| Series | LC1K | |
| Range | TeSys K | |
| Function | Reversing | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 1 | |
| Auxiliary Contact Configuration | 1NO | |
| Terminal Type | Screw | |
| Length | 45mm | |
| Width | 58mm | |
| Depth | 57mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 230 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 16 A | ||
Series LC1K | ||
Range TeSys K | ||
Function Reversing | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 1 | ||
Auxiliary Contact Configuration 1NO | ||
Terminal Type Screw | ||
Length 45mm | ||
Width 58mm | ||
Depth 57mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
- COO (Country of Origin):
- FR
Schneider Electric LC1K Series Contactor, 240V AC Coil Voltage, 3 Pole Configuration - LC1K1610U7
This contactor is designed for motor control applications, providing reliable performance in various environments. The device operates at a coil voltage of 240V AC and features three poles for efficient operation. With compact dimensions of 58mm in width, 45mm in length, and 57mm in depth, it is suitable for DIN rail mounting.
Features & Benefits
• Operates effectively in motor control applications up to 16A
• Voltage rating of 690V AC ensures high operational reliability
• Auxiliary contact included for added functionality
• Extended temperature range of -25°C to +50°C ensures versatility
• Fast operating time of 10-20ms facilitates efficient control
• Screw terminal design allows flexible connection options
• Voltage rating of 690V AC ensures high operational reliability
• Auxiliary contact included for added functionality
• Extended temperature range of -25°C to +50°C ensures versatility
• Fast operating time of 10-20ms facilitates efficient control
• Screw terminal design allows flexible connection options
Applications
• Used for controlling AC motors in industrial settings
• Ideal for reversing requiring precise control
• Suitable for installations with varying environmental conditions
• Integrates seamlessly into automation and control systems
• Commonly employed in mechanical and electrical industry setups
• Ideal for reversing requiring precise control
• Suitable for installations with varying environmental conditions
• Integrates seamlessly into automation and control systems
• Commonly employed in mechanical and electrical industry setups
What overload capacity does this contactor have when operating within its specifications?
The rated operational current is 16A at temperatures below 60°C, with making capacities reaching 160A for power circuits, ensuring it can handle significant loads effectively.
How does this device perform under diverse environmental conditions?
This contactor operates efficiently in a broad ambient temperature range, from -25°C to +50°C, making it suitable for various adverse conditions.
What types of connection configurations are available with this product?
It features screw clamp terminals that accommodate both solid and flexible cables, providing flexible wiring options for different applications and ease of installation.
Is this contactor suitable for use in applications with high inrush currents?
Yes, the device can manage inrush currents effectively, with a making capacity of 160A for power circuits, allowing it to handle the demands of compressor and start-up loads efficiently.
