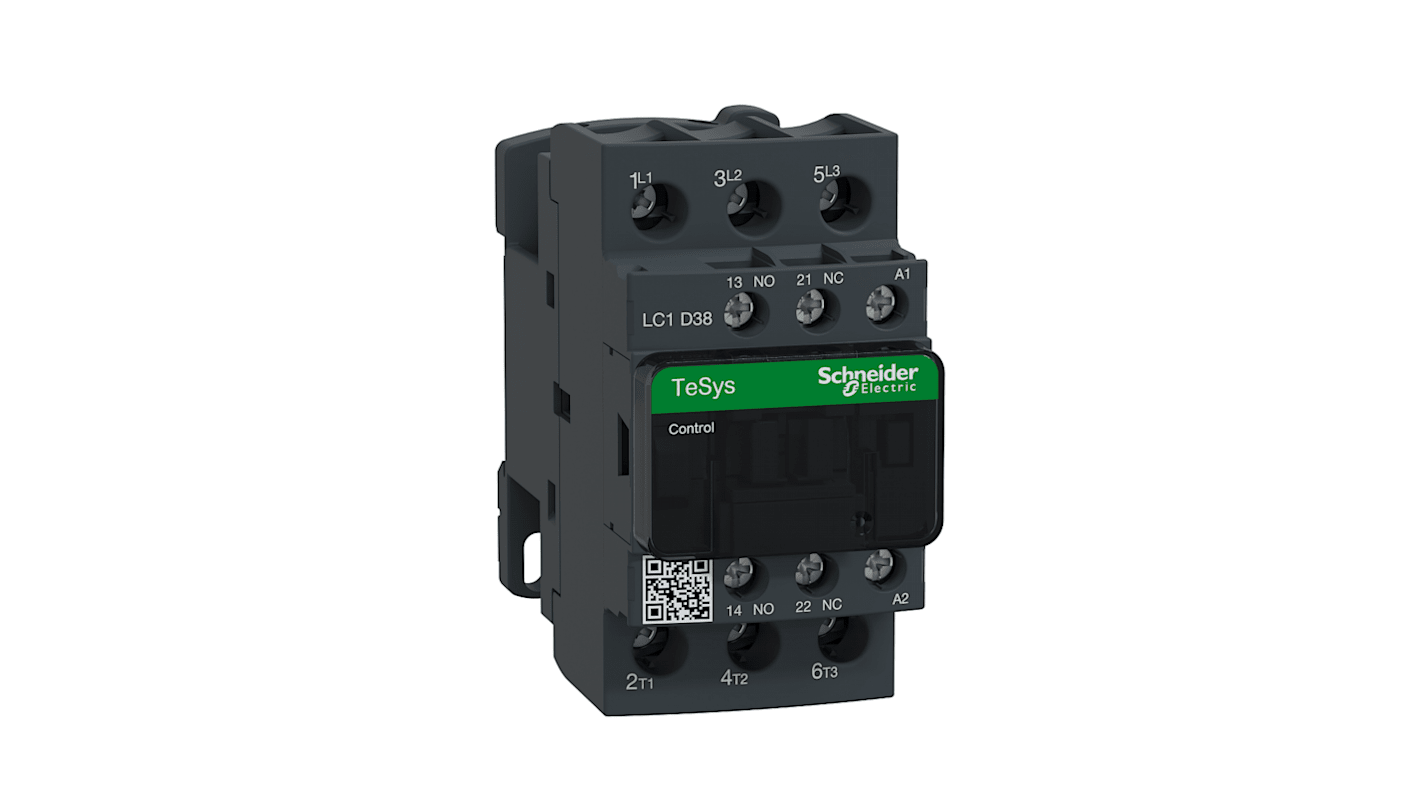

Schneider Electric TeSys D LC1D Contactor, 240 V ac Coil, 3-Pole, 38 A, 18.5 kW, 3NO, 690 V ac/dc

RS Stock No.:: 744-7437
Mfr. Part No.:: LC1D38U7
Brand:: Schneider Electric

Schneider Electric TeSys D LC1D Contactor, 240 V ac Coil, 3-Pole, 38 A, 18.5 kW, 3NO, 690 V ac/dc

Price Each

£146.72

(exc. VAT)

£176.06

(inc. VAT)

3 In stock - FREE next working day delivery available*

1 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£146.72

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 744-7437
Mfr. Part No.:: LC1D38U7
Brand:: Schneider Electric

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric LC1D Series Contactor, 3NO Configuration, 3 Pole - LC1D38U7

This Schneider Electric TeSys D contactor is a high quality Electrical device designed for use in automation, electronics, and mechanical industries. With a coil voltage of 230V and a contact current rating of 38A, this contactor offers exceptional performance and reliability.

Features & Benefits

• Auxiliary contacts configuration with 1NO + 1NC for enhanced connectivity options
• Green Premium verification for sustainable and environmentally friendly operation
• 690V contacts voltage rating ensures compatibility with various power circuits
• LC1D series design provides compatibility with other TeSys D products
• Screw terminal type for easy and secure connection

Applications

• Ideal for use in resistive load and motor control applications
• Suitable for AC-4, AC-1, and AC-3 utilisation categories
• Perfect for power circuits with rated operational voltage up to 690V AC
• Reliable choice for both single-phase and three-phase motors

Can it handle a contact current rating of 38A?

Yes, the Schneider Electric TeSys D contactor is designed to handle a contact current rating of 38A efficiently.

Will it work with power circuits up to 690V AC?

Yes, the contact voltage rating of 690V makes it compatible with various power circuit configurations.

Can it be used in both AC-3 and AC-4 utilisation categories?

Yes, this contactor is suitable for AC-3 and AC-4 utilisation categories, offering versatility in applications.

Does it come with an auxiliary contact configuration?

Yes, the contactor features an auxiliary contact configuration with 1 normally open (NO) and 1 normally closed (NC) contact for added flexibility.

Attribute	Value
Coil Voltage	240 V ac
Number of Poles	3
Contact Voltage Rating	690 V ac/dc
Contact Current Rating	38 A
Series	LC1D
Power Rating	18.5 kW
Range	TeSys D
Function	Reversing
Normal State Configuration	3NO
Auxiliary Contact Configuration	1NO + 1NC
Number Of Auxiliary Contacts	2
Terminal Type	Screw
Length	85mm
Width	45mm
Depth	92mm
Better World Verification	Green Premium
Better World Product	Yes
Pole and Throw Configuration	3P
Mounting Style	DIN Rail Mount
