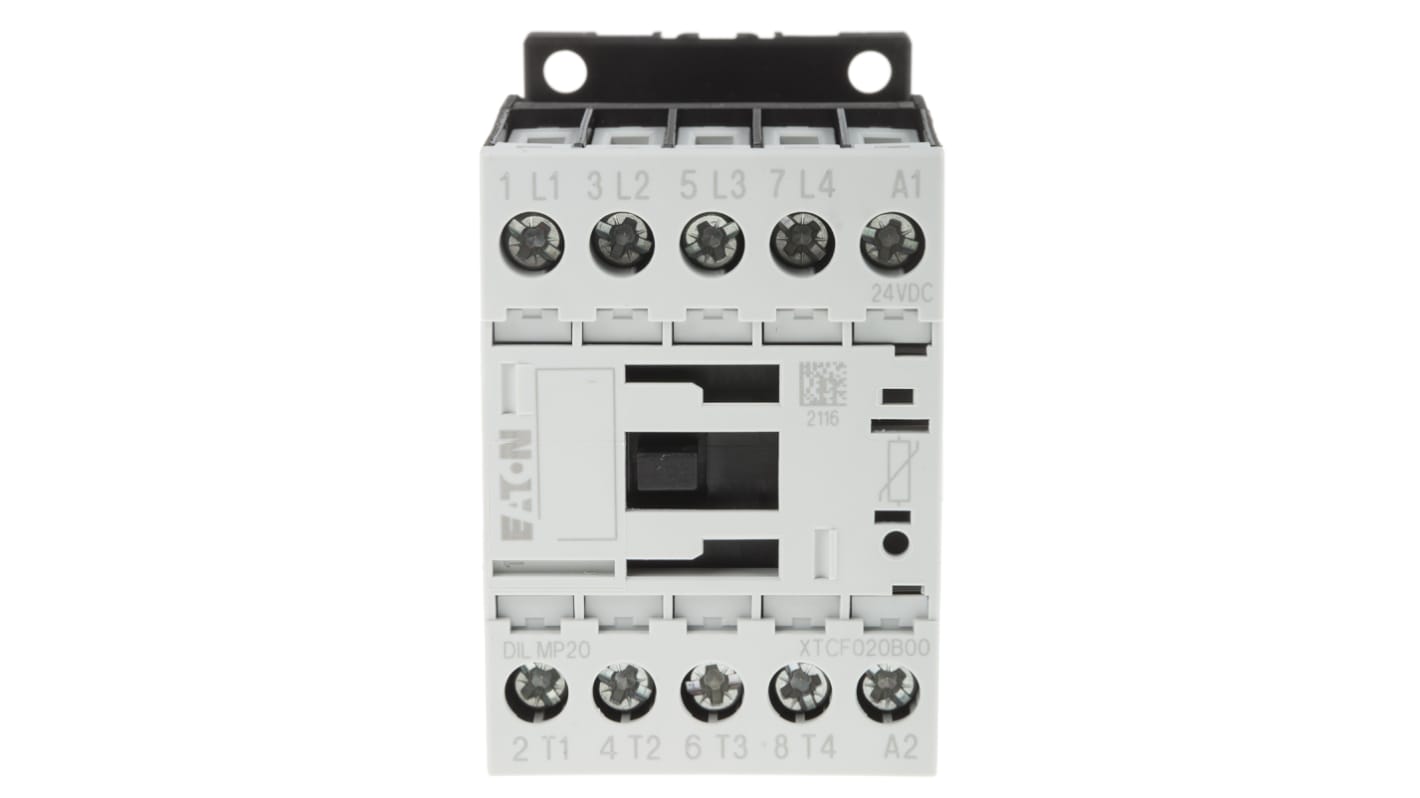

Eaton xStart Contactor, 24 V dc Coil, 4-Pole, 20 A, 5.5 kW, 4NO, 400 V ac
- RS Stock No.:
- 743-4958
- Mfr. Part No.:
- 276985 DILMP20(24VDC)
- Brand:
- Eaton
Subtotal (1 unit)*
£63.46
(exc. VAT)
£76.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 999,999,977 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £63.46 |
*price indicative
- RS Stock No.:
- 743-4958
- Mfr. Part No.:
- 276985 DILMP20(24VDC)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 24 V dc | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 400 V ac | |
| Contact Current Rating | 20 A | |
| Range | xStart | |
| Power Rating | 5.5 kW | |
| Normal State Configuration | 4NO | |
| Number Of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Length | 68mm | |
| Width | 45mm | |
| Depth | 117mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -25°C | |
| Pole and Throw Configuration | 4P | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 24 V dc | ||
Number of Poles 4 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 20 A | ||
Range xStart | ||
Power Rating 5.5 kW | ||
Normal State Configuration 4NO | ||
Number Of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Length 68mm | ||
Width 45mm | ||
Depth 117mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
Pole and Throw Configuration 4P | ||
Eaton Contactor, M3.5 Screw Terminal Connection, 2.5mΩ Impedance Per Pole - DILM Series - 276985 DILMP20(24VDC)
Controlling powerful circuitry is a breeze with this 4-pole contactor from Eaton. By supplying it with 24V DC, it will open or close a connected circuit with a maximum voltage of 400V AC. As its lifespan is 10 million operations, rest assured this unit is very reliable. For electrical safety, it's designed to withstand impulse voltages of up to 8000V. Among applications that use contactors like this are electric motors, lights, capacitor banks and conveyors.
Features & Benefits
• 294g weight, so it doesn't put a strain on your mounting surface
• IP20 rating indicates protection against small tools larger than 12mm
• Diminutive size of 75 (L) x 45 (W) x 68mm (H), suitable for installation in tight work areas
• Performs up to 5000 operations per hour, so it's ideal for applications involving frequent usage
• IP20 rating indicates protection against small tools larger than 12mm
• Diminutive size of 75 (L) x 45 (W) x 68mm (H), suitable for installation in tight work areas
• Performs up to 5000 operations per hour, so it's ideal for applications involving frequent usage
What's the terminal capacity of this unit?
For flexibility, this component is designed to accept solid or stranded wires with a size ranging between 18 and 14AWG.
Does this device withstand tough conditions?
Yes. With an operating temperature range between -25°C and +60°C, this contactor holds its own in challenging work conditions.
Note
Eaton formerly known as Moeller
