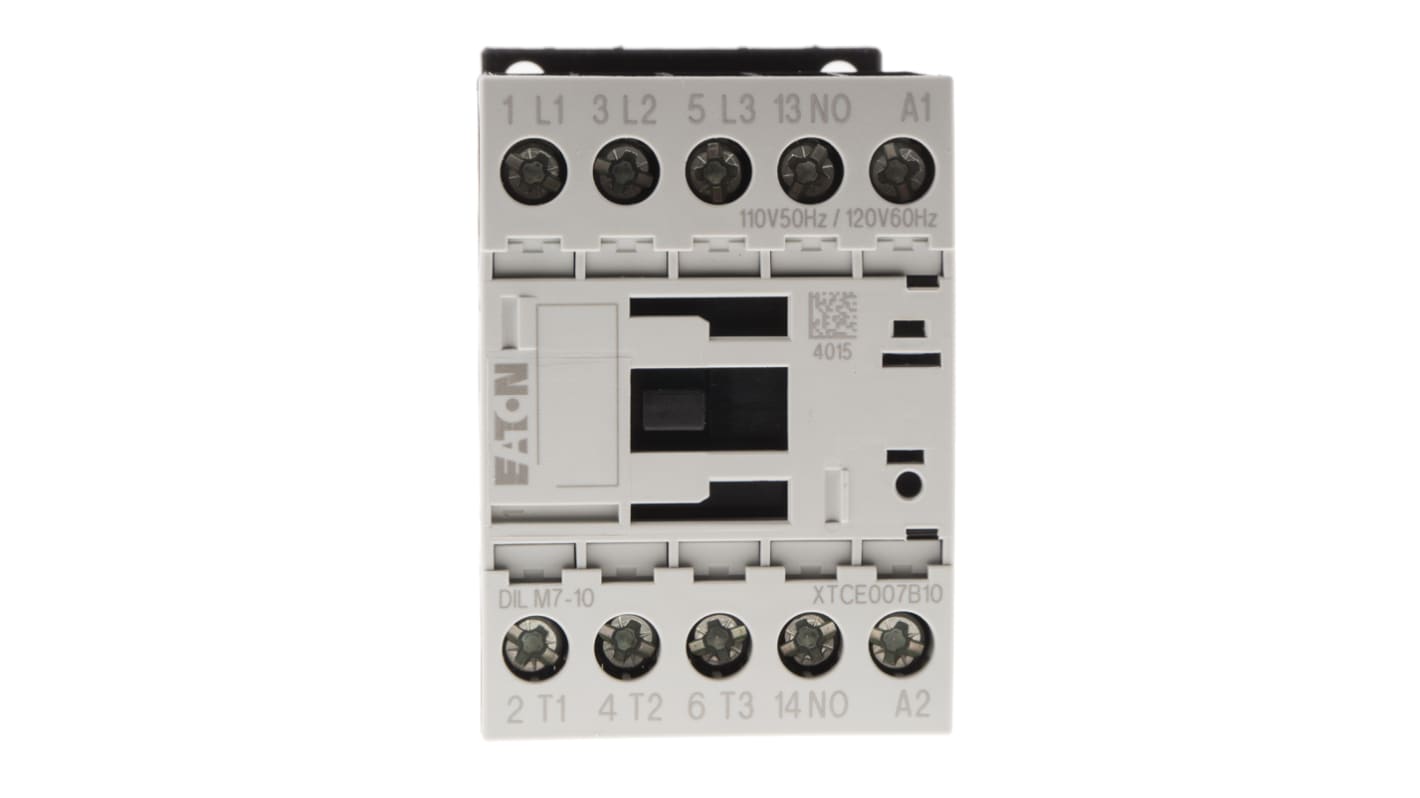

Eaton DILM Contactor, 110V ac Coil, 3-Pole, 7 A, 3 kW 110V ac, 3 NO, 400V ac
- RS Stock No.:
- 743-4891
- Mfr. Part No.:
- 276547 DILM7-10(110V50HZ,120V60HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£40.50
(exc. VAT)
£48.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 32 unit(s) shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.50 |
*price indicative
- RS Stock No.:
- 743-4891
- Mfr. Part No.:
- 276547 DILM7-10(110V50HZ,120V60HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 110V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 400V ac | |
| Contact Current | 7A | |
| Power Rating | 3kW | |
| Series | DILM | |
| Mount Type | DIN Rail | |
| Function | Motor Control, Resistive Load | |
| Normal State Configuration | 3 NO | |
| Auxiliary Contact Configuration | 1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw Clamp | |
| Contactor Application | Motor Control | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 110V ac | |
| Operational Current Ie | 22A | |
| Maximum Operating Temperature | 60°C | |
| Length | 68mm | |
| Standards/Approvals | EN 60947 | |
| Width | 45mm | |
| Depth | 117mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 110V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 400V ac | ||
Contact Current 7A | ||
Power Rating 3kW | ||
Series DILM | ||
Mount Type DIN Rail | ||
Function Motor Control, Resistive Load | ||
Normal State Configuration 3 NO | ||
Auxiliary Contact Configuration 1 NC | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw Clamp | ||
Contactor Application Motor Control | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 110V ac | ||
Operational Current Ie 22A | ||
Maximum Operating Temperature 60°C | ||
Length 68mm | ||
Standards/Approvals EN 60947 | ||
Width 45mm | ||
Depth 117mm | ||
Pole and Throw Configuration 3P | ||
Eaton Contactor, Shock-Resistant, -25°C to +60°C Operating Temperature Range - DILM Series - 276547 DILM7-10(110V50HZ,120V60HZ)
Trust this contactor from Eaton with the job of switching circuits in your electrical system. It's a three-pole type, so it's a smart choice for use with three-phase equipment. Thanks to its mechanical service life of 10 million cycles, you can rely on this device to keep pace with complex systems. A broad operating temperature range between -25°C and +60°C means it does its job without a hitch in challenging conditions. You'll find a contactor like this commonly used in HVAC systems and lighting networks.
Features & Benefits
• A closing delay of 15 to 21ms indicates this is a fast-acting option
• Integrated mechanical shock resistance to withstand demanding operations
• Minimal heat dissipation per pole of 0.1W for energy efficiency
• Easy-to-use screw terminals achieve a secure connection that withstands jostling and vibration
What IP rating does the contactor have?
It's IP20-rated, so you can be sure it offers insulation protection to shield users from electric shocks.
Is this device efficient?
Yes, as it has a mechanical operating frequency of 9000 operations per hour for reliable performance.
Note
Eaton formerly known as Moeller
