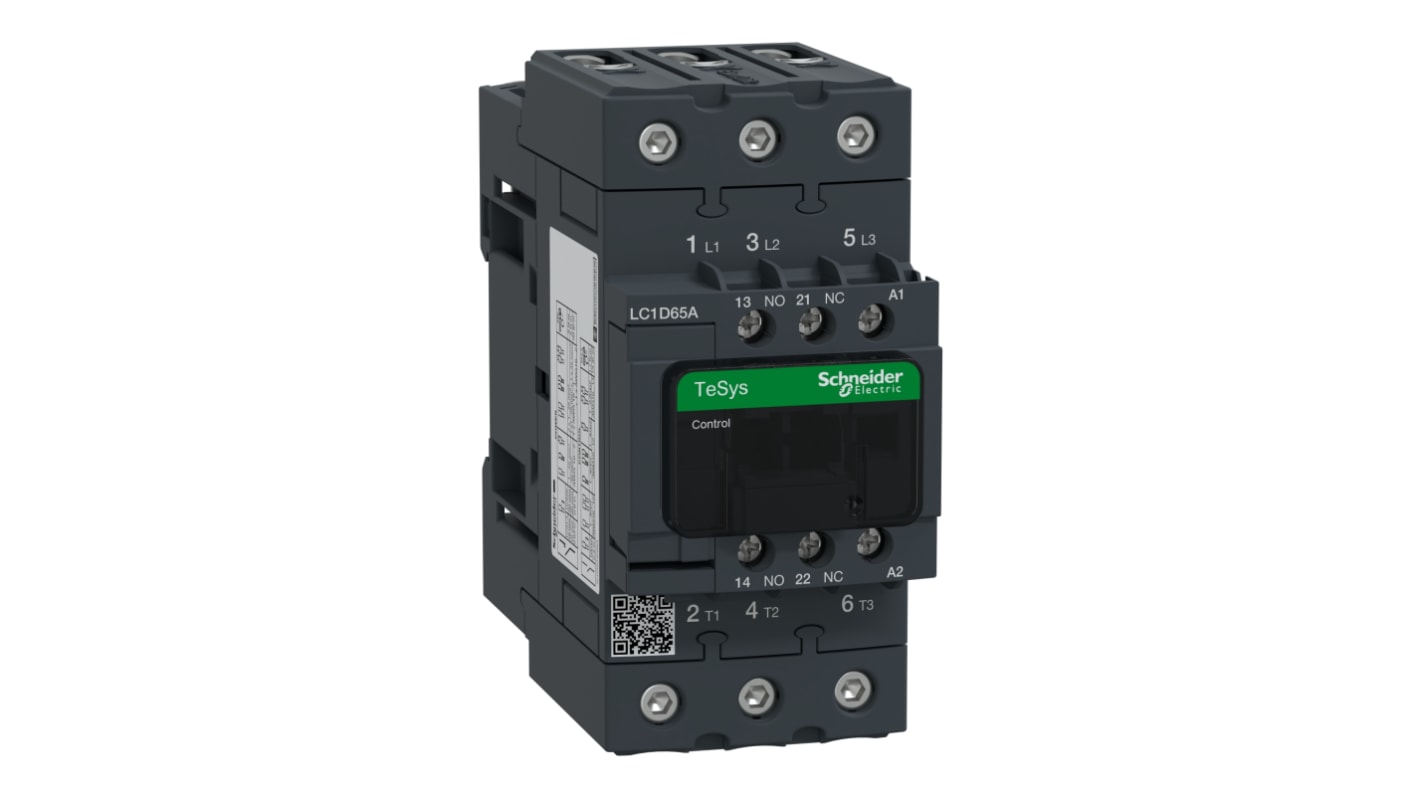

Schneider Electric TeSys D LC1D Contactor, 24 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 690 V ac
- RS Stock No.:
- 665-8071
- Distrelec Article No.:
- 304-01-274
- Mfr. Part No.:
- LC1D65AB7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£248.56
(exc. VAT)
£298.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 02 October 2025
- Plus 2 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £248.56 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 665-8071
- Distrelec Article No.:
- 304-01-274
- Mfr. Part No.:
- LC1D65AB7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 65 A | |
| Range | TeSys D | |
| Series | LC1D | |
| Power Rating | 30 kW | |
| Normal State Configuration | 3NO | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Everlink | |
| Length | 122mm | |
| Width | 55mm | |
| Depth | 120mm | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Pole and Throw Configuration | 3P | |
| Input Current | 5mA | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +60°C | |
| Mounting Style | Plate, Rail Mounting | |
| Control Voltage | 24 V ac | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 65 A | ||
Range TeSys D | ||
Series LC1D | ||
Power Rating 30 kW | ||
Normal State Configuration 3NO | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Everlink | ||
Length 122mm | ||
Width 55mm | ||
Depth 120mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Pole and Throw Configuration 3P | ||
Input Current 5mA | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +60°C | ||
Mounting Style Plate, Rail Mounting | ||
Control Voltage 24 V ac | ||
- COO (Country of Origin):
- ID
Schneider Electric Contactor, Double-Break Pole Type, 690V AC Contact Voltage Rating - TeSys Series - LC1D65AB7
Need to safely power up your high-energy industrial electronics? Get a load of this 3-pole contactor from Schneider Electric. Because it uses a low input voltage to switch a much higher voltage circuit of up to 690V AC, it keeps you safe from shocks in case of a fault. It's also designed to turn off and on repeatedly, so it's a practical choice for controlling power to processes that need to start and stop frequently. Robust screw-clamp terminals keep your connections secure, while Schneider Electric's handy Everlink system makes installation quick and easy. With a choice of DIN-rail or plate mounting, you can opt for the method that best suits your system.
Features & Benefits
• 30kW power rating means it's suitable for demanding applications
• Wide operating temperature range between -5°C and +60°C for compatibility with industrial conditions
• Touch-proof IP20 rating adds an extra degree of user protection
• Wide operating temperature range between -5°C and +60°C for compatibility with industrial conditions
• Touch-proof IP20 rating adds an extra degree of user protection
Applications
• Air conditioning units
• Conveyor belts
• Carpentry workshops
• Conveyor belts
• Carpentry workshops
What size is this device?
This compact contactor has dimensions of just 55 (W) x 120 (D) x 122mm (L), so you can slot it comfortably into confined spaces.
Approvals
UL, GOST, CSA, CCC.
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.
