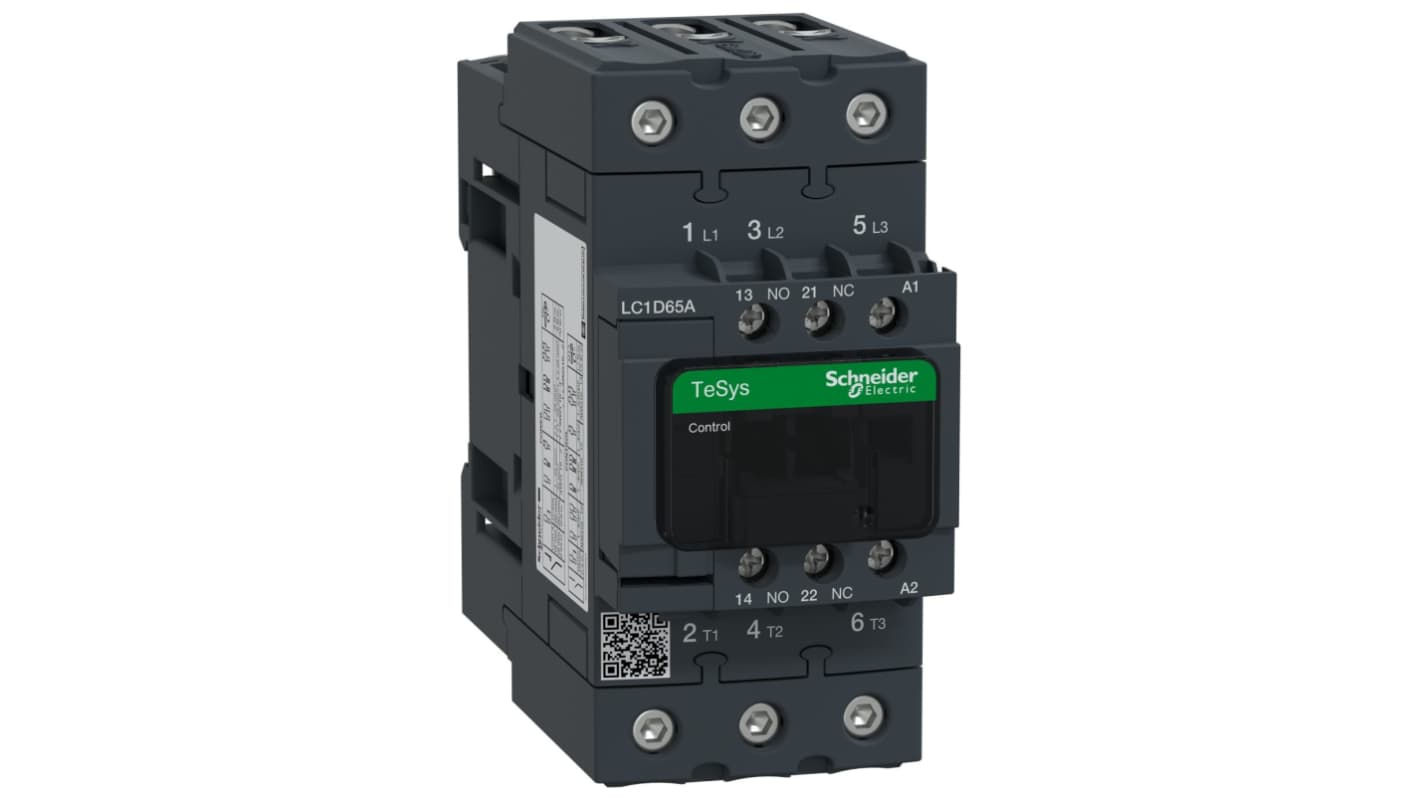

Schneider Electric TeSys D LC1D Contactor, 230 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 690 V ac
- RS Stock No.:
- 665-8062
- Distrelec Article No.:
- 301-50-643
- Mfr. Part No.:
- LC1D65AP7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£248.56
(exc. VAT)
£298.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 52 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £248.56 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 665-8062
- Distrelec Article No.:
- 301-50-643
- Mfr. Part No.:
- LC1D65AP7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 230 V ac | |
| Contactor Type | Safety Contactor | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 65 A | |
| Power Rating | 30 kW | |
| Series | LC1D | |
| Range | TeSys D | |
| Normal State Configuration | 3NO | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Width | 55mm | |
| Length | 122mm | |
| Depth | 120mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Minimum Operating Temperature | -40°C | |
| Control Voltage | 230 V ac | |
| Pole and Throw Configuration | 3P | |
| Maximum Operating Temperature | +60°C | |
| Mounting Style | DIN Rail | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 230 V ac | ||
Contactor Type Safety Contactor | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 65 A | ||
Power Rating 30 kW | ||
Series LC1D | ||
Range TeSys D | ||
Normal State Configuration 3NO | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Width 55mm | ||
Length 122mm | ||
Depth 120mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Minimum Operating Temperature -40°C | ||
Control Voltage 230 V ac | ||
Pole and Throw Configuration 3P | ||
Maximum Operating Temperature +60°C | ||
Mounting Style DIN Rail | ||
- COO (Country of Origin):
- ID
Schneider Electric LC1D Series Contactor, 230V AC Coil Voltage, 65A Current Rating - LC1D65AP7
This contactor is designed for industrial applications requiring reliable performance and safety assurance. The safety contactor operates at a coil voltage of 230V AC, with dimensions of 122mm in length, 55mm in width, and 120mm in depth. This versatile device offers functionality in a compact design suitable for mounting on a DIN rail.
Features & Benefits
• 3 poles with a contact configuration of 3NO for versatile use
• Rated current of 65A for optimal performance in demanding tasks
• Supports operational voltage of up to 690V AC for high-capacity applications
• Screw terminal design facilitates straightforward and secure connections
• Constructed for environments with temperatures ranging from -40 °C to +60 °C
• Compatible with various motor control applications, including resistive loads
• Rated current of 65A for optimal performance in demanding tasks
• Supports operational voltage of up to 690V AC for high-capacity applications
• Screw terminal design facilitates straightforward and secure connections
• Constructed for environments with temperatures ranging from -40 °C to +60 °C
• Compatible with various motor control applications, including resistive loads
Applications
• Utilised in motor control setups requiring 3-pole configurations
• Ideal for managing industrial resistive and inductive loads
• Used in automation systems needing robust and reliable switching solutions
• Suitable for requiring safety contactors
• Ideal for managing industrial resistive and inductive loads
• Used in automation systems needing robust and reliable switching solutions
• Suitable for requiring safety contactors
What is the contactor's maximum temperature withstand?
The contactor can operate within a temperature range from -40 °C to +60 °C, ensuring reliability in diverse environmental conditions.
How is the installation process for this equipment?
The device is designed for easy installation on a DIN rail, simplifying integration into existing systems.
What types of loads can be controlled using this contactor?
It is capable of controlling both resistive and inductive loads, making it ideal for a range of industrial applications.
What is the significance of the auxiliary contacts included?
The inclusion of 1NO + 1NC auxiliary contacts allows for additional control and monitoring functions, enhancing system responsiveness and flexibility.
How does this contactor ensure safety in industrial environments?
It meets stringent safety standards and provides effective isolation of electrical circuits, significantly reducing the risk of electrical faults.
Approvals
UL, GOST, CSA, CCC.
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.
