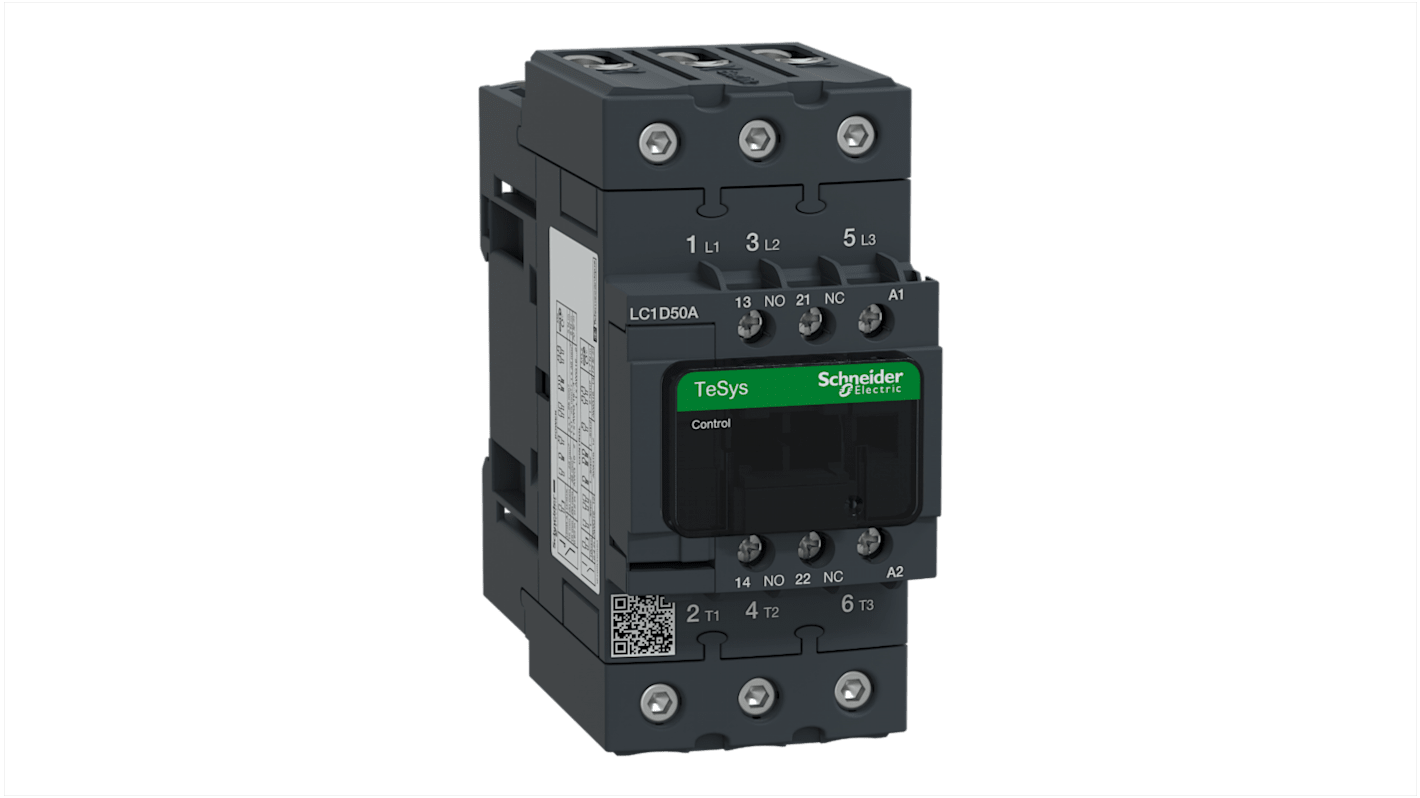

Schneider Electric LC1D Contactor, 48V ac Coil, 3-Pole, 50 A, 22 kW 48V ac, 3 NO, 690V ac
- RS Stock No.:
- 665-8043
- Mfr. Part No.:
- LC1D50AE7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£192.39
(exc. VAT)
£230.87
(inc. VAT)
FREE delivery for orders over £60.00
- Plus 10 unit(s) shipping from 25 May 2026
- Plus 2 unit(s) shipping from 25 May 2026
Units | Per unit |
|---|---|
| 1 + | £192.39 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 665-8043
- Mfr. Part No.:
- LC1D50AE7
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor | |
| Coil Voltage | 48V ac | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 50A | |
| Power Rating | 22kW | |
| Series | LC1D | |
| Mount Type | Plate, Rail Mount | |
| Function | Motor Control, Resistive Load | |
| Normal State Configuration | 3 NO | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Screw Clamp | |
| Control Circuit Voltage Uc | 48V ac | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 50A | |
| Contactor Application | Motor Control, Resistive Load | |
| Maximum Operating Temperature | 60°C | |
| Depth | 120mm | |
| Length | 122mm | |
| Width | 55mm | |
| Standards/Approvals | EAC, CCC, CSA, IEC, RoHS, UL | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor | ||
Coil Voltage 48V ac | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 50A | ||
Power Rating 22kW | ||
Series LC1D | ||
Mount Type Plate, Rail Mount | ||
Function Motor Control, Resistive Load | ||
Normal State Configuration 3 NO | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Screw Clamp | ||
Control Circuit Voltage Uc 48V ac | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 50A | ||
Contactor Application Motor Control, Resistive Load | ||
Maximum Operating Temperature 60°C | ||
Depth 120mm | ||
Length 122mm | ||
Width 55mm | ||
Standards/Approvals EAC, CCC, CSA, IEC, RoHS, UL | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- ID
Schneider Electric LC1D Series Contactor, 50A Contact Current, 48V Control Circuit Voltage Uc - LC1D50AE7
Features & Benefits
• 48V AC control circuit reduces Coil wiring complexity in industrial systems
• 3 NO main contacts provide straightforward three-phase switching
• 900A breaking capacity ensures robust fault interruption capability
• Screw clamp terminals enable secure connections for up to 35 mm2 conductors
• AC-3 and AC-3e ratings support starting and stopping of induction motors
Applications
• Ideal for control panels requiring rail or plate mounting
• used with resistive loads where defined AC breaking capacity is needed
• can be used in automation systems requiring auxiliary signalling contacts
