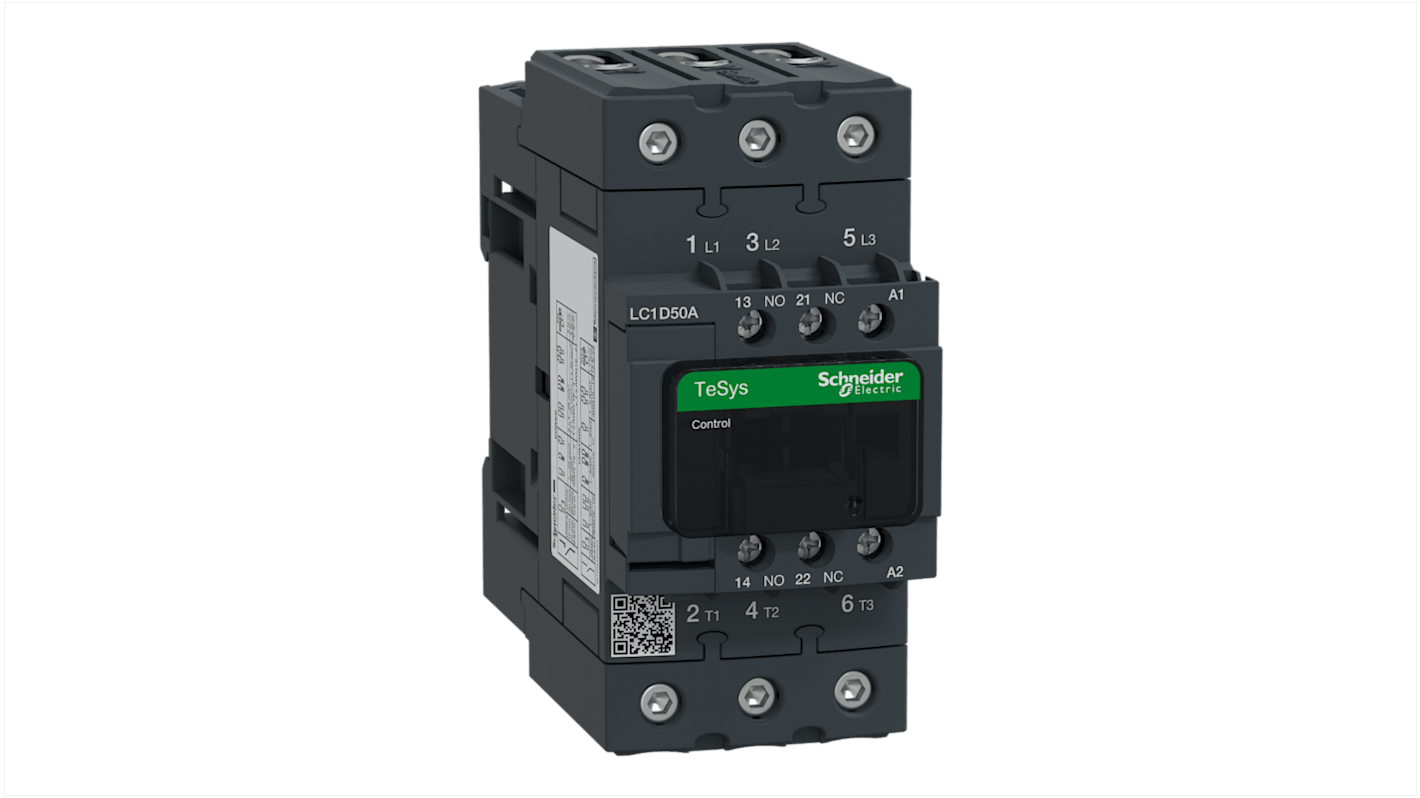

Schneider Electric TeSys D LC1D Contactor, 115 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 690 V ac
- RS Stock No.:
- 665-8040
- Mfr. Part No.:
- LC1D50AFE7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£192.39
(exc. VAT)
£230.87
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 14 November 2025
Units | Per unit |
---|---|
1 + | £192.39 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 665-8040
- Mfr. Part No.:
- LC1D50AFE7
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Coil Voltage | 115 V ac | |
Number of Poles | 3 | |
Contact Voltage Rating | 690 V ac | |
Contact Current Rating | 50 A | |
Series | LC1D | |
Power Rating | 22 kW | |
Range | TeSys D | |
Normal State Configuration | 3NO | |
Number Of Auxiliary Contacts | 2 | |
Terminal Type | Everlink | |
Width | 55mm | |
Length | 122mm | |
Depth | 120mm | |
Better World Verification | Green Premium | |
Better World Product | Yes | |
Minimum Operating Temperature | -5°C | |
Maximum Operating Temperature | +60°C | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Coil Voltage 115 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 50 A | ||
Series LC1D | ||
Power Rating 22 kW | ||
Range TeSys D | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Everlink | ||
Width 55mm | ||
Length 122mm | ||
Depth 120mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- FR
Schneider Electric TeSys LC1 - D Everlink Contactors
Features and Benefits
Highly reliable
Excellent quality
Easily installed accessories
TeSys contactors fitted with Everlink power terminals, with hexagon socket-head screw.
Allows for a single piece starter assembly with an Everlink breaker (vertical or side by side assembly).
22 → 30 kW motor control, AC3 category at 440 Vac.
Start control from 60 → 80 A for lighting and distribution
What does the utilisation category AC1 and AC3 mean for the TeSys contactors?
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
What accessories are available?
Front mount dust tight auxiliary contact blocks
Pneumatic time delay blocks
Transient voltage surge suppressors
Interface modules and electronic timers
Mechanical latching blocks
