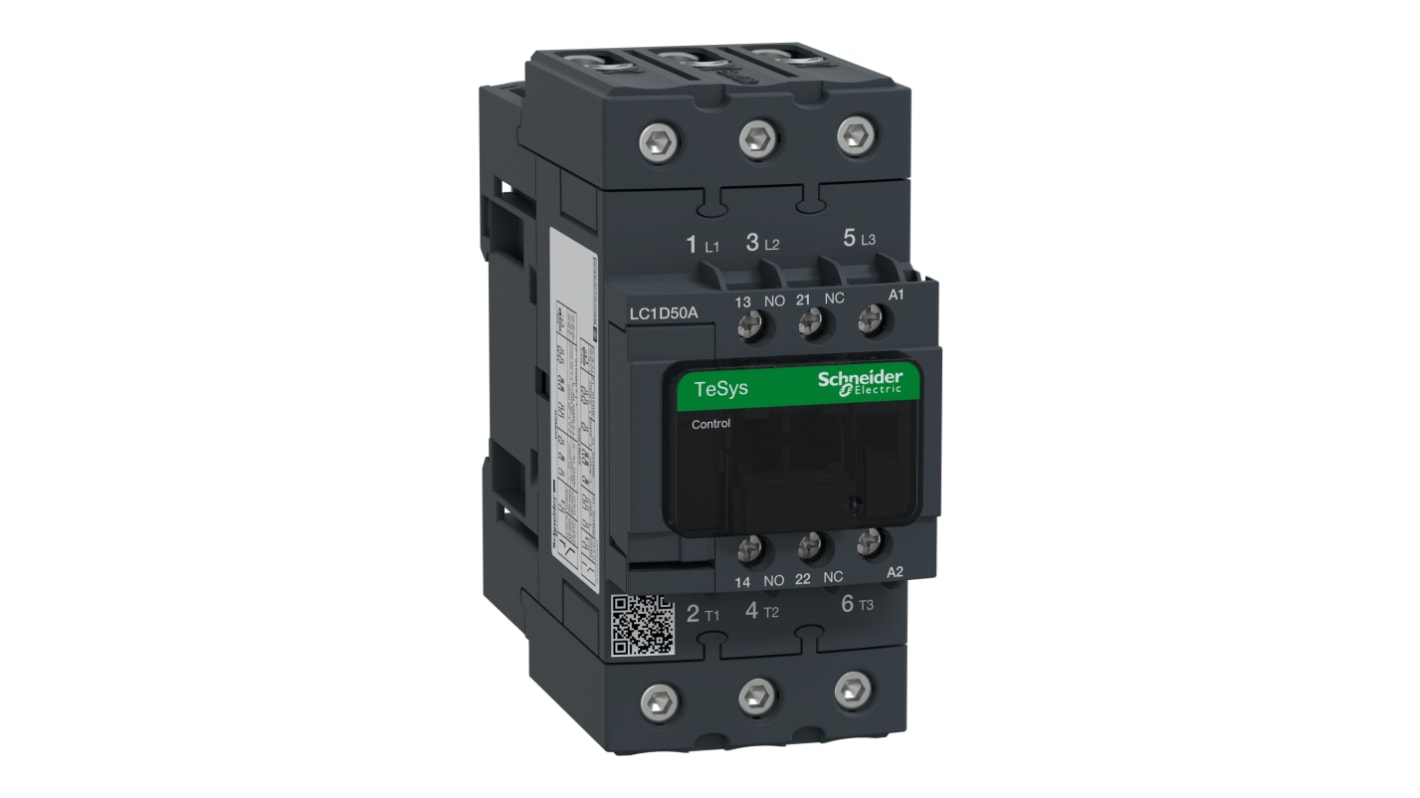

Schneider Electric TeSys D LC1D Contactor, 230 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 690 V ac
- RS Stock No.:
- 665-8028
- Distrelec Article No.:
- 301-50-642
- Mfr. Part No.:
- LC1D50AP7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£184.03
(exc. VAT)
£220.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 76 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £184.03 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 665-8028
- Distrelec Article No.:
- 301-50-642
- Mfr. Part No.:
- LC1D50AP7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 50 A | |
| Range | TeSys D | |
| Power Rating | 22 kW | |
| Series | LC1D | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Length | 122mm | |
| Width | 55mm | |
| Depth | 120mm | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +60°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 230 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 50 A | ||
Range TeSys D | ||
Power Rating 22 kW | ||
Series LC1D | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Length 122mm | ||
Width 55mm | ||
Depth 120mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- ID
Schneider Electric Contactor, 3 Poles, 22kW Power Rating - TeSys D Series - LC1D50AP7
Features & Benefits
• Packaged in recycled materials for a lighter carbon footprint
• Robust plastic housing is heat-resistant and unlikely to catch alight
• Includes a scannable QR code for quick access to data sheets and installation guides
• Multi-standard screw terminals are compatible with flat, Philips and Pozidriv screwdrivers for easy installation
• Robust plastic housing is heat-resistant and unlikely to catch alight
• Includes a scannable QR code for quick access to data sheets and installation guides
• Multi-standard screw terminals are compatible with flat, Philips and Pozidriv screwdrivers for easy installation
Applications
• Commercial appliances
• HVAC systems
• Office infrastructure
• Lighting systems
• HVAC systems
• Office infrastructure
• Lighting systems
How easy is it to connect this contactor to a circuit breaker?
This contactor has removable Everlink terminals that let you quickly link it vertically to a circuit breaker without an accessory. This means you can conveniently achieve wiring on the same rail in less than a minute.
Approvals
LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.
