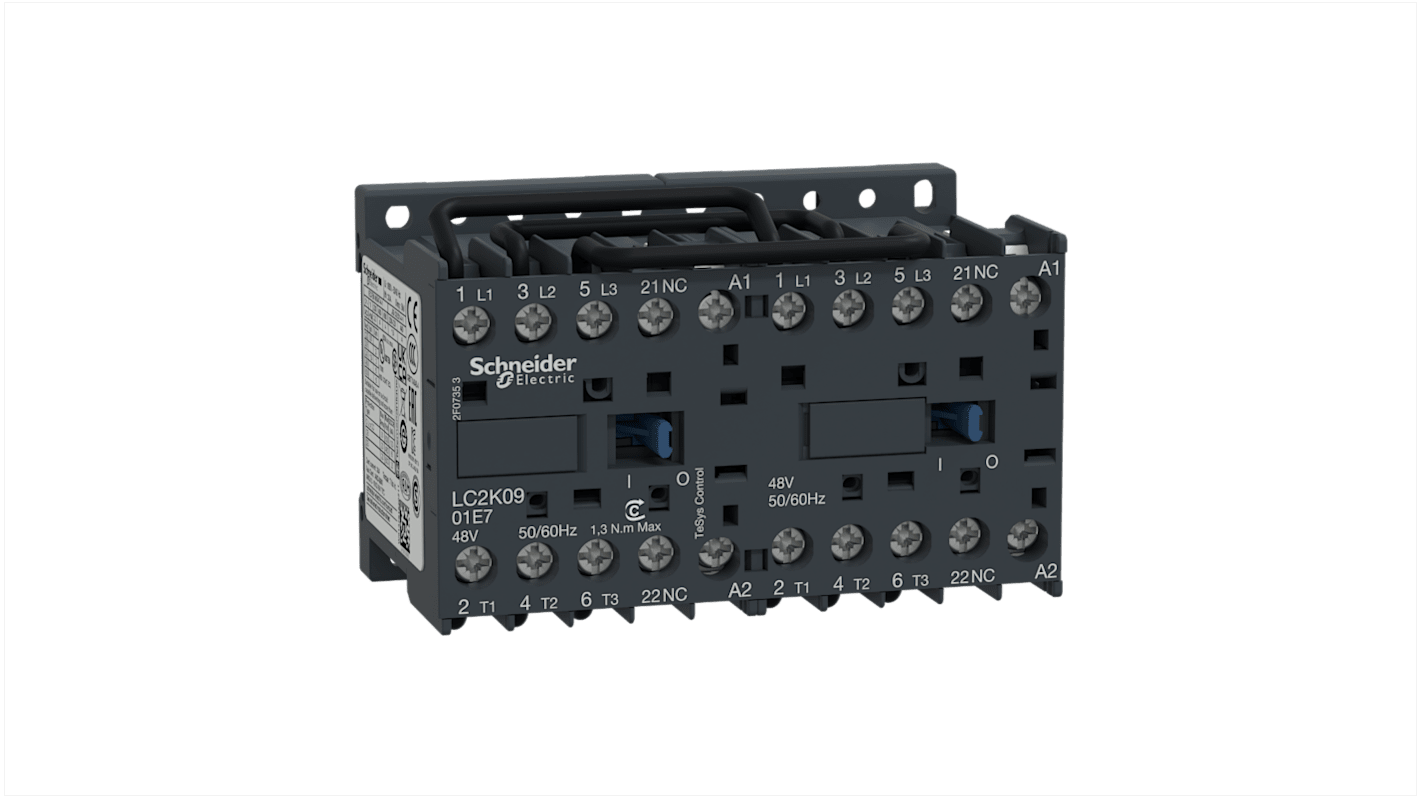

Schneider Electric TeSys K LC2K Reversing Contactor, 48 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac

RS Stock No.:: 609-7460
Mfr. Part No.:: LC2K0901E7
Brand:: Schneider Electric

Schneider Electric TeSys K LC2K Reversing Contactor, 48 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac

Price Each**

£88.07

(exc. VAT)

£105.68

(inc. VAT)

16 In stock - FREE next working day delivery available*

3 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£88.07

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 609-7460
Mfr. Part No.:: LC2K0901E7
Brand:: Schneider Electric

Schneider Electric TeSys K (LC2K) 3 Pole Reversing Contactors.

Schneider electric provide you with solutions covering everything from industrial infrastructure and building industries from basic machinery and more intricate process systems. The Schneider Electric range of reversing contactors also includes non-reversing contactors, relays and protection relays. The TeSys K range of contactors provides you with reversing and non-reversing contactors from 0.06 kW to 5.5 kW and up to 4 Pole Contactor relays. The range is endless with solutions for motor management systems, thermistor protection plus modular contactors. Provide ranges of products offering various options to suit your many requirements.

TeSys K reversing contactors provide a complete range plus include non-reversing contactors. The TeSys K contactors offer the best performance, compactness ratio all with seamless integration in required applications.

TeSys D is available as a reversing and non-reversing contactor.

TeSys B is a bar contactor up to 900 kW.

TeSys K contactors offered as reversing and non-reversing contactors.

TeSys GC and GY modular contactors and DIN rail mount contactors.

Series Features.

AC, DC, Low consumption voltage DC and silent control circuits available.

6 A, 9 A and 12 A current ratings available.

2.2 kw, 4.5 kw, 5.5 kW power applications in AC-3 and AC-4.

Screw clamp, Faston connectors. Spring terminals, Pins for PCB (printed circuit boards) available.

Applications.

Industry, Infrastructure, Building and many more.

Control systems.

Areas that are noise sensitive, disturbed mains supply, silent contactor.

Compatible with programmable controller outputs, low consumption contactor.

Switching / switch contactor or coil relays.

Powering control and signalling equipment.

LC2K0901E7 TeSys K (LC2K) 3 Pole Reversing Contactor.

Motor control, Resistive load applications.

AC-4, AC-3, AC-1 Categories.

Comes pre-assembled with a reversing power Busbar.

Ue Rated Voltage Power circuit: 690 V AC 50/60 Hz, Signalling circuit: <= 690 V AC 50/60 Hz.

Ie Rated current 20 A (at <= 440 V AC AC-1 for power circuit, 16 A (at <= 440 V AC AC-3 for power circuit, 9 A at <= 440 V AC AC-3 for power circuit.

Motor power 2.2 KW at 220...230 V AC 50/60 Hz, 4 KW at 380...415 V AC 50/60 Hz, 4 KW at 440 V AC 50/60 Hz, 4 KW at 480 V AC 50/60 Hz, 4 KW at 500...600 V AC 50/60 Hz, 4 KW at 660...690 V AC 50/60 Hz.

Circuit AC at 50/60 Hz.

Overvoltage category III.

Breaking Capacity 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947.

Mechanical interlocking.

Screw clamp terminals.

Mounting – DIN Rail, Plate.

IP20 to VDE 0106.

Approvals

UL, CSA.

Standards

VDE 0660, BS 5424, IEC 60947, NF C 63-110.

Attribute	Value
Coil Voltage	48 V ac
Number of Poles	3
Contact Voltage Rating	690 V ac
Contact Current Rating	9 A
Range	TeSys K
Series	LC2K
Power Rating	4 kW
Function	Reversing
Normal State Configuration	3NO
Auxiliary Contact Configuration	1NC
Number Of Auxiliary Contacts	1
Terminal Type	Screw
Length	58mm
Width	90mm
Depth	57mm
Better World Verification	Green Premium
Better World Product	Yes
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-25°C
