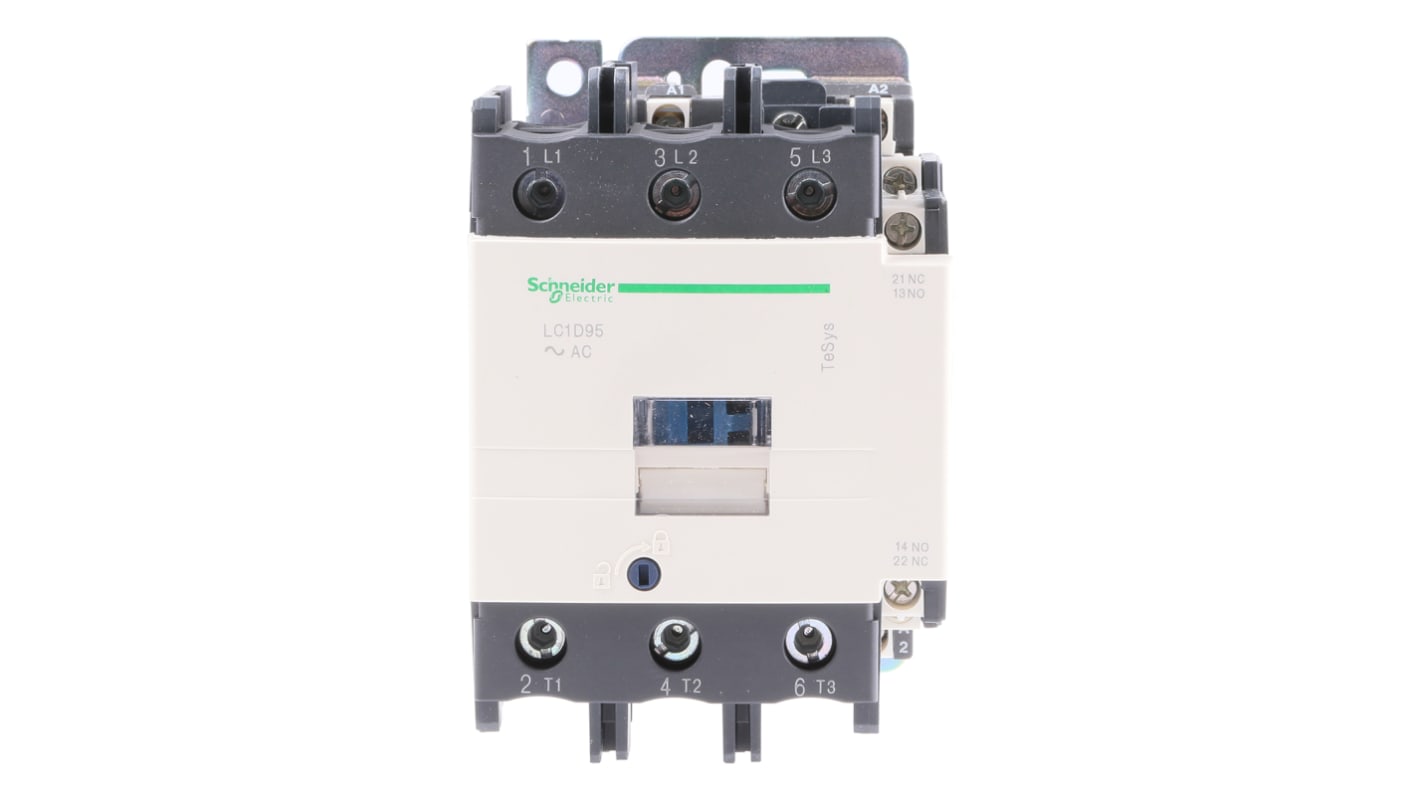

Schneider Electric TeSys D LC1D Contactor, 115 V ac Coil, 3-Pole, 95 A, 45 kW, 3NO, 1 kV ac
- RS Stock No.:
- 608-9857
- Mfr. Part No.:
- LC1D95FE7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£415.87
(exc. VAT)
£499.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £415.87 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 608-9857
- Mfr. Part No.:
- LC1D95FE7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 115 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 1 kV ac | |
| Contact Current Rating | 95 A | |
| Series | LC1D | |
| Power Rating | 45 kW | |
| Range | TeSys D | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Width | 85mm | |
| Length | 127mm | |
| Depth | 125mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -5°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 115 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 1 kV ac | ||
Contact Current Rating 95 A | ||
Series LC1D | ||
Power Rating 45 kW | ||
Range TeSys D | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Width 85mm | ||
Length 127mm | ||
Depth 125mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -5°C | ||
- COO (Country of Origin):
- CZ
Schneider Electric Contactor, 8kV Impulse Voltage, 3600cyc/h Operating Rate - TeSys D Series - LC1D95FE7
This contactor from Schneider Electric is a safe switching solution for your power or control circuits. Its high-rated current of 125A at 690V AC, as well as its compatibility with resistive loads, make it a practical choice for managing heavy load-drawing applications in industrial workspaces. The unit’s 3NO contacts are spring-loaded, so you can be assured of fast switching action that closes the contacts promptly to energise your circuit. Overvoltage protection safeguards both equipment and people from potential harm caused by electrical faults. As this contactor has a broad operating altitude range between 0 and 3000m above sea level, it’s a versatile option that’s suitable for demanding locations.
Features & Benefits
• Offers vibration and shock resistance to help prevent misalignment, fault or failure
• Mechanical durability rating of 4Mcycles means you can be sure of long-term performance
• Withstands impulse voltages up to 8kV for effective protection against surges
• Mechanical durability rating of 4Mcycles means you can be sure of long-term performance
• Withstands impulse voltages up to 8kV for effective protection against surges
Applications
• Motor starting
• Capacitor banks
• Lighting systems
• Capacitor banks
• Lighting systems
How do I mount this contactor?
Mounting this component is simple – just clip it onto a standard 35mm DIN rail or screw it onto a plate.
