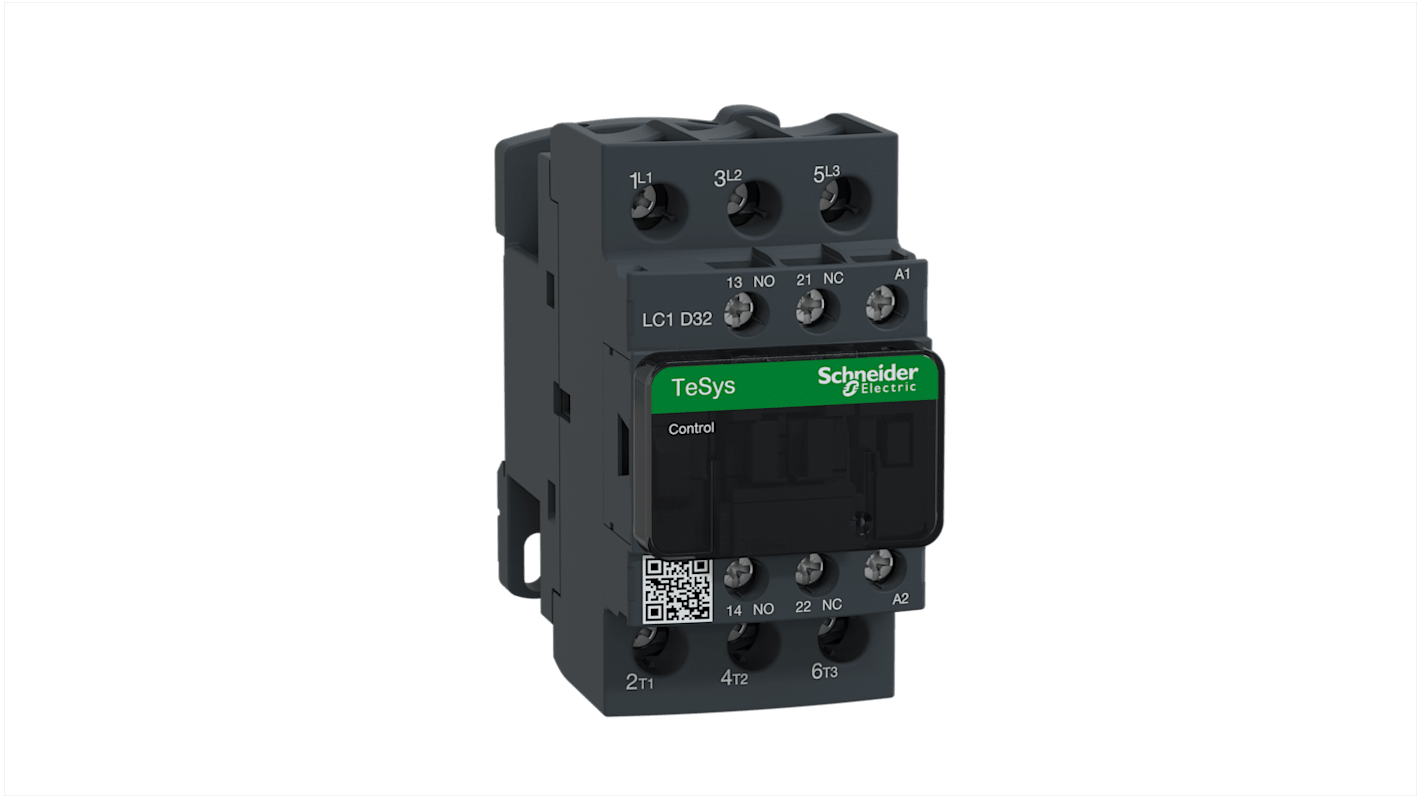

Schneider Electric TeSys D LC1D Contactor, 220 V ac Coil, 3-Pole, 32 A, 15 kW, 3NO, 690 V ac
- RS Stock No.:
- 608-9649
- Distrelec Article No.:
- 301-50-636
- Mfr. Part No.:
- LC1D32M7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£123.09
(exc. VAT)
£147.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 03 October 2025
- Plus 8 unit(s) shipping from 16 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £123.09 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£86.04
(exc. VAT)
£103.25
(inc. VAT)
- RS Stock No.:
- 608-9649
- Distrelec Article No.:
- 301-50-636
- Mfr. Part No.:
- LC1D32M7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 220 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 32 A | |
| Range | TeSys D | |
| Series | LC1D | |
| Power Rating | 15 kW | |
| Function | 3-Phase Motor Monitoring | |
| Normal State Configuration | 3NO | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 85mm | |
| Depth | 90mm | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Maximum Operating Temperature | +60°C | |
| Pole and Throw Configuration | 3P | |
| Minimum Operating Temperature | -5°C | |
| Mounting Style | DIN Rail | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 220 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 32 A | ||
Range TeSys D | ||
Series LC1D | ||
Power Rating 15 kW | ||
Function 3-Phase Motor Monitoring | ||
Normal State Configuration 3NO | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 85mm | ||
Depth 90mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Maximum Operating Temperature +60°C | ||
Pole and Throw Configuration 3P | ||
Minimum Operating Temperature -5°C | ||
Mounting Style DIN Rail | ||
Schneider Electric LC1D32M7
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). They can be used to create motor starters for almost any type of application. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 220 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.83 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Features & Benefits
• 3 pole contactor for versatile applications
• Screw terminal type for easy and secure connections
• Wide operating temperature range from 5°C to +60°C
• AC 3 utilisation category for efficient power circuit operation
• Compact design with dimensions of 85mm x 45mm x 90mm
• High contacts voltage rating of 690V AC for enhanced safety
• Screw terminal type for easy and secure connections
• Wide operating temperature range from 5°C to +60°C
• AC 3 utilisation category for efficient power circuit operation
• Compact design with dimensions of 85mm x 45mm x 90mm
• High contacts voltage rating of 690V AC for enhanced safety
Applications
• Ideal for motor control in industrial machinery
• Suitable for use in HVAC systems for reliable operation
• Perfect for lighting control applications in commercial buildings
• Can be used in pumps, fans, and compressors for efficient operation
• Suitable for use in HVAC systems for reliable operation
• Perfect for lighting control applications in commercial buildings
• Can be used in pumps, fans, and compressors for efficient operation
Can it handle high power ratings?
The Schneider Electric contactor is designed to handle power ratings up to 15kW, making it suitable for a wide range of applications.
Will it ensure safe and reliable operation?
Yes, the contactor features a high contact voltage rating of 690V AC and is designed to provide safe and reliable performance in various environments.
Can it be used in harsh operating conditions?
The contactor is built to withstand temperatures ranging from -5°C to +60°C, making it suitable for use in a variety of harsh operating conditions.
