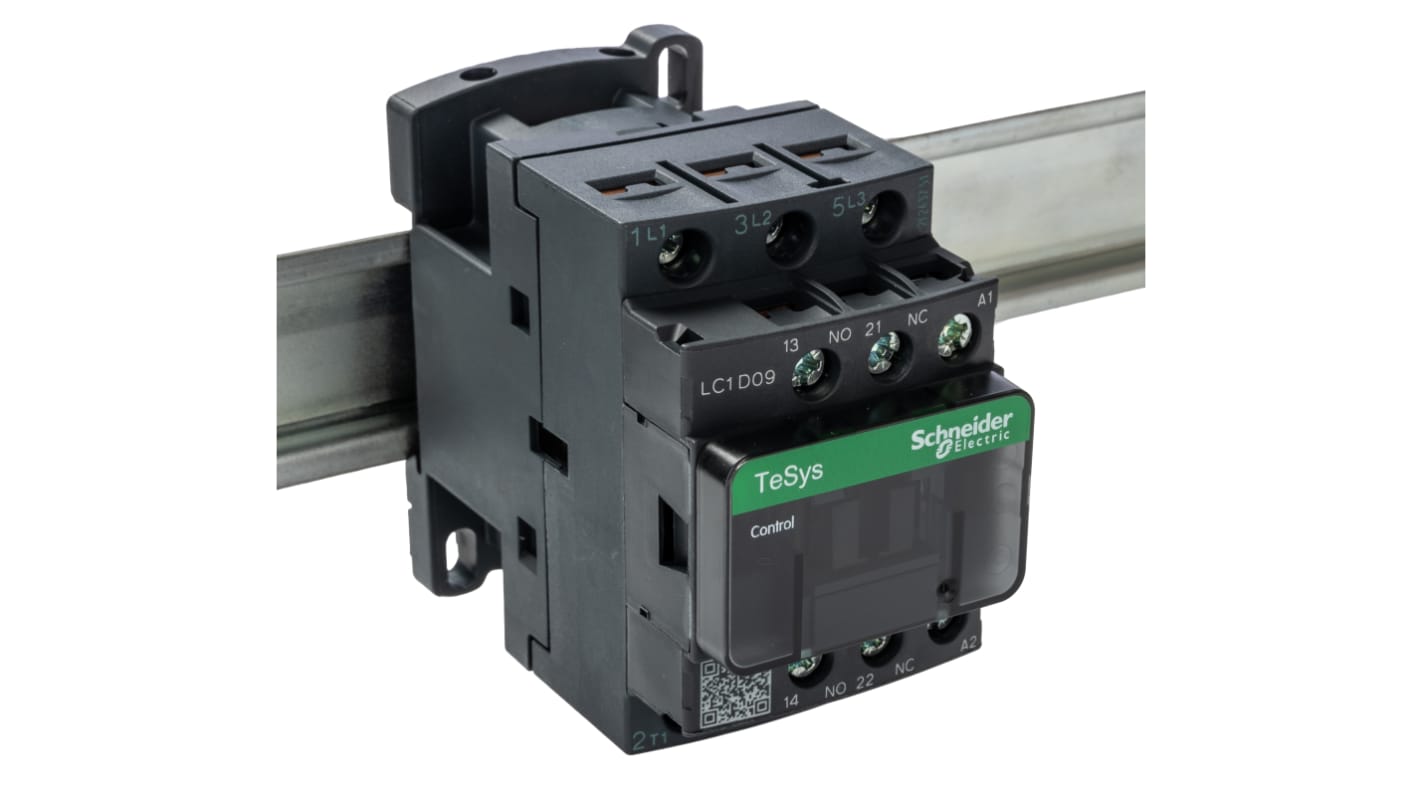

Schneider Electric LC1D Series Contactor, 48 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac
- RS Stock No.:
- 608-9318
- Mfr. Part No.:
- LC1D09E7
- Brand:
- Schneider Electric
32 In stock - FREE next working day delivery available
18 available from Europe for delivery within 1 working day(s).
Added
Price Each
£42.92
(exc. VAT)
£51.50
(inc. VAT)
Units | Per unit |
1 + | £42.92 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 608-9318
- Mfr. Part No.:
- LC1D09E7
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Schneider Electric LC1D TeSys D Contactors
TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.
Features and Benefits
Built-in auxiliary contacts for added switching capability
Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
Can be panel mounted with screws or DIN Rail mounted
Bidirectional peak limiting diode suppressor to protect the coil
Easily installed accessories
Flexible control circuit to suit a wide range of applications
Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
Can be panel mounted with screws or DIN Rail mounted
Bidirectional peak limiting diode suppressor to protect the coil
Easily installed accessories
Flexible control circuit to suit a wide range of applications
What does the utilisation category AC1 and AC3 mean for the TeSys contactors?
Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
- AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
- AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
What accessories are available?
Auxiliary contact blocks with serrated wiping action
Front mount dust tight auxiliary contact blocks
Pneumatic time delay blocks
Transient voltage surge suppressors
Interface modules and electronic timers
Mechanical latching blocks
Front mount dust tight auxiliary contact blocks
Pneumatic time delay blocks
Transient voltage surge suppressors
Interface modules and electronic timers
Mechanical latching blocks
Is the TeSys D range a double break pole type contactor?
Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.
Schneider Electric Contactor, 6kV AC Impulse Withstand Voltage, IP20 Rating - LC1D Series - LC1D09E7
Need a speedy and safe way of switching industrial circuits on and off? Opt for this contactor from Schneider Electric. As it meets utilisation categories up to AC-3, you can trust it suits any resistive load and is a practical pick for motor control applications up to 9A/690V AC. It works rapidly to stop or start your circuit, helping to prevent electrical issues like arcing from posing a danger to you and your equipment. Thanks to its three poles, you can use this contactor with up to three bits of connected kit, so it's a good shout if you have multiple pumps or compressors to hook up.
Features & Benefits
• IP20 rating indicates there's no shock risk if you touch it with your fingers
• 6kV AC impulse withstand voltage means it protects you and your equipment from electrical surges
• DIN rail mounting style for easy snap-on installation with no need for tools
• 6kV AC impulse withstand voltage means it protects you and your equipment from electrical surges
• DIN rail mounting style for easy snap-on installation with no need for tools
Applications
• Industrial automation
• Lighting rigs
• Motor starting
• Lighting rigs
• Motor starting
What's the benefit of this contactor's low tightening torque?
Thanks to its low tightening torque of 1.7Nm, you'll find it's a piece of cake to wire up the screw clamp terminals by hand.
Specifications
Attribute | Value |
---|---|
Coil Voltage | 48 V ac |
Number of Poles | 3 |
Contact Voltage Rating | 690 V ac |
Contact Current Rating | 9 A |
Power Rating | 4 kW |
Series | LC1D |
Range | TeSys D |
Normal State Configuration | 3NO |
Number Of Auxiliary Contacts | 2 |
Auxiliary Contact Configuration | 1NO + 1NC |
Terminal Type | Screw |
Length | 77mm |
Width | 45mm |
Depth | 84mm |
Better World Verification | Green Premium |
Better World Product | Yes |
Maximum Operating Temperature | +60°C |
Mounting Style | DIN Rail Mount |
Minimum Operating Temperature | -5°C |
Control Voltage | 48 V ac |
Pole and Throw Configuration | 3P |
