Schneider Electric TeSyS CA Contactor, 48V ac Coil, 3-Pole, 10 A, 70 W 48V ac, 5 NO, 690V ac
- RS Stock No.:
- 608-7328
- Mfr. Part No.:
- CAD50E7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£47.80
(exc. VAT)
£57.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20 unit(s) shipping from 20 April 2026
- Plus 6 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.80 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 608-7328
- Mfr. Part No.:
- CAD50E7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 48V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 10A | |
| Power Rating | 70W | |
| Series | TeSyS CA | |
| Function | Motor Control | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 5 NO | |
| Auxiliary Contact Configuration | 1 NO | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 10A | |
| Contactor Application | Motor Control | |
| Control Circuit Voltage Uc | 48V ac | |
| Maximum Operating Temperature | 70°C | |
| Depth | 86mm | |
| Length | 77mm | |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC | |
| Width | 45mm | |
| Better World Product | Yes | |
| Pole and Throw Configuration | 5 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 48V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 10A | ||
Power Rating 70W | ||
Series TeSyS CA | ||
Function Motor Control | ||
Mount Type DIN Rail | ||
Normal State Configuration 5 NO | ||
Auxiliary Contact Configuration 1 NO | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 10A | ||
Contactor Application Motor Control | ||
Control Circuit Voltage Uc 48V ac | ||
Maximum Operating Temperature 70°C | ||
Depth 86mm | ||
Length 77mm | ||
Standards/Approvals UL, RoHS, IEC, EAC, CSA, CCC | ||
Width 45mm | ||
Better World Product Yes | ||
Pole and Throw Configuration 5 | ||
- COO (Country of Origin):
- FR

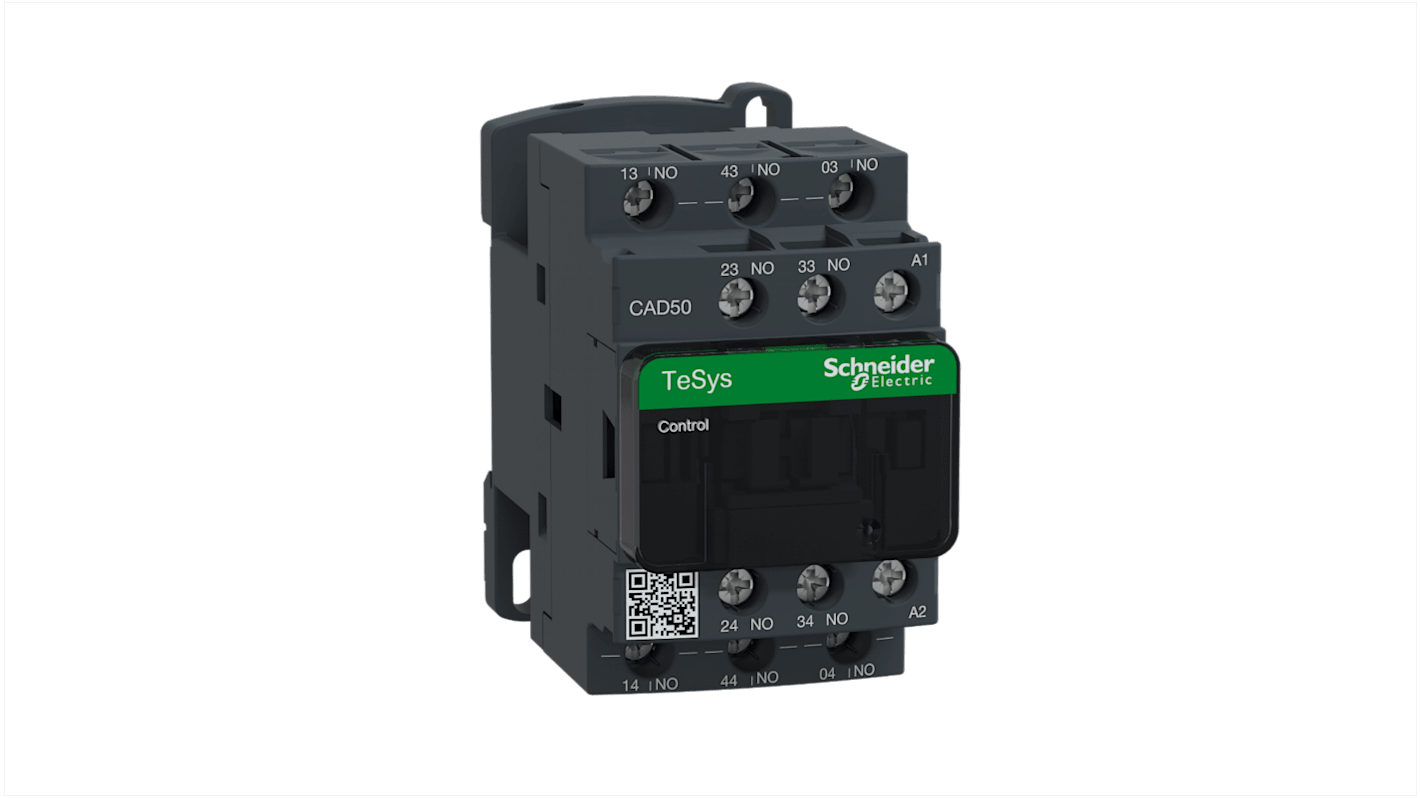

Schneider Electric CAD5 Series Contactor, 48V Coil Voltage, 10A Contact Current - CAD50E7
This contactor is a Compact control relay designed for industrial control circuits, offering three switching poles and an AC control Coil for reliable operation in automation and electrical installations. It is intended for panel or rail mounting and supports switching at high operational voltages for varied control tasks.
Features & Benefits
• 48V AC Coil ensures consistent actuation in AC control circuits
• Rated operational current 10A supports moderate load switching
• Up to 690V operational voltage for high-voltage control applications
• 5NO pole arrangement enables multiple normally open circuits
• Screw clamp terminals accept 1 to 4mm² conductors for secure connections
• Low hold-in power 8VA reduces continuous power draw during operation
• Rated operational current 10A supports moderate load switching
• Up to 690V operational voltage for high-voltage control applications
• 5NO pole arrangement enables multiple normally open circuits
• Screw clamp terminals accept 1 to 4mm² conductors for secure connections
• Low hold-in power 8VA reduces continuous power draw during operation
Applications
• Suitable for control of industrial motor starters and contactor chains
• Ideal for automation panels requiring multiple NO control outputs
• used with machine control systems operating up to 690V
• Can be used for control circuits in building services installations
• Suitable for retrofit on rail-mounted control assemblies
• Ideal for automation panels requiring multiple NO control outputs
• used with machine control systems operating up to 690V
• Can be used for control circuits in building services installations
• Suitable for retrofit on rail-mounted control assemblies
What environmental conditions can it tolerate during operation?
It operates between -40 to 60°C without derating and up to 70°C with performance adjustment.
How does it perform under short-time fault conditions?
It withstands short-time currents of up to 140A for 100ms and lesser values for longer durations.
What mechanical endurance can be expected from this device?
Mechanical life is specified at 30M cycles with a maximum operating frequency of 180 cyc/min.
What are the connection and torque requirements for terminals?
Terminals accept flexible or solid conductors up to 4mm² and require 1.2N·m tightening torque with standard screwdrivers.
How does the device behave electrically during Coil switching?
Coil energisation closes NO contacts within 12 to 22ms and releases them in 4 to 12ms, providing predictable switching times.
Approvals
UL, CSA.
Standards
BS 4794, EN 60947-5, IEC 60947-5-1, NF C 63-140, VDE 0660.
