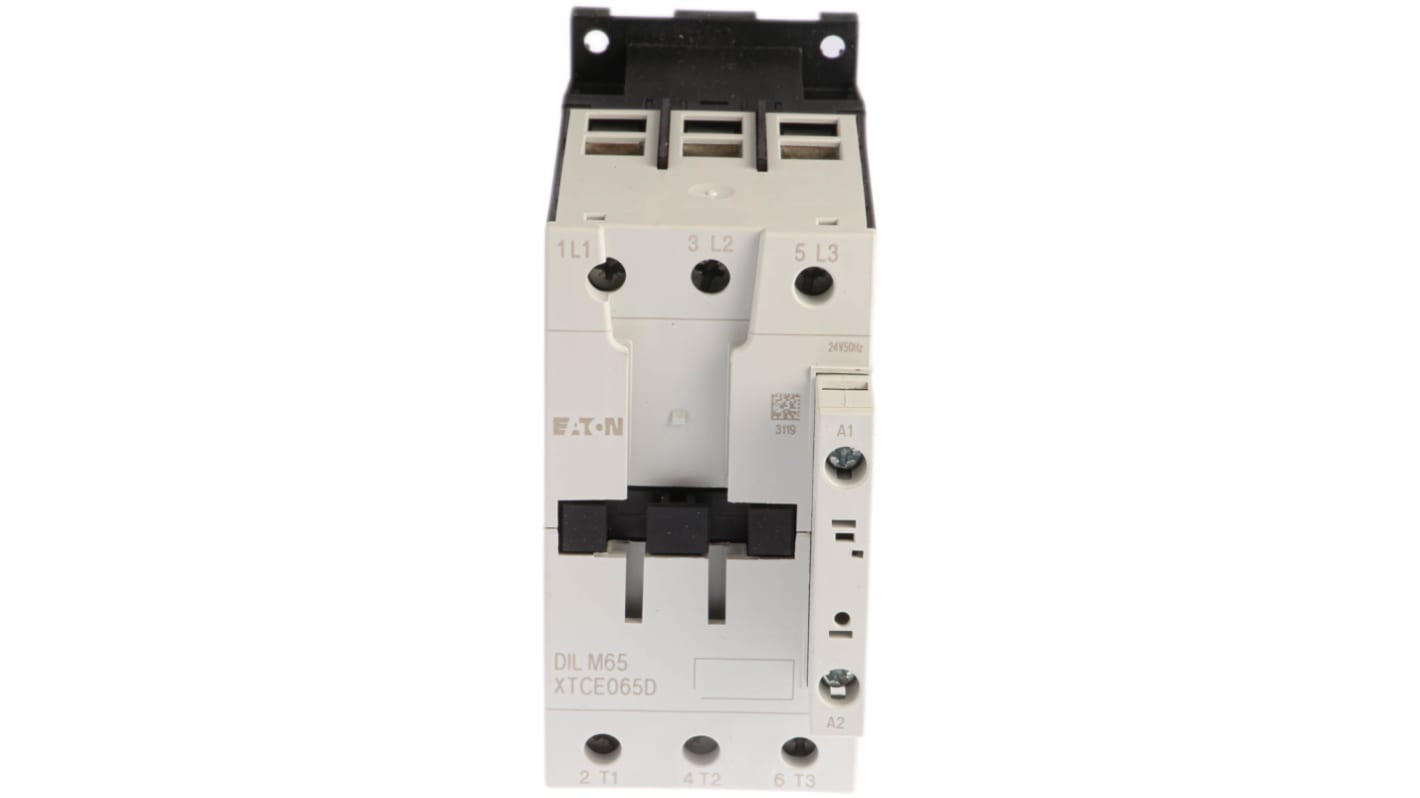

Eaton DILM Contactor, 24V ac Coil, 3-Pole, 65 A, 30 kW 24V ac, 3 NO, 400V ac
- RS Stock No.:
- 513-0099
- Mfr. Part No.:
- 277898 DILM65(24V50/60HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£284.93
(exc. VAT)
£341.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £284.93 |
*price indicative
- RS Stock No.:
- 513-0099
- Mfr. Part No.:
- 277898 DILM65(24V50/60HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 24V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 400V ac | |
| Contact Current | 65A | |
| Power Rating | 30kW | |
| Series | DILM | |
| Function | Motor Control, Resistive Load | |
| Mount Type | Surface | |
| Normal State Configuration | 3 NO | |
| Auxiliary Contact Configuration | 1 NO | |
| Terminal Type | Screw Clamp | |
| Control Circuit Voltage Uc | 24V ac | |
| Operational Current Ie | 65A | |
| Minimum Operating Temperature | -25°C | |
| Contactor Application | Motor Control, Resistive Load | |
| Maximum Operating Temperature | 40°C | |
| Width | 77mm | |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947, CSA | |
| Depth | 133mm | |
| Length | 115mm | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 24V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 400V ac | ||
Contact Current 65A | ||
Power Rating 30kW | ||
Series DILM | ||
Function Motor Control, Resistive Load | ||
Mount Type Surface | ||
Normal State Configuration 3 NO | ||
Auxiliary Contact Configuration 1 NO | ||
Terminal Type Screw Clamp | ||
Control Circuit Voltage Uc 24V ac | ||
Operational Current Ie 65A | ||
Minimum Operating Temperature -25°C | ||
Contactor Application Motor Control, Resistive Load | ||
Maximum Operating Temperature 40°C | ||
Width 77mm | ||
Standards/Approvals VDE 0660, UL, IEC/EN 60947, CSA | ||
Depth 133mm | ||
Length 115mm | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- RO
Eaton Contactor, 8000V AC Rated Impulse Withstand Voltage, 690V AC Rated Insulation Voltage - DILM Series - 277898 DILM65(24V50/60HZ)
Keen to boost the switching capacity of your equipment? Put this 30kW contactor from Eaton on the case. It's ideal for booting up three-phase motors in manufacturing and industrial settings. The 3NO configuration gives you added flexibility when setting up user-supervised systems. As the unit can switch off and on up to 5,000 times an hour and is rated to deliver 10 million operations, you can trust it to keep up with fast-paced machinery for the long term.
Features & Benefits
• Screw terminals simplify wiring to make installation quick and simple
• Functions reliably in demanding environments thanks to its -25°C to +60°C operating temperature range
• Slim dimensions of 55 (W) x 132.1 (L) x 115mm (H) save space in a busy setup
Is this contactor IE3-ready?
Yes, this contactor is primed and ready to work alongside IE3 motors, making it ideal for use in European manufacturing systems.
What accessories attach to this contactor?
You can boost the capabilities of this component in a flash by attaching either a two-pole or four-pole auxiliary contact (such as 513-4372 or 230-4501) to the front.
Note
Eaton formerly known as Moeller
