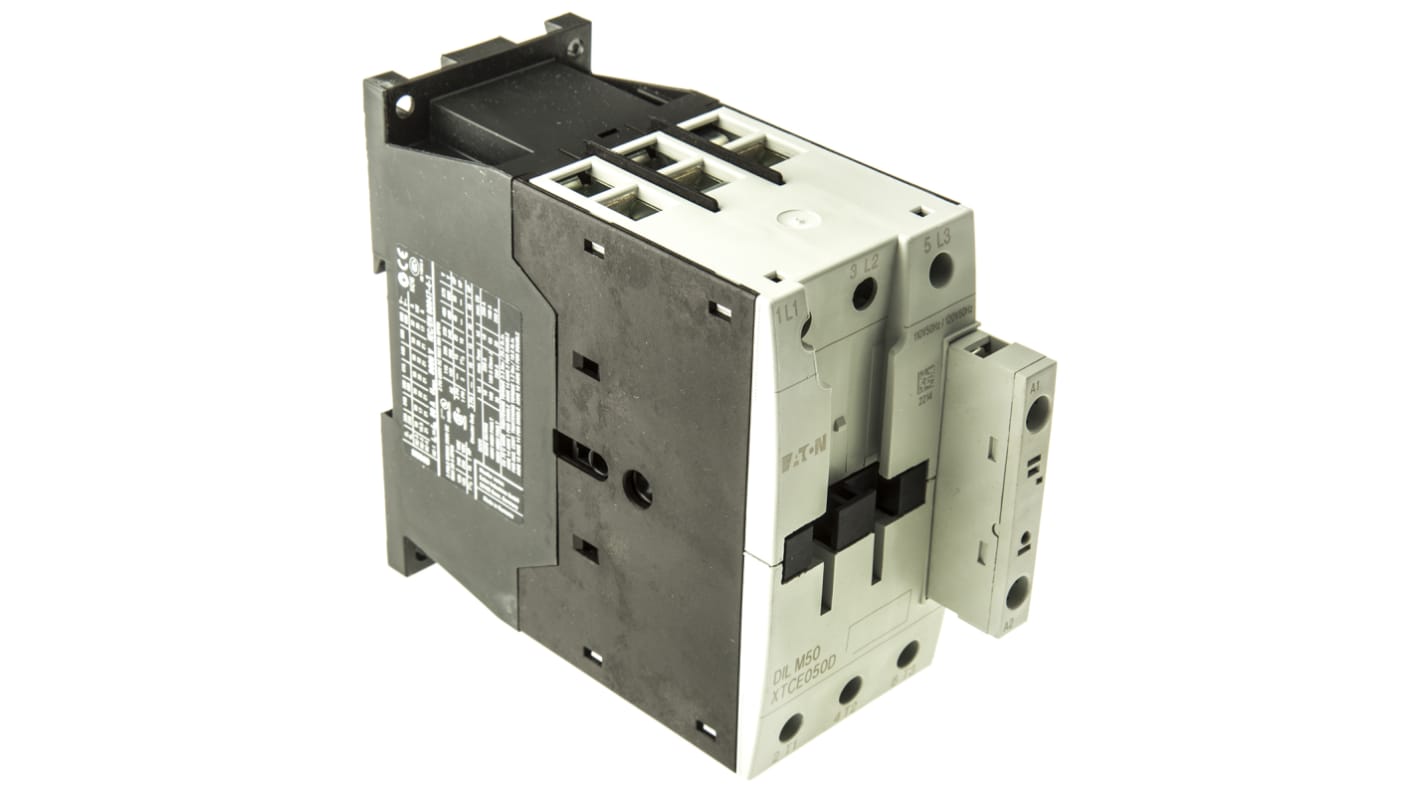

Eaton xStart Contactor, 110 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 400 V ac
- RS Stock No.:
- 513-0061
- Mfr. Part No.:
- 277827 DILM50(110V50HZ,120V60HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£200.51
(exc. VAT)
£240.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £200.51 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£284.93
(exc. VAT)
£341.92
(inc. VAT)
- RS Stock No.:
- 513-0061
- Mfr. Part No.:
- 277827 DILM50(110V50HZ,120V60HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 110 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 400 V ac | |
| Contact Current Rating | 50 A | |
| Power Rating | 22 kW | |
| Range | xStart | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Length | 115mm | |
| Width | 77mm | |
| Depth | 147mm | |
| Pole and Throw Configuration | 3P | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 110 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 50 A | ||
Power Rating 22 kW | ||
Range xStart | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Length 115mm | ||
Width 77mm | ||
Depth 147mm | ||
Pole and Throw Configuration 3P | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +40°C | ||
- COO (Country of Origin):
- RO
Eaton Contactor, 18 to 14AWG, 14mm Cable Stripping Length - 277827 DILM50(110V50HZ,120V60HZ)
Safeguard your industrial system from electrical arcs with this contactor from Eaton. You can use it to switch high-current electrical circuits on and off remotely. It's a versatile choice as it's equally at home working with AC-1, NAC-3 and AC-4 operations. This makes it an ideal option for motor start-up jobs or tasks that involve high initial loads. The unit delivers a rapid maximum response time of 18ms to give you immediate action at the flick of a switch. As it handles up to 5,000 operations per hour, it keeps pace with demanding applications. The assembly's compact dimensions of 132.1 (L) x 55 (W) x 115mm (H) mean it slots easily into crowded setups.
Features & Benefits
• Mechanical lifespan of 10 million operations indicates longevity
• 8kV AC impulse protection prevents damage caused by electrical surges
• Screw terminals for easy installation without the need for specialist tools
• 8kV AC impulse protection prevents damage caused by electrical surges
• Screw terminals for easy installation without the need for specialist tools
Can I use this contactor in harsh conditions?
Yes. This contactor performs reliably in an ambient temperature range between -25°C and +60°C, so it's ideal for use in harsh conditions.
How much does this device weigh?
This product only weighs 872g, so it keeps strain on your setup minimal.
Note
Eaton formerly known as Moeller
