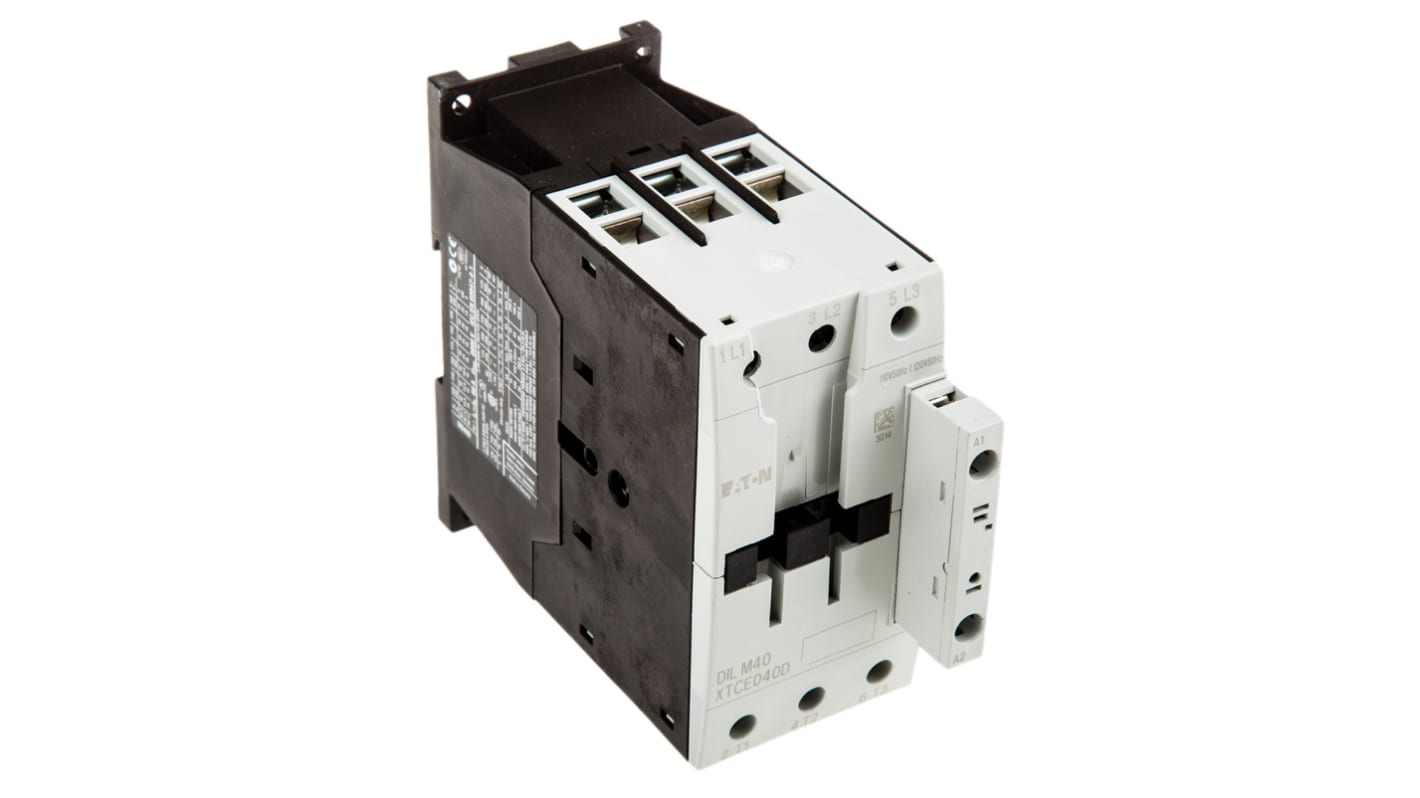

Eaton xStart Contactor, 110 V ac Coil, 3-Pole, 40 A, 18.5 kW, 3NO, 400 V ac
- RS Stock No.:
- 513-0033
- Mfr. Part No.:
- 277763 DILM40(110V50HZ,120V60HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£162.88
(exc. VAT)
£195.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 10 unit(s) shipping from 06 October 2025
- Plus 999,999,989 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.88 |
*price indicative
- RS Stock No.:
- 513-0033
- Mfr. Part No.:
- 277763 DILM40(110V50HZ,120V60HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 110 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 400 V ac | |
| Contact Current Rating | 40 A | |
| Power Rating | 18.5 kW | |
| Range | xStart | |
| Function | Motor Control | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Length | 115mm | |
| Width | 77mm | |
| Depth | 147mm | |
| Pole and Throw Configuration | 3P | |
| Maximum Operating Temperature | +40°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 110 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 40 A | ||
Power Rating 18.5 kW | ||
Range xStart | ||
Function Motor Control | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Length 115mm | ||
Width 77mm | ||
Depth 147mm | ||
Pole and Throw Configuration 3P | ||
Maximum Operating Temperature +40°C | ||
Minimum Operating Temperature -25°C | ||
Eaton Contactor, 3NO Configuration, Screw Terminals - DILM Series - 277763 DILM40(110V50HZ,120V60HZ)
Turn circuits on and off without a hitch using this contactor from Eaton. The electrically-operated electromagnetic coil makes switching quick and reliable, letting the unit carry out 5000 operations an hour. A 40A current rating and 400V AC voltage rating ensures it can handle powerful applications in mechanical engineering, shipbuilding and green technology. To keep it working safely, the contactor has climatic proofing and short circuit protection, as well as isolation between the coil and contacts. An overload relay (493-0438) can be mounted underneath and a surge suppressor (307-392) on the front if you want to upgrade motor protection without using valuable rail space.
Features & Benefits
• Works reliably in temperatures between -25°C and +60°C
• Compact frame size of 115 (L) x 77 (W) x 147mm (D) saves space in your setup
• Direct fieldbus connection for efficient link-up to industrial systems and machinery
• Compact frame size of 115 (L) x 77 (W) x 147mm (D) saves space in your setup
• Direct fieldbus connection for efficient link-up to industrial systems and machinery
What type of motors can I use this contactor with?
This contactor is rated for AC 1, 3 and 4 category motors with inductive and non-inductive loads. This means it's suitable for units that control lights, heating and lifts.
Can I add auxiliary contacts to this contactor?
Yes. This contactor accepts front-mounting (513-0263) and side-mounting (230-4498) auxiliary contacts for versatility.
Note
Eaton formerly known as Moeller
