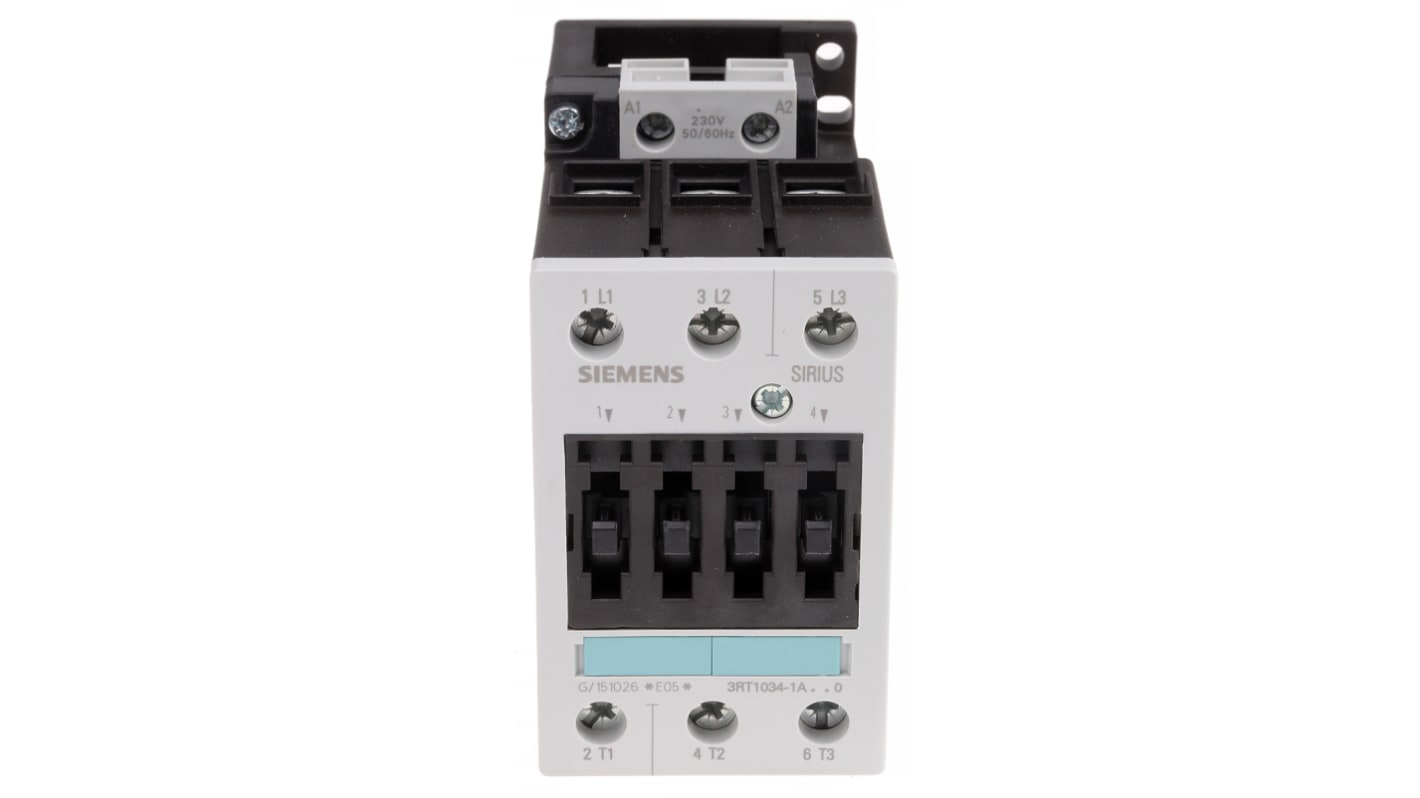

Siemens 3RT1 Series Contactor, 230 V ac Coil, 3-Pole, 32 A, 15 kW, 3NO, 415 V ac
- RS Stock No.:
- 506-7575
- Mfr. Part No.:
- 3RT1034-1AL20
- Brand:
- Siemens
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£89.85
(exc. VAT)
£107.82
(inc. VAT)
- RS Stock No.:
- 506-7575
- Mfr. Part No.:
- 3RT1034-1AL20
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 415 V ac | |
| Contact Current Rating | 32 A | |
| Range | SIRIUS Classic | |
| Series | 3RT1 | |
| Power Rating | 15 kW | |
| Normal State Configuration | 3NO | |
| Terminal Type | Screw | |
| Width | 55mm | |
| Length | 112mm | |
| Depth | 115mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 230 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 415 V ac | ||
Contact Current Rating 32 A | ||
Range SIRIUS Classic | ||
Series 3RT1 | ||
Power Rating 15 kW | ||
Normal State Configuration 3NO | ||
Terminal Type Screw | ||
Width 55mm | ||
Length 112mm | ||
Depth 115mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
Approvals
CE
