Eaton's DILA series of overload relays form part of the xStart range and come in three basic versions with the following contact types, 4NO, 3NO/1NC, 2NO/2NC. They come with 2-pole and 4-pole top-mounting auxiliary contacts and the modular design mean they can be expanded to up to eight contacts in total. These overload relays are ideally suited for use as coupling or interface contactors, especially if used to control large contactors directly from a PLC.

The DILA auxiliary contactors are the ideal companion for the DILM motor contactors, their auxiliary contacts are specifically designed for the contactor relays ensuring safe detection. If the associated system components are used, they can easily handle a wide range of electrical automation and control tasks.

All of Eaton’s DILA series overloads are reliable and high in quality offering motor control and circuit protection within a multitude of environments. Eaton offer a wide range of reliable contactor overload relays to protect machinery from overheating, keeping your business and its operations accessible.

Eaton's devices are compliant with the ErP directive meaning it's energy efficient options provide the potential for very significant savings in operational costs and will help you use energy in a more reliable, efficient, safe and sustainable way.

• 4A Current Rating
• Up to 415 V ac Contact Voltage Rating
• 4NO, 3NO/1NC and 2NO/2NC contact versions available
• Can be expanded to up to eight contacts
• All contacts are interlocked and opposing
• Screw terminal
Note: DILA -22 Contactor relay cannot be used with 4-pole auxiliary contact module.

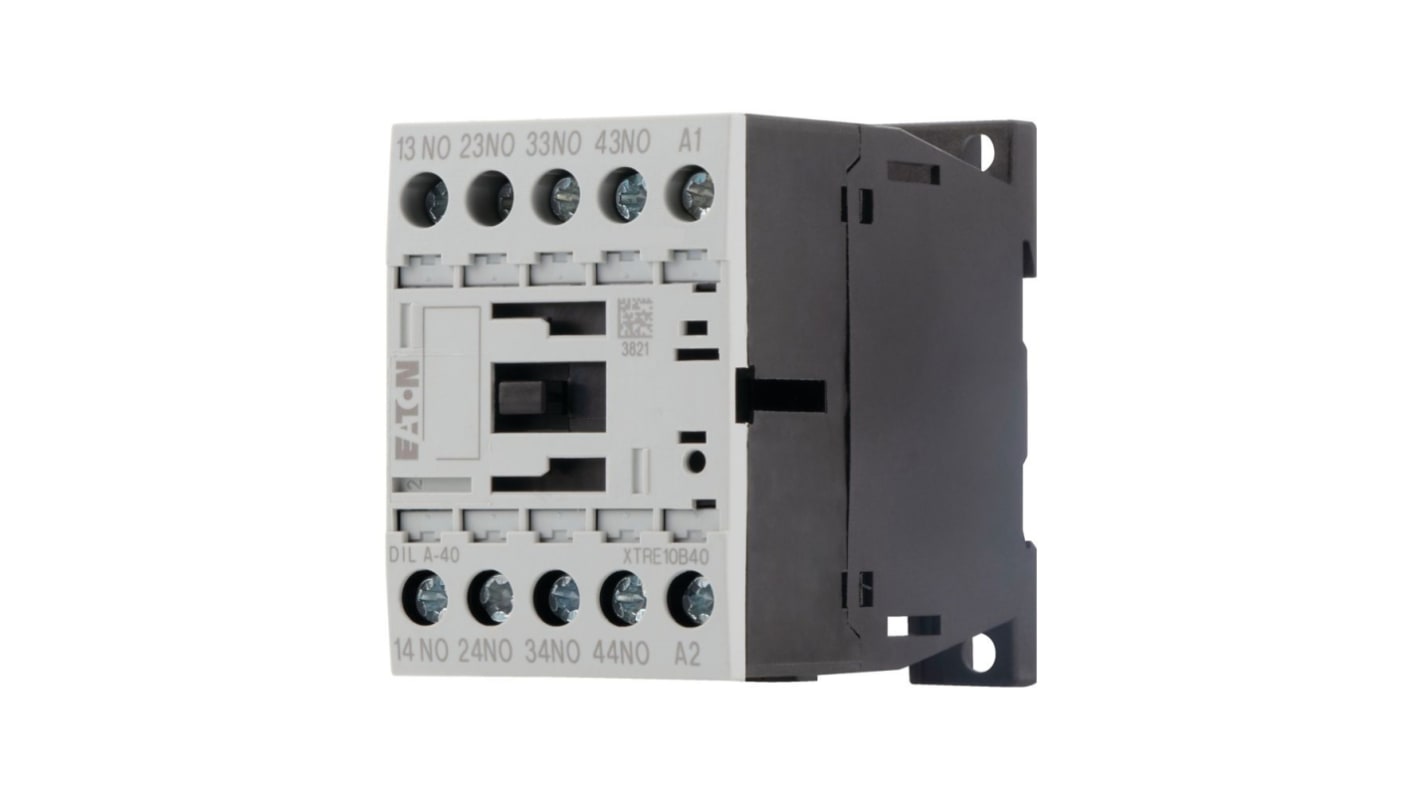

This Eaton DILA series contactor relay operates with a 230V AC coil and features a 4 normally open (4NO) contact configuration. It is built with robust screw terminal connections and measures 75mm in depth, 68mm in height, and 45mm in width.

• 16A current rating for effective performance
• Voltage rating up to 415V AC for flexibility
• Operates in temperatures from -25°C to +60°C
• Mechanical lifespan of 20 million operations
• Positive operating contacts for enhanced safety
• IP20 protection for dust resistance

• Suitable for switching motors and heavy loads
• Recommended for use in temperature-sensitive environments

Yes, it functions at 50Hz and 60Hz.

The contactor supports DIN-rail or screw mounting.

Yes, it offers isolation at 400V AC.

Eaton formerly known as Moeller
