Eaton's DILA series of overload relays form part of the xStart range and come in three basic versions with the following contact types, 4NO, 3NO/1NC, 2NO/2NC. They come with 2-pole and 4-pole top-mounting auxiliary contacts and the modular design mean they can be expanded to up to eight contacts in total. These overload relays are ideally suited for use as coupling or interface contactors, especially if used to control large contactors directly from a PLC.

The DILA auxiliary contactors are the ideal companion for the DILM motor contactors, their auxiliary contacts are specifically designed for the contactor relays ensuring safe detection. If the associated system components are used, they can easily handle a wide range of electrical automation and control tasks.

All of Eaton’s DILA series overloads are reliable and high in quality offering motor control and circuit protection within a multitude of environments. Eaton offer a wide range of reliable contactor overload relays to protect machinery from overheating, keeping your business and its operations accessible.

Eaton's devices are compliant with the ErP directive meaning it's energy efficient options provide the potential for very significant savings in operational costs and will help you use energy in a more reliable, efficient, safe and sustainable way.

• 4A Current Rating
• Up to 415 V ac Contact Voltage Rating
• 4NO, 3NO/1NC and 2NO/2NC contact versions available
• Can be expanded to up to eight contacts
• All contacts are interlocked and opposing
• Screw terminal
Note: DILA -22 Contactor relay cannot be used with 4-pole auxiliary contact module.

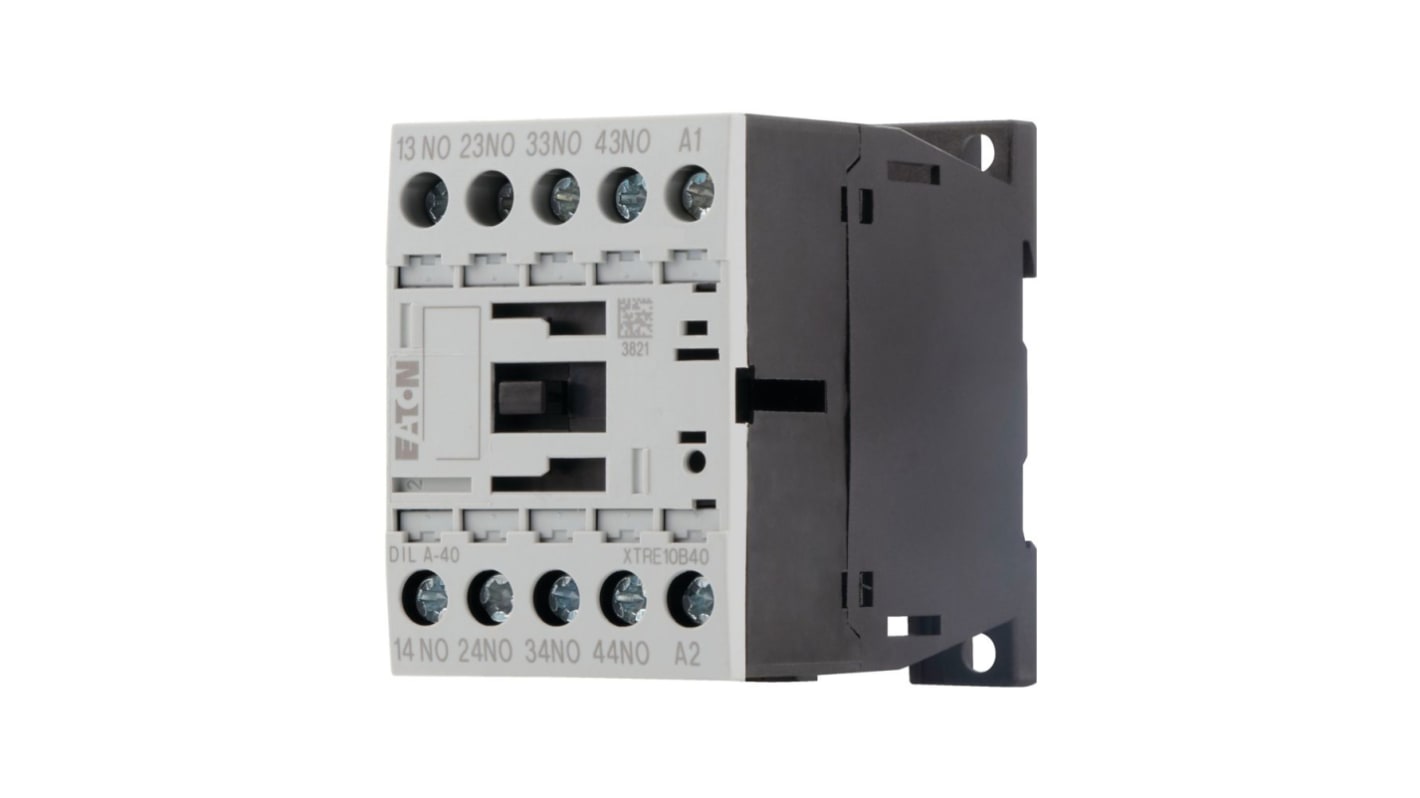

This contactor relay is essential for controlling electrical circuits in various industrial applications. It effectively manages high-voltage systems, ensuring dependable operation through its advanced design. The device is notably applicable in situations requiring durable performance under varying temperatures and electrical loads.

• Designed for AC operation with a coil voltage of 110V
• Four normally open contacts allow for diverse applications
• Suitable for a 415V AC contact rating for high-voltage handling
• Positive operation contacts improve functionality reliability
• Screw terminal connection simplifies installation and wiring

• Utilised in industrial automation systems
• Ideal for controlling motors and lighting circuits
• Appropriate for HVAC systems to enhance efficiency
• Well-suited for machine control panels
• Effective in power distribution

It can manage various AC circuits, including lighting and motors.

The device functions correctly between -25°C and +60°C, ensuring versatility.

The rated operational current is up to 4A, accommodating standard loads.

Yes, it can integrate with auxiliary contact modules for enhanced capabilities.

Eaton formerly known as Moeller
