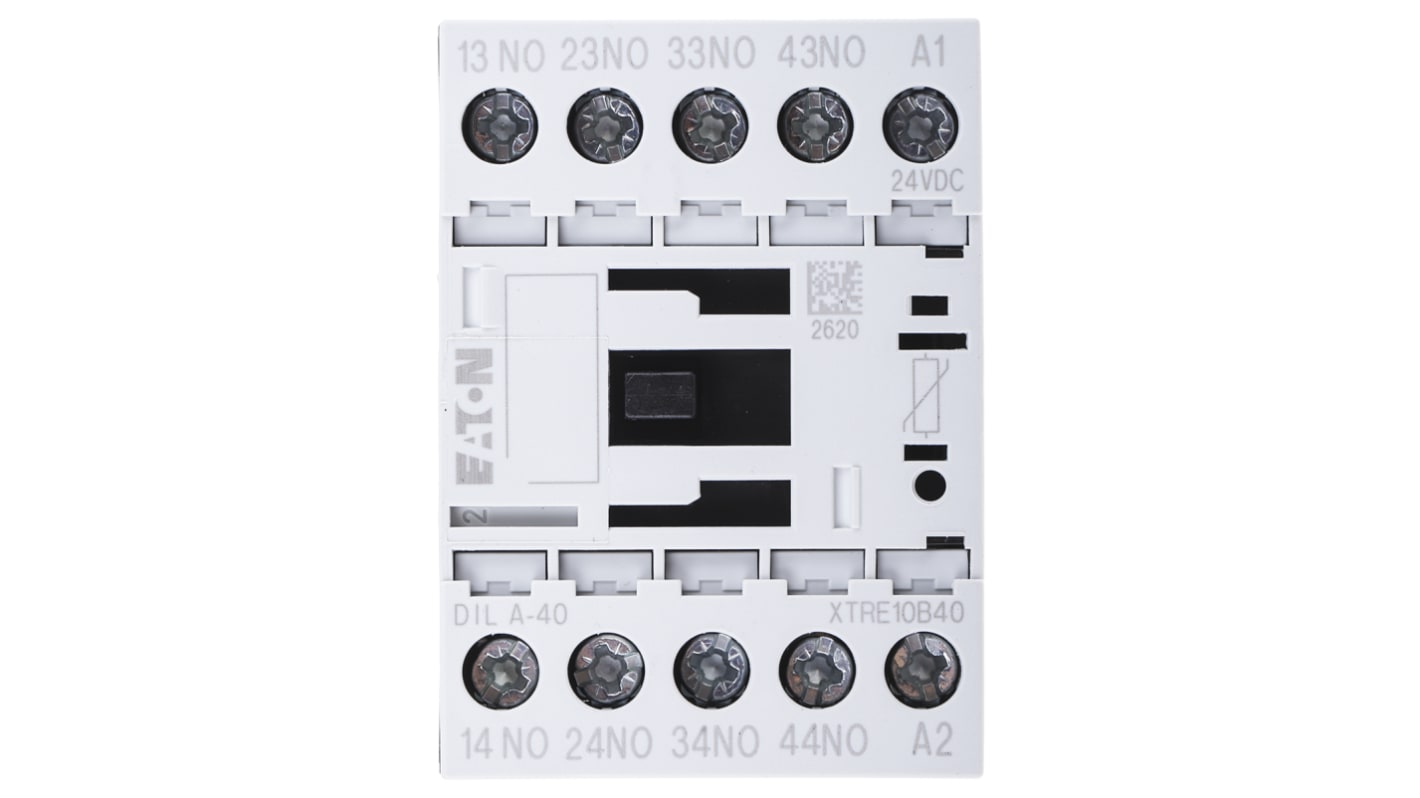

Eaton DILA Contactor, 24V dc Coil, 4-Pole, 4 A 24V dc, 4 NO, 400V ac
- RS Stock No.:
- 493-0573
- Distrelec Article No.:
- 136-22-450
- Mfr. Part No.:
- 276344 DILA-40(24VDC)
- Brand:
- Eaton
Subtotal (1 unit)*
£54.66
(exc. VAT)
£65.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £54.66 |
*price indicative
- RS Stock No.:
- 493-0573
- Distrelec Article No.:
- 136-22-450
- Mfr. Part No.:
- 276344 DILA-40(24VDC)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Contactor | |
| Coil Voltage | 24V dc | |
| Number of Poles | 4 | |
| Contact Voltage | 400V ac | |
| Contact Current | 4A | |
| Series | DILA | |
| Function | Straight | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NO | |
| Auxiliary Contact Configuration | 4 NO | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 24V dc | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 4A | |
| Contactor Application | Contactor Relay | |
| Maximum Operating Temperature | 60°C | |
| Length | 68mm | |
| Standards/Approvals | VDE 0660, CE marking, CSA, CSA - C22.2 No. 60947-4-1-14, EN 60947-5-1, IEC/EN 60947, IEC/EN 60947-4-1, UL, UL 60947-4-1 | |
| Width | 45mm | |
| Depth | 117mm | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Contactor | ||
Coil Voltage 24V dc | ||
Number of Poles 4 | ||
Contact Voltage 400V ac | ||
Contact Current 4A | ||
Series DILA | ||
Function Straight | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NO | ||
Auxiliary Contact Configuration 4 NO | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 24V dc | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 4A | ||
Contactor Application Contactor Relay | ||
Maximum Operating Temperature 60°C | ||
Length 68mm | ||
Standards/Approvals VDE 0660, CE marking, CSA, CSA - C22.2 No. 60947-4-1-14, EN 60947-5-1, IEC/EN 60947, IEC/EN 60947-4-1, UL, UL 60947-4-1 | ||
Width 45mm | ||
Depth 117mm | ||
Pole and Throw Configuration 4 | ||
- COO (Country of Origin):
- DE
Eaton xStart Range Contactor, 4A Contact Current Rating, 4 Poles - 276344 DILA-40(24VDC)
This Eaton DILA series electrical relay switch operates with a 24V DC coil and features a 4-pole configuration. It has a compact design measuring 68mm in height, 45mm in width, and 75mm in depth, accommodating various installation environments.
Features & Benefits
• Coils operate at 24V DC for energy efficiency
• 4 normally open contacts for flexible connectivity
• Screw terminal connections for easy wiring
• Contact ratings up to 400V AC
• Mechanical lifespan of 20 million operations
• Built-in suppressor circuit for stability
• Connects with SmartWire-DT modules
Applications
• Controls motors in automation systems
• Suitable for circuit protection and load management
• Used in HVAC control systems and machinery
What is the operating temperature range?
It functions between -25 and +60°C.
Is any special mounting required?
It supports DIN-rail or screw mounting.
Note
Eaton formerly known as Moeller
