Eaton's DILA series of overload relays form part of the xStart range and come in three basic versions with the following contact types, 4NO, 3NO/1NC, 2NO/2NC. They come with 2-pole and 4-pole top-mounting auxiliary contacts and the modular design mean they can be expanded to up to eight contacts in total. These overload relays are ideally suited for use as coupling or interface contactors, especially if used to control large contactors directly from a PLC.

The DILA auxiliary contactors are the ideal companion for the DILM motor contactors, their auxiliary contacts are specifically designed for the contactor relays ensuring safe detection. If the associated system components are used, they can easily handle a wide range of electrical automation and control tasks.

All of Eaton’s DILA series overloads are reliable and high in quality offering motor control and circuit protection within a multitude of environments. Eaton offer a wide range of reliable contactor overload relays to protect machinery from overheating, keeping your business and its operations accessible.

Eaton's devices are compliant with the ErP directive meaning it's energy efficient options provide the potential for very significant savings in operational costs and will help you use energy in a more reliable, efficient, safe and sustainable way.

• 4A Current Rating
• Up to 415 V ac Contact Voltage Rating
• 4NO, 3NO/1NC and 2NO/2NC contact versions available
• Can be expanded to up to eight contacts
• All contacts are interlocked and opposing
• Screw terminal
Note: DILA -22 Contactor relay cannot be used with 4-pole auxiliary contact module.

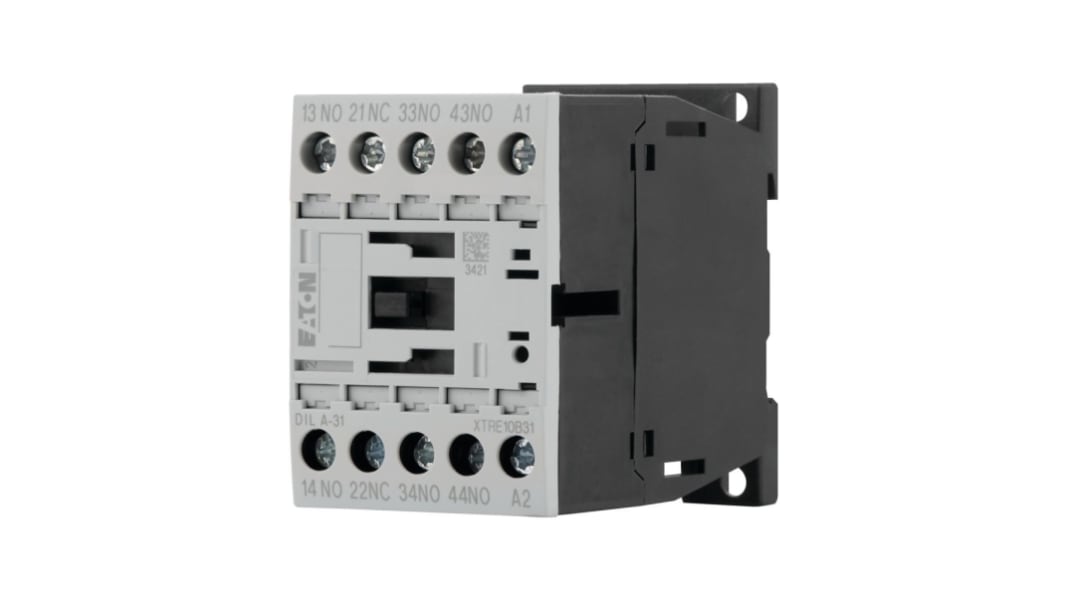

This Eaton DILA series contactor relay is designed for AC operation with a 230V coil. It measures 45x68x125.2mm and operates in temperatures from -25°C to +60°C. Constructed for industrial applications, it ensures reliable switching in various environments.

• 4 poles for versatile switching
• 415V AC contact rating for efficient load handling
• Auxiliary contacts for increased flexibility
• 20 million operations mechanical lifespan for durability

• Ideal for industrial automation and control panels
• Suitable for motor control and electrical distribution systems
• Effective in environments with varying temperatures

Yes, it has an IP20 rating for protection.

No, it is specifically designed for AC applications.

Yes, it is finger and back-of-hand proof.

Yes, it supports operational currents up to 16A.

Yes, it mounts using DIN rails or screws.

Eaton formerly known as Moeller
