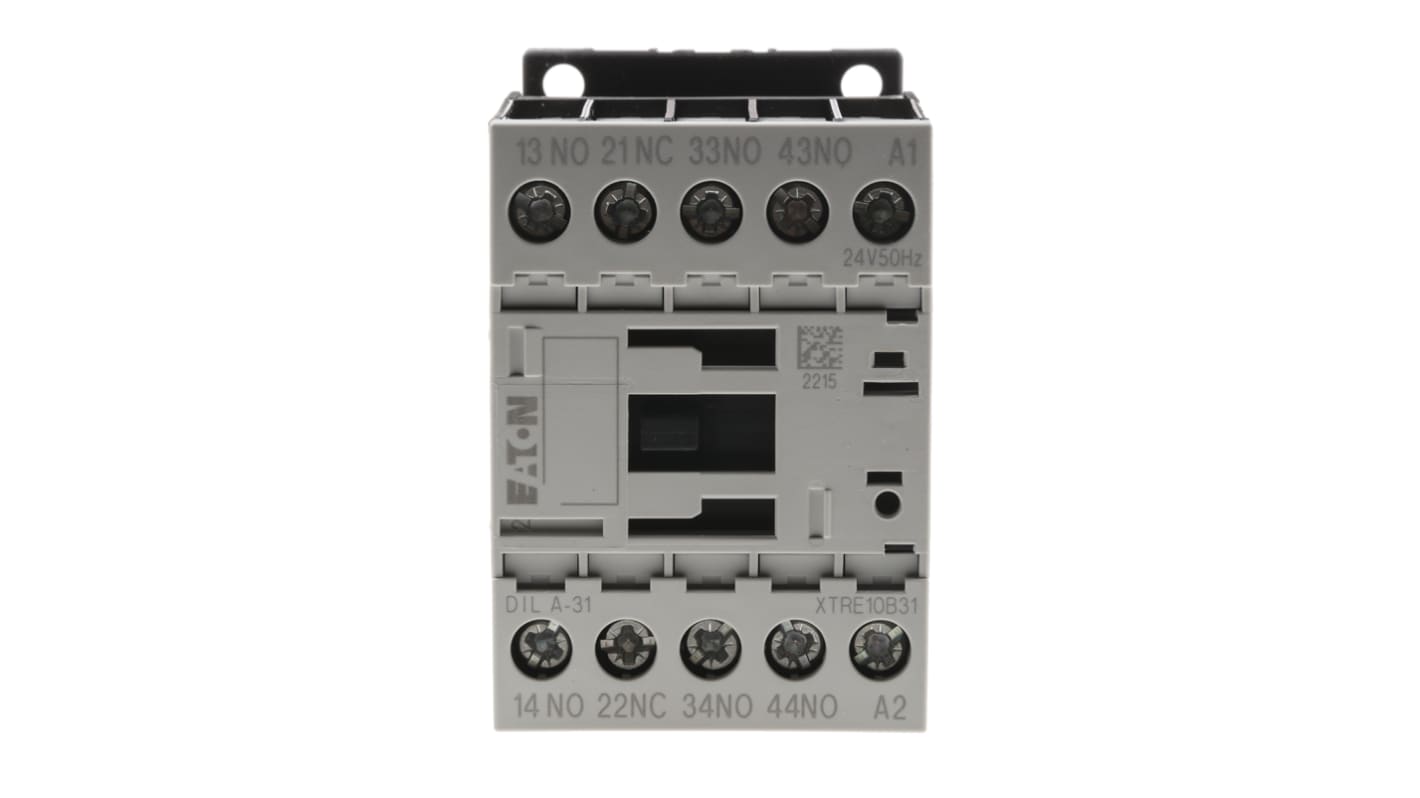

Eaton DILA Contactor Relay, 24V ac Coil, 4-Pole, 4 A 24V ac, 3 NO/1 NC, 415V ac
- RS Stock No.:
- 493-0545
- Mfr. Part No.:
- 276351 DILA-31(24V50HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£46.20
(exc. VAT)
£55.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £46.20 |
*price indicative
- RS Stock No.:
- 493-0545
- Mfr. Part No.:
- 276351 DILA-31(24V50HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 24V ac | |
| Product Type | Contactor Relay | |
| Number of Poles | 4 | |
| Contact Voltage | 415V ac | |
| Contact Current | 4A | |
| Series | DILA | |
| Function | Straight | |
| Mount Type | Screw | |
| Normal State Configuration | 3 NO/1 NC | |
| Auxiliary Contact Configuration | 3 NO/1 NC | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 4A | |
| Contactor Application | Contactor Relay | |
| Control Circuit Voltage Uc | 24V ac | |
| Maximum Operating Temperature | 60°C | |
| Depth | 75mm | |
| Standards/Approvals | IEC/EN 60947, CE marking, CSA, EN 60947-5-1, UL, VDE 0660 | |
| Width | 45mm | |
| Length | 75mm | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 24V ac | ||
Product Type Contactor Relay | ||
Number of Poles 4 | ||
Contact Voltage 415V ac | ||
Contact Current 4A | ||
Series DILA | ||
Function Straight | ||
Mount Type Screw | ||
Normal State Configuration 3 NO/1 NC | ||
Auxiliary Contact Configuration 3 NO/1 NC | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 4A | ||
Contactor Application Contactor Relay | ||
Control Circuit Voltage Uc 24V ac | ||
Maximum Operating Temperature 60°C | ||
Depth 75mm | ||
Standards/Approvals IEC/EN 60947, CE marking, CSA, EN 60947-5-1, UL, VDE 0660 | ||
Width 45mm | ||
Length 75mm | ||
Pole and Throw Configuration 4 | ||
Eaton DILA Series Contactor Relay, 24V AC Coil Voltage, 3NO + 1NC Normal State Configuration - 276351 DILA-31(24V50HZ)
This contactor relay is engineered for efficient control and automation within electrical systems. Featuring a coil voltage of 24V AC and a 4-pole configuration, it is essential in motor control applications and automation processes. Capable of managing contact voltages up to 415V AC, this industrial relay provides dependable operation, even in demanding conditions. Its robust construction and positive operation contacts enhance its utility across a range of applications, underscoring its importance in the field of electrical solutions.
Features & Benefits
• 24V AC actuating voltage allows for diverse applications
• 4A rated operational current accommodates various loads
• Screw terminals facilitate straightforward connections
• Positive operating contacts promote reliability during use
• Complies with rigorous electrical contact specifications for safety
Applications
• Suitable for motor control within industrial automation systems
• Effective in environments requiring dependable electrical switching
• Utilised in machinery functioning under strict temperature conditions
• Ideal for necessitating 415V AC contact voltage
• Compatible with auxiliary components for extended functionality
What is the maximum frequency at which this device can operate?
The device can handle a maximum operating frequency of 9000 operations per hour.
Can it be used in enclosed applications?
It is suitable for enclosed applications with a temperature limit of 40°C.
How does the relay perform in humid conditions?
It meets damp heat specifications according to IEC standards, ensuring consistent operation.
Is it compatible with SmartWire-DT connections?
This relay does not support SmartWire-DT connections and utilises traditional wiring methods.
Note
Eaton formerly known as Moeller
