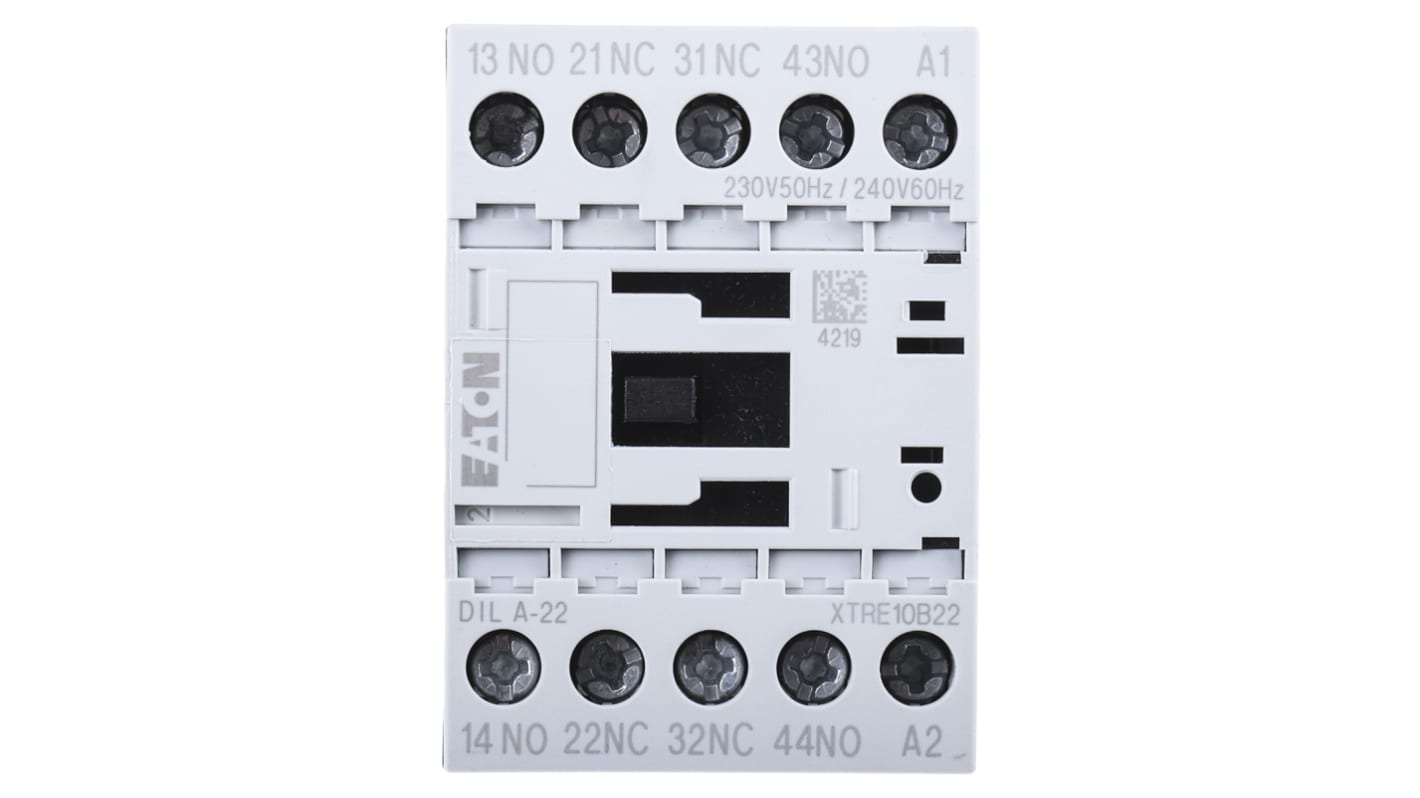

Eaton xStart Contactor Relay, 230 V ac Coil, 4 A, 2NO + 2NC, 415 V ac
- RS Stock No.:
- 493-0523
- Mfr. Part No.:
- 276399 DILA-22(230V50HZ,240V60HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£46.20
(exc. VAT)
£55.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 7 unit(s) shipping from 01 October 2025
- Plus 5 unit(s) shipping from 01 October 2025
- Plus 1 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £46.20 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£45.49
(exc. VAT)
£54.59
(inc. VAT)
- RS Stock No.:
- 493-0523
- Mfr. Part No.:
- 276399 DILA-22(230V50HZ,240V60HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 230 V ac | |
| Contact Voltage Rating | 415 V ac | |
| Contact Current Rating | 4 A | |
| Range | xStart | |
| Normal State Configuration | 2NO + 2NC | |
| Auxiliary Contact Configuration | 2NO + 2NC | |
| Terminal Type | Screw | |
| Length | 45mm | |
| Width | 68mm | |
| Depth | 125.2mm | |
| Control Voltage | 230 V, 240 V | |
| Mounting Style | DIN Rail Mount | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 230 V ac | ||
Contact Voltage Rating 415 V ac | ||
Contact Current Rating 4 A | ||
Range xStart | ||
Normal State Configuration 2NO + 2NC | ||
Auxiliary Contact Configuration 2NO + 2NC | ||
Terminal Type Screw | ||
Length 45mm | ||
Width 68mm | ||
Depth 125.2mm | ||
Control Voltage 230 V, 240 V | ||
Mounting Style DIN Rail Mount | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- DE
Eaton Contactor Relay, Overvoltage Category III, 2NO/2NC Configuration - DILA Series - 276399 DILA-22(230V50HZ,240V60HZ)
Looking for a device to keep your motor control operations on track? Put this contactor relay from Eaton in the driving seat. It's ideal for protecting circuits where high start-up loads are needed, so you'll find it supporting industrial automation and processing tasks. As it has contacts rated at 415V AC, it's suitable for demanding applications. Built-in 6kV AC impulse protection stops hazardous overvoltages from damaging your equipment and derailing your workflow. This is a space-efficient choice thanks to dimensions of 45 (L) x 68 (W) x 125.2mm (D) that help keep your setup compact and organised.
Features & Benefits
• Mechanical lifespan of up to 20 million operations assures you of longevity
• IP20 rating means it's touch-proof and protected against tools or wires bigger than 12mm
• Light 0.24kg weight doesn't add excess load to your setup
• IP20 rating means it's touch-proof and protected against tools or wires bigger than 12mm
• Light 0.24kg weight doesn't add excess load to your setup
How do I mount this device?
You can mount this device on a standard DIN rail. Screw terminals make for fast and straightforward installation.
Can this product stand up to challenging environments?
Yes. This relay works reliably in temperatures between -25°C and +60°C, so it's ideal for use in demanding settings.
Note
Eaton formerly known as Moeller
