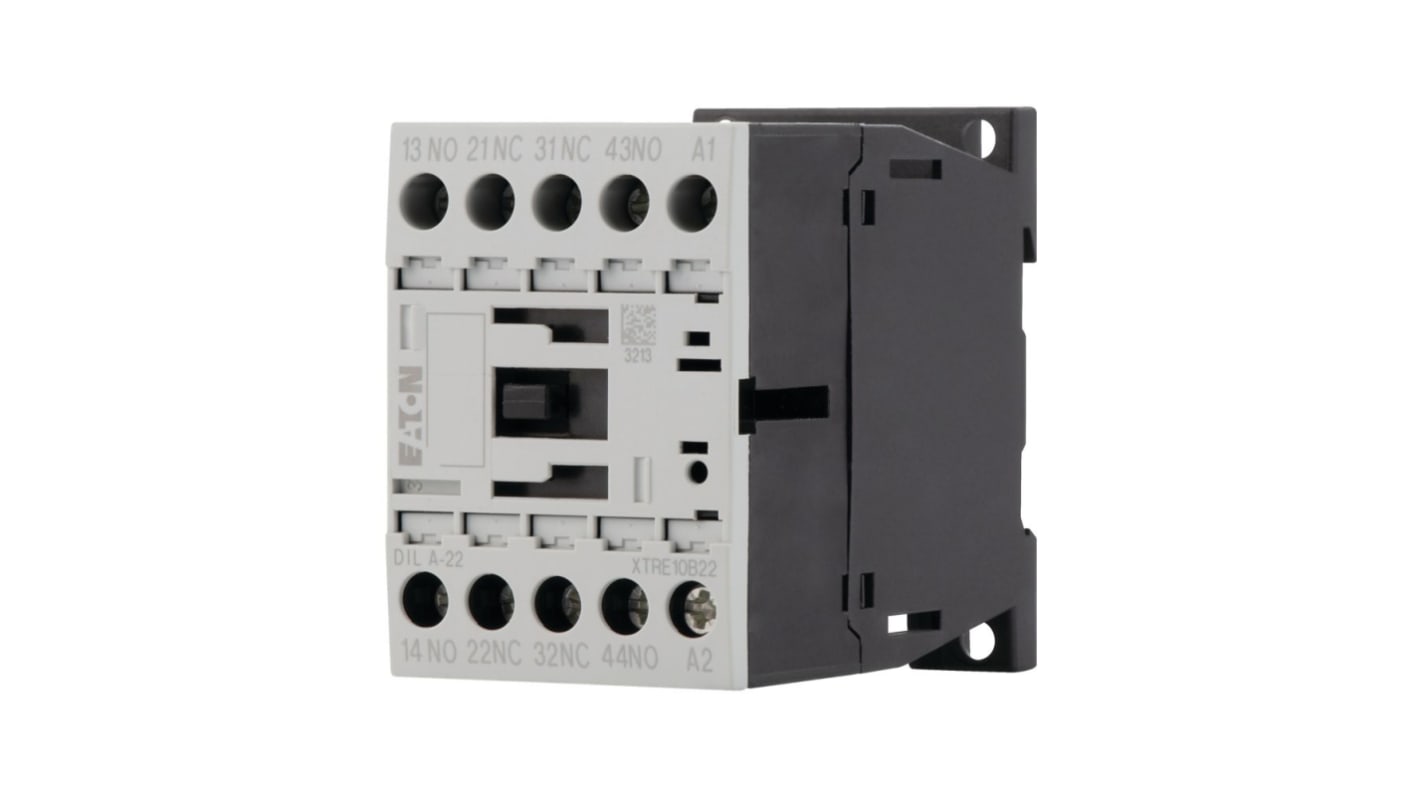

Eaton xStart DILA Contactor Relay, 110 V ac Coil, 4-Pole, 4 A, 2NO + 2NC, 415 V ac
- RS Stock No.:
- 493-0517
- Mfr. Part No.:
- 276396 DILA-22(110V50HZ,120V60HZ)
- Brand:
- Eaton
Subtotal (1 unit)*
£46.20
(exc. VAT)
£55.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £46.20 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£46.20
(exc. VAT)
£55.44
(inc. VAT)
- RS Stock No.:
- 493-0517
- Mfr. Part No.:
- 276396 DILA-22(110V50HZ,120V60HZ)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 110 V ac | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 415 V ac | |
| Contact Current Rating | 4 A | |
| Range | xStart | |
| Series | DILA | |
| Normal State Configuration | 2NO + 2NC | |
| Number Of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 75mm | |
| Depth | 75mm | |
| Mounting Style | DIN Rail Mount | |
| Pole and Throw Configuration | 4P | |
| Maximum Operating Temperature | +60°C | |
| Control Voltage | 110/120 V ac | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 110 V ac | ||
Number of Poles 4 | ||
Contact Voltage Rating 415 V ac | ||
Contact Current Rating 4 A | ||
Range xStart | ||
Series DILA | ||
Normal State Configuration 2NO + 2NC | ||
Number Of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 75mm | ||
Depth 75mm | ||
Mounting Style DIN Rail Mount | ||
Pole and Throw Configuration 4P | ||
Maximum Operating Temperature +60°C | ||
Control Voltage 110/120 V ac | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- RO
Eaton DILA Series Contactor Relay, 110V AC Coil Voltage, 2NO + 2NC Normal State Configuration - 276396 DILA-22(110V50HZ,120V60HZ)
This contactor relay efficiently controls electrical circuits in a range of industrial applications. It performs well under high voltage conditions, providing a dependable solution for automation in electrical systems. The device incorporates normally open and normally closed contacts, offering versatility for various operational requirements.
Features & Benefits
• Designed for 110V AC operation, ensuring compatibility with many systems
• Incorporates 4 poles to manage multiple circuits concurrently
• Rated contact voltage of 415V AC enables high voltage applications
• Features screw terminal connections for secure and convenient installation
• Maximum operating temperature of +60°C suitable for harsh environments
• Mechanical lifespan of 20 million operations enhances durability
• Incorporates 4 poles to manage multiple circuits concurrently
• Rated contact voltage of 415V AC enables high voltage applications
• Features screw terminal connections for secure and convenient installation
• Maximum operating temperature of +60°C suitable for harsh environments
• Mechanical lifespan of 20 million operations enhances durability
Applications
• Utilised in automation systems for motor control
• Suitable for HVAC systems that require dependable switching
• Employed in manufacturing equipment to manage operational cycles
• Used in lighting control systems for efficient energy management
• Applied in safety systems for emergency shutdown procedures
• Suitable for HVAC systems that require dependable switching
• Employed in manufacturing equipment to manage operational cycles
• Used in lighting control systems for efficient energy management
• Applied in safety systems for emergency shutdown procedures
What type of loads can it control?
It can handle electrical loads, particularly inductive and resistive, in diverse industrial settings.
How is it configured for specific applications?
Configuration can be achieved by connecting the terminals according to the circuit requirements specified in the installation manual.
Can it be integrated with other control systems?
Yes, it can be easily integrated with existing control systems using appropriate connections and configurations.
Note
Eaton formerly known as Moeller
