Eaton's DILA series of overload relays form part of the xStart range and come in three basic versions with the following contact types, 4NO, 3NO/1NC, 2NO/2NC. They come with 2-pole and 4-pole top-mounting auxiliary contacts and the modular design mean they can be expanded to up to eight contacts in total. These overload relays are ideally suited for use as coupling or interface contactors, especially if used to control large contactors directly from a PLC.

The DILA auxiliary contactors are the ideal companion for the DILM motor contactors, their auxiliary contacts are specifically designed for the contactor relays ensuring safe detection. If the associated system components are used, they can easily handle a wide range of electrical automation and control tasks.

All of Eaton’s DILA series overloads are reliable and high in quality offering motor control and circuit protection within a multitude of environments. Eaton offer a wide range of reliable contactor overload relays to protect machinery from overheating, keeping your business and its operations accessible.

Eaton's devices are compliant with the ErP directive meaning it's energy efficient options provide the potential for very significant savings in operational costs and will help you use energy in a more reliable, efficient, safe and sustainable way.

• 4A Current Rating
• Up to 415 V ac Contact Voltage Rating
• 4NO, 3NO/1NC and 2NO/2NC contact versions available
• Can be expanded to up to eight contacts
• All contacts are interlocked and opposing
• Screw terminal
Note: DILA -22 Contactor relay cannot be used with 4-pole auxiliary contact module.

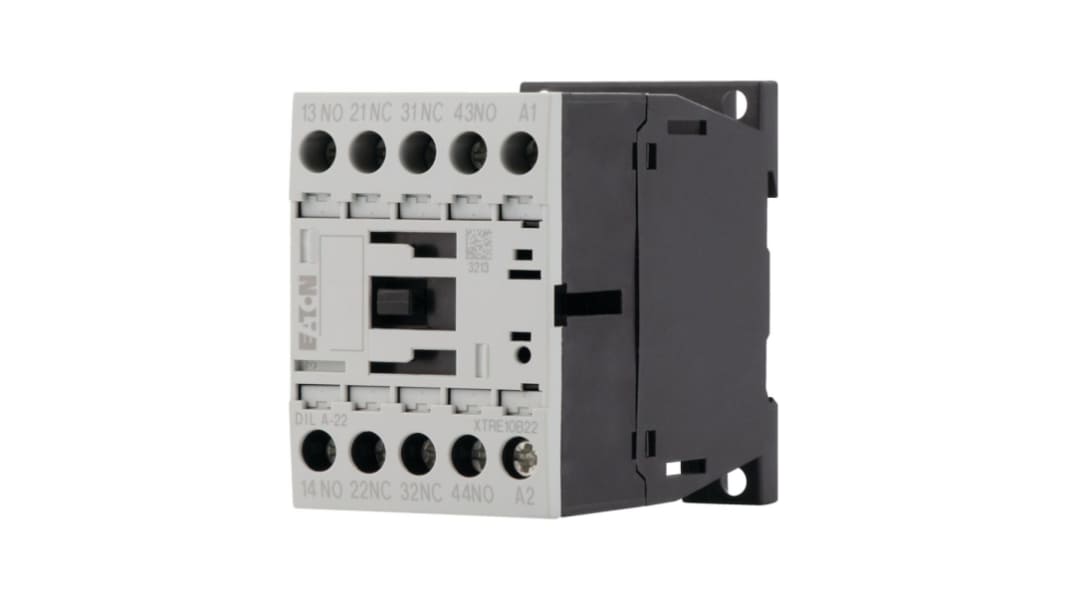

This Eaton contactor relay, compact at 45x68x125.2mm, operates at a coil voltage of 24V DC and is rated for 415V AC contact voltage. Featuring a four-pole configuration, it ensures reliable performance across diverse environments.

• Positive operation contacts for enhanced safety
• Auxiliary contacts for increased control options
• DIN rail mounting for easy installation
• Operates within -25°C to +60°C temperature range
• IP20 rating provides dust protection

• Ideal for automation control in machinery
• Suitable for switching electrical circuits
• Used in industrial relay systems and commercial HVAC
• Fits in control panels for various electrical setups

Yes, it operates efficiently from -25°C to +60°C.

Yes, it features finger and back-of-hand proof protection.

Yes, it supports 2 normally open and 2 normally closed contacts.

Eaton formerly known as Moeller
