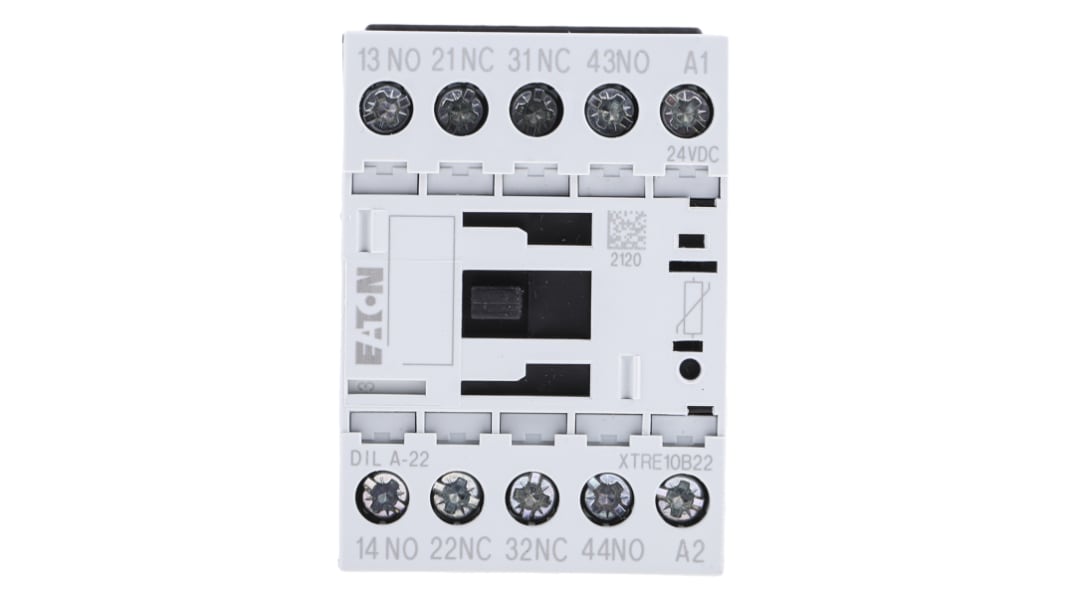

Eaton DILA Contactor, 24V dc Coil, 4-Pole, 4 A 24V dc, 2 NO/2 NC, 415V ac
- RS Stock No.:
- 493-0494
- Distrelec Article No.:
- 136-22-454
- Mfr. Part No.:
- 276414 DILA-22(24VDC)
- Brand:
- Eaton
Subtotal (1 unit)*
£54.66
(exc. VAT)
£65.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 13 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 13 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £54.66 |
*price indicative
- RS Stock No.:
- 493-0494
- Distrelec Article No.:
- 136-22-454
- Mfr. Part No.:
- 276414 DILA-22(24VDC)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Contactor | |
| Coil Voltage | 24V dc | |
| Number of Poles | 4 | |
| Contact Voltage | 415V ac | |
| Contact Current | 4A | |
| Series | DILA | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 2 NO/2 NC | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 24V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE, VDE UL File No.: E29184, VDE 0660, UL Category Control No.: NKCR, UL 508, UL, IEC/EN 60947-4-1, IEC/EN 60947, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA Std. C22.2 No. 14-05, CSA File No.: 012528, CSA Class No.: 3211-03, CSA-C22.2 No. 14-05, CSA | |
| Width | 68mm | |
| Length | 45mm | |
| Depth | 126mm | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Contactor | ||
Coil Voltage 24V dc | ||
Number of Poles 4 | ||
Contact Voltage 415V ac | ||
Contact Current 4A | ||
Series DILA | ||
Mount Type DIN Rail | ||
Normal State Configuration 2 NO/2 NC | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 24V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE, VDE UL File No.: E29184, VDE 0660, UL Category Control No.: NKCR, UL 508, UL, IEC/EN 60947-4-1, IEC/EN 60947, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA Std. C22.2 No. 14-05, CSA File No.: 012528, CSA Class No.: 3211-03, CSA-C22.2 No. 14-05, CSA | ||
Width 68mm | ||
Length 45mm | ||
Depth 126mm | ||
Pole and Throw Configuration 4 | ||
- COO (Country of Origin):
- DE
Eaton Contactor, 4 Poles, Overvoltage Category III Rating - DILA Series - 276414 DILA-22(24VDC)
When efficient switching is called for, choose this 2.6W contactor from Eaton. By linking its coil to a 24V DC power source, you can use it to either make or break an electrical circuit of up to 690V AC. Heavy usage doesn't pose a problem as the unit handles 9,000 operations every hour. Its slim size of 125.2 (D) x 45 (L) x 68mm (W) lets you mount it in tight setups. It can run everything from lighting networks and HVAC systems to thermal evaporators.
Features & Benefits
• 6000V AC rated impulse withstand voltage for protection from electrical surges
• Long lifespan of 20 million operations indicates that it's highly reliable
• Wide operating temperature range between -25°C and +60°C
• Light weight of just 294g, so won't put a strain on your setup
• IP20 rating means it's touch-proof and protected against objects larger than 12mm
How do I mount this product?
As the contactor snaps easily onto a DIN rail, installation is simple and speedy.
What thread size are this unit's terminal screws?
The terminal screws have an M3.5 thread, so you can fasten them with a standard screwdriver.
Note
Eaton formerly known as Moeller
