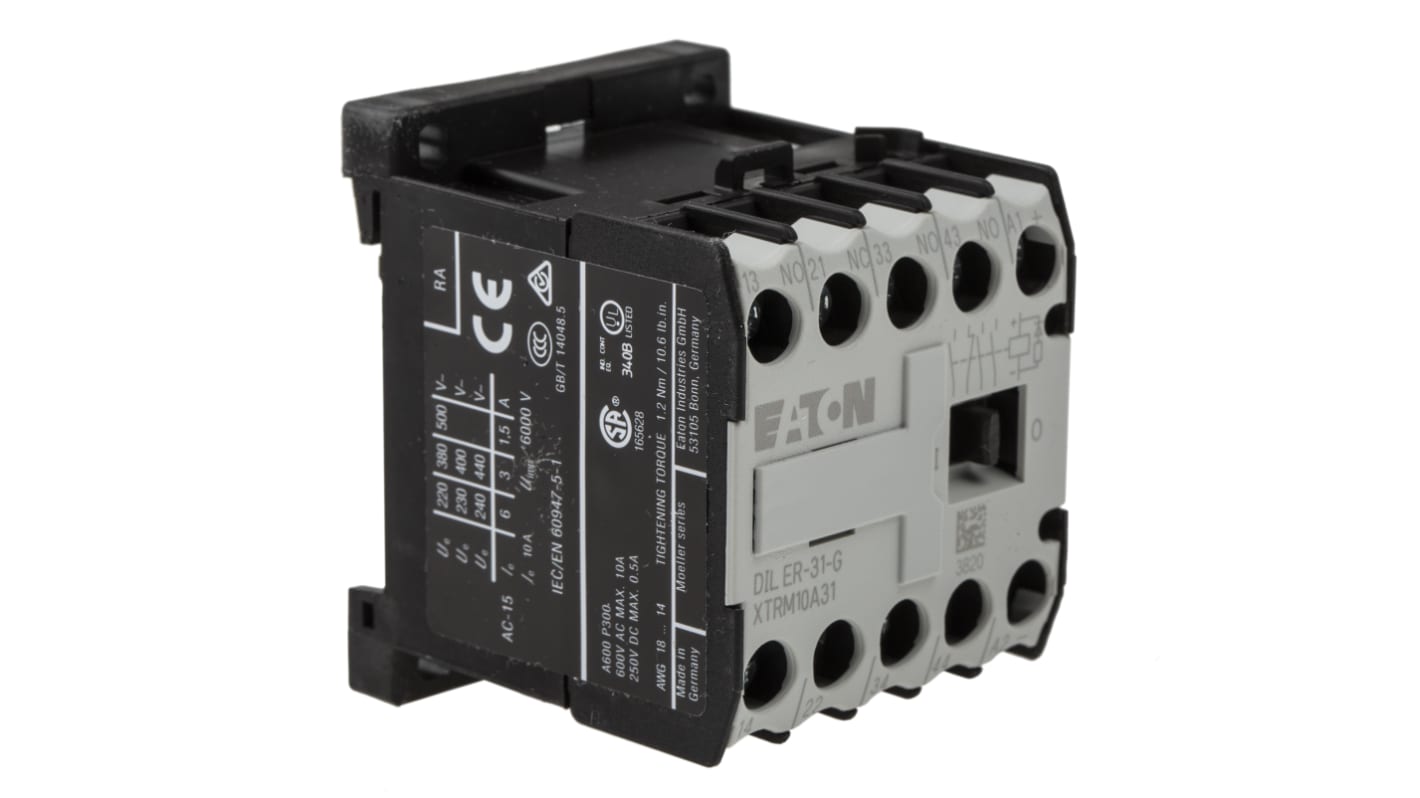

Eaton DILER Contactor, 24V dc Coil, 4-Pole, 3 A 24V dc, 3 NO/1 NC, 400V ac
- RS Stock No.:
- 467-9616
- Distrelec Article No.:
- 136-22-445
- Mfr. Part No.:
- 010157 DILER-31-G(24VDC)
- Brand:
- Eaton
Subtotal (1 unit)*
£53.91
(exc. VAT)
£64.69
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
- Plus 44 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £53.91 |
*price indicative
- RS Stock No.:
- 467-9616
- Distrelec Article No.:
- 136-22-445
- Mfr. Part No.:
- 010157 DILER-31-G(24VDC)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 24V dc | |
| Product Type | Contactor | |
| Number of Poles | 4 | |
| Contact Voltage | 400V ac | |
| Contact Current | 3A | |
| Series | DILER | |
| Mount Type | DIN Rail | |
| Function | Straight | |
| Normal State Configuration | 3 NO/1 NC | |
| Auxiliary Contact Configuration | 3 NO/1 NC | |
| Terminal Type | Screw | |
| Operational Current Ie | 4A | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 24V dc | |
| Contactor Application | Contactor Relay | |
| Maximum Operating Temperature | 40°C | |
| Width | 45mm | |
| Standards/Approvals | CSA, EN 60947-5-1, IEC/EN 60947, UL, VDE 0660, CE marking | |
| Length | 58mm | |
| Depth | 54mm | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 24V dc | ||
Product Type Contactor | ||
Number of Poles 4 | ||
Contact Voltage 400V ac | ||
Contact Current 3A | ||
Series DILER | ||
Mount Type DIN Rail | ||
Function Straight | ||
Normal State Configuration 3 NO/1 NC | ||
Auxiliary Contact Configuration 3 NO/1 NC | ||
Terminal Type Screw | ||
Operational Current Ie 4A | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 24V dc | ||
Contactor Application Contactor Relay | ||
Maximum Operating Temperature 40°C | ||
Width 45mm | ||
Standards/Approvals CSA, EN 60947-5-1, IEC/EN 60947, UL, VDE 0660, CE marking | ||
Length 58mm | ||
Depth 54mm | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- DE
Eaton Contactor, 6kV Rated Impulse Withstand Voltage, 0.4W Heat Dissipation Per Pole - DILER Series - 010157 DILER-31-G(24VDC)
Take full control of heavy-duty electrical loads in your industrial application with this contactor from Eaton. It's a 4-pole component, making it a versatile choice for 3-phase networks. The unit uses electromagnetic technology to help you control devices such as motors and heating systems. Because it uses a very low input voltage, it prevents damage and reduces the risk of fire that overvoltage can cause, improving safety. Thanks to screw terminals, this is an easy option to wire up to your equipment, saving time and effort. You'll find it used in the manufacturing industry and HVAC systems.
Features & Benefits
• Broad operating temperature range between -20°C to +50°C for wide compatibility with industrial settings
• IP20 rating indicates that it's finger-safe and protected from objects larger than 12mm
• Light weight of 211g for easy handling during installation
• Integrated suppressor to handle voltage spikes when it's de-energised
What size is this contactor?
This unit has compact dimensions of 58 (L) x 45 (W) x 54mm (D), making it a compact choice for use in tight setups.
Note
Eaton formerly known as Moeller
