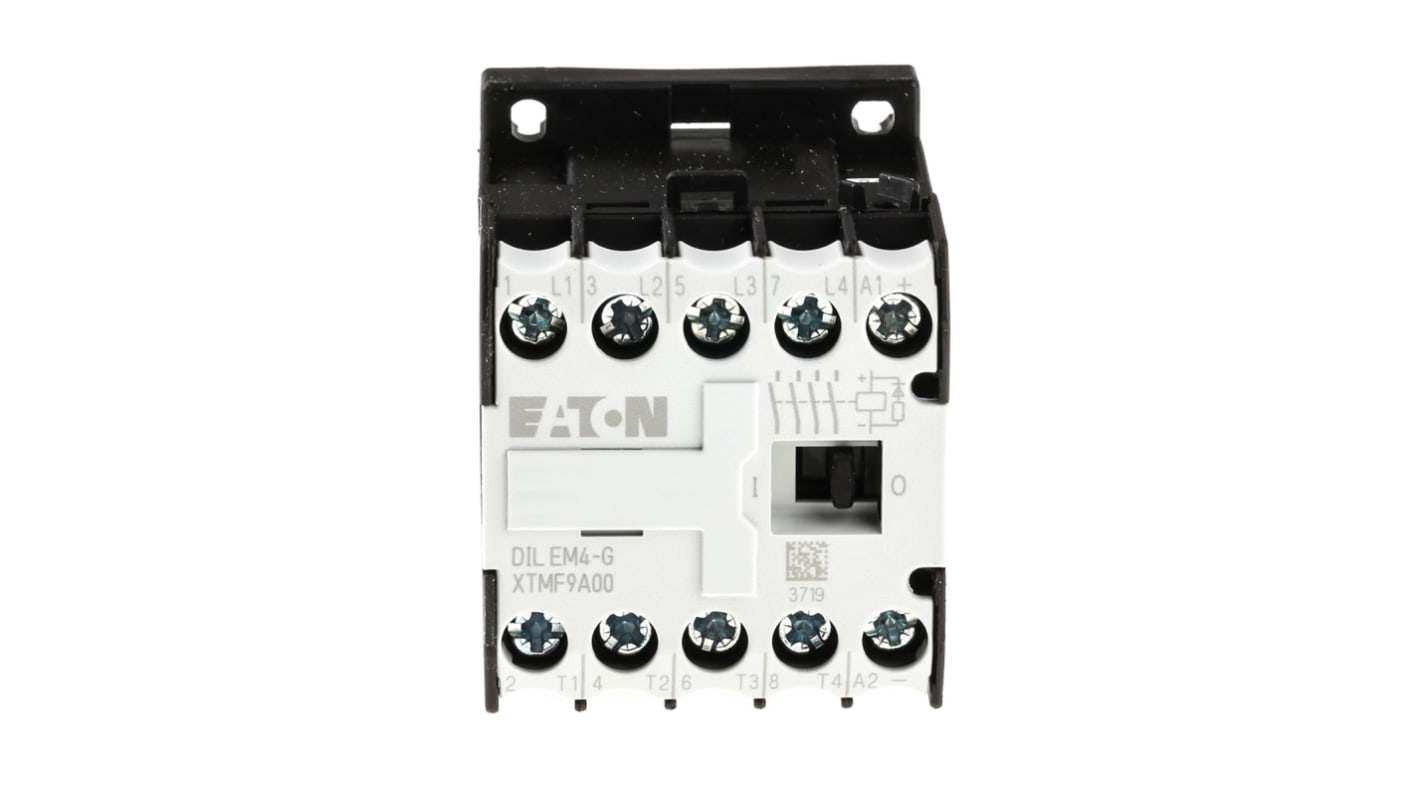

Eaton xStart Contactor, 24 V dc Coil, 4-Pole, 9 A, 4 kW, 4NO, 400 V ac
- RS Stock No.:
- 467-9391
- Mfr. Part No.:
- 012701 DILEM4-G(24VDC)
- Brand:
- Eaton
Subtotal (1 unit)*
£56.16
(exc. VAT)
£67.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £56.16 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£47.10
(exc. VAT)
£56.52
(inc. VAT)
- RS Stock No.:
- 467-9391
- Mfr. Part No.:
- 012701 DILEM4-G(24VDC)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 24 V dc | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 400 V ac | |
| Contact Current Rating | 9 A | |
| Power Rating | 4 kW | |
| Range | xStart | |
| Normal State Configuration | 4NO | |
| Number Of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Length | 58mm | |
| Width | 45mm | |
| Depth | 83mm | |
| Maximum Operating Temperature | +40°C | |
| Pole and Throw Configuration | 4P | |
| Control Voltage | 24 V dc | |
| Mounting Style | DIN Rail Mount | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 24 V dc | ||
Number of Poles 4 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 9 A | ||
Power Rating 4 kW | ||
Range xStart | ||
Normal State Configuration 4NO | ||
Number Of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Length 58mm | ||
Width 45mm | ||
Depth 83mm | ||
Maximum Operating Temperature +40°C | ||
Pole and Throw Configuration 4P | ||
Control Voltage 24 V dc | ||
Mounting Style DIN Rail Mount | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- DE
Eaton Contactor, 24V DC Coil Voltage, 4NO Normal State Configuration - DILEM Series - 012701 DILEM4-G(24VDC)
Choose this contactor from Eaton to spark your industrial automation tasks into life. It's suitable for motor starting and factory operations that depend on constant switching between on and off states. The four-pole design makes it particularly suitable for controlling non-inductive or slightly inductive loads. With a 4kW power rating, this contactor tackles challenging start-up tasks without breaking a sweat. To add it to your setup, use the screw terminals and a screwdriver for hassle-free installation.
Features & Benefits
• Light 0.206kg weight prevents excess load from being added to your setup
• IP20 rating means it's touch-proof and resistant to dust or small objects over 12mm
• Broad operating temperature range between -25°C and +40°C suits use in harsh industrial environments
• Withstands up to 9,000 operations per hour for demanding jobs
• IP20 rating means it's touch-proof and resistant to dust or small objects over 12mm
• Broad operating temperature range between -25°C and +40°C suits use in harsh industrial environments
• Withstands up to 9,000 operations per hour for demanding jobs
What size is this contactor?
This product has compact dimensions of 58 (L) x 83 (D) x 45mm (W), so it's ideal for use where space is at a premium.
How long will this contactor last?
This assembly lasts for up to 20 million operations, so it delivers long-term performance.
Note
Eaton formerly known as Moeller
