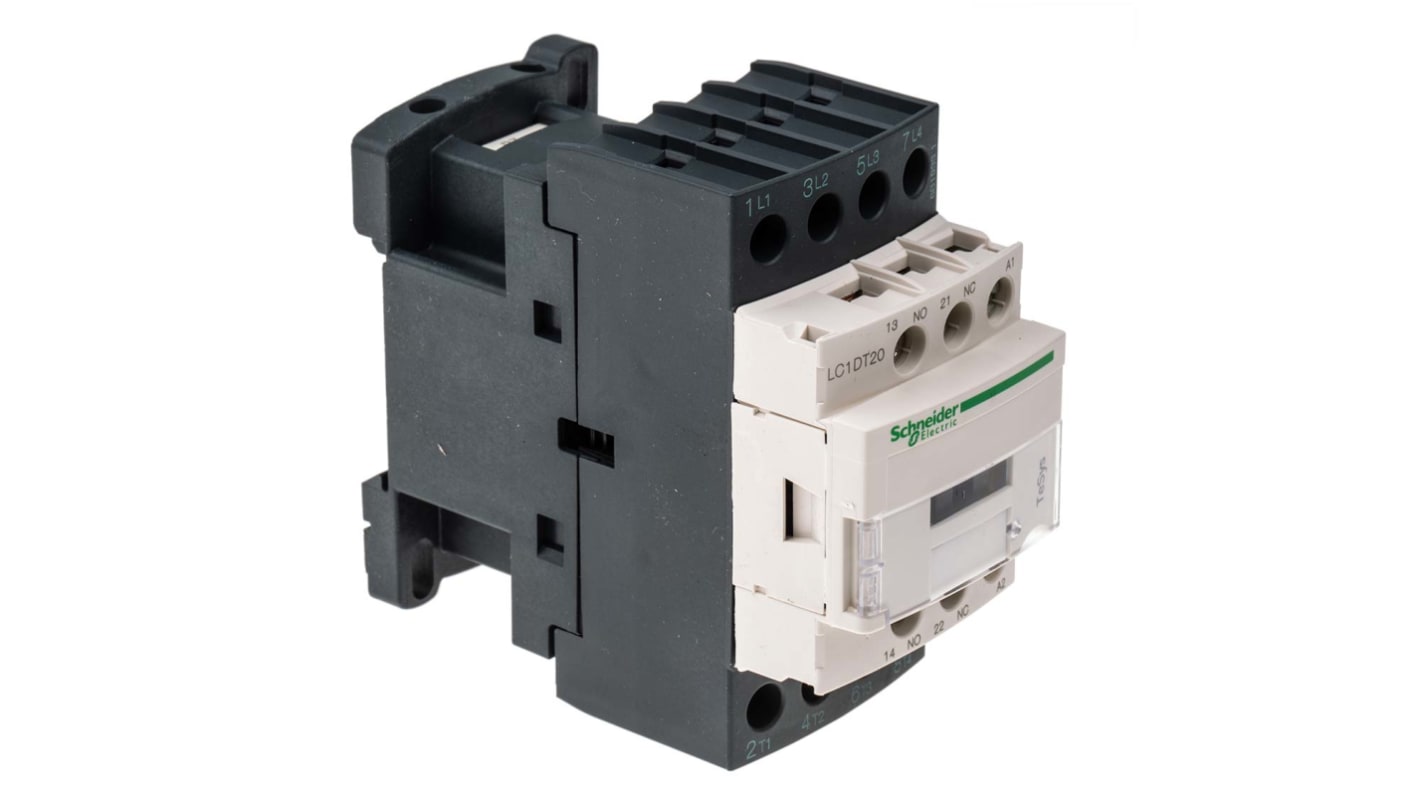

Schneider Electric TeSys D LC1D Contactor, 230 V ac Coil, 4-Pole, 20 A, 4NO, 690 V ac
- RS Stock No.:
- 454-7783
- Distrelec Article No.:
- 304-01-279
- Mfr. Part No.:
- LC1DT20P7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£51.39
(exc. VAT)
£61.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 42 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £51.39 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 454-7783
- Distrelec Article No.:
- 304-01-279
- Mfr. Part No.:
- LC1DT20P7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 20 A | |
| Series | LC1D | |
| Range | TeSys D | |
| Normal State Configuration | 4NO | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 85mm | |
| Depth | 90mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 230 V ac | ||
Number of Poles 4 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 20 A | ||
Series LC1D | ||
Range TeSys D | ||
Normal State Configuration 4NO | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 85mm | ||
Depth 90mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ID
Schneider Electric 4-Pole Contactor 230V AC Coil Voltage, 20A Current Rating - LC1D Series - LC1DT20P7
Reliably control your electrical circuits with this contactor from Schneider Electric. With an AC-1 utilisation category and a maximum operating temperature of +60°C, it's ideal for managing resistive loads such as heating systems. The unit has four poles for efficient electrical switching, along with a high contact voltage rating of 690V AC to manage high-power circuits. Integrated category III overvoltage protection and fire resistance up to +850°C help to keep fixed installations running safely. As well as being resistant to shocks and vibration, this long-lasting device offers mechanical durability of 15 million cycles.
• Compact design with a length of 85mm and a depth of 90mm to take up minimal space on your panel
• Plate or rail mounting for installation flexibility
• Contains no mercury, toxic heavy metals or polyvinyl chloride (PVC) to increase sustainability and safety
• Plate or rail mounting for installation flexibility
• Contains no mercury, toxic heavy metals or polyvinyl chloride (PVC) to increase sustainability and safety
Applications
• HVAC (heating, ventilation and air conditioning) systems
• Lighting circuits
• Food-processing facilities
• Lighting circuits
• Food-processing facilities
How does this contactor connect to circuits?
This contactor is fitted with screw terminals to make a secure connection and is clearly labelled to simplify installation.
