ABB A Line Series Contactor, 110 V ac Coil, 3-Pole, 27 A, 5.5 kW, 3NO, 690 V ac
- RS Stock No.:
- 445-0948
- Mfr. Part No.:
- 1SBL161001R8410
- Brand:
- ABB

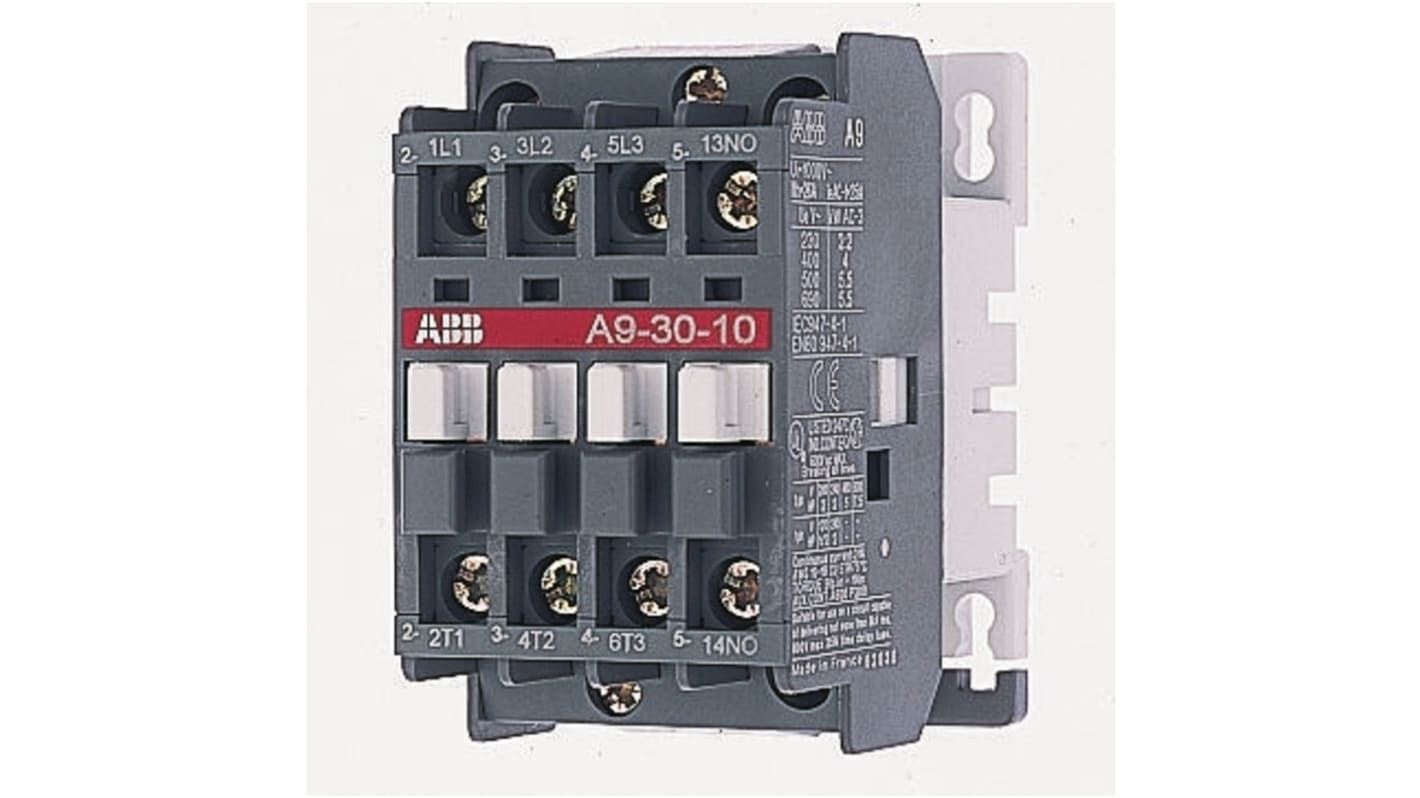

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£59.74
(exc. VAT)
£71.69
(inc. VAT)
- RS Stock No.:
- 445-0948
- Mfr. Part No.:
- 1SBL161001R8410
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 110 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 27 A | |
| Series | A Line | |
| Power Rating | 5.5 kW | |
| Range | A9 | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Length | 74mm | |
| Width | 44mm | |
| Depth | 74mm | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 110 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 27 A | ||
Series A Line | ||
Power Rating 5.5 kW | ||
Range A9 | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Length 74mm | ||
Width 44mm | ||
Depth 74mm | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -40°C | ||
A Series AC Controlled Contactors
Three main poles
One N/O auxiliary contact
Front and side mounted auxiliary contact blocks
Location for surge protection
DIN rail and back plate mounting
Manufactured to IEC947-4-1, EN60 047-4-1
CE marked
One N/O auxiliary contact
Front and side mounted auxiliary contact blocks
Location for surge protection
DIN rail and back plate mounting
Manufactured to IEC947-4-1, EN60 047-4-1
CE marked
Approvals
UL, CSA, BV, DNV, GL, LROS, PRS and RINA
