Schneider Electric TeSys D LC1D Contactor, 230 V ac Coil, 3-Pole, 150 A, 80 kW, 3NO, 1 kV ac

View all Contactors

Subtotal (1 unit)*

£591.53

(exc. VAT)

£709.84

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
  • Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£591.53

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
400-1552
Distrelec Article No.:
301-50-623
Mfr. Part No.:
LC1D150P7
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Coil Voltage

230 V ac

Number of Poles

3

Contact Voltage Rating

1 kV ac

Contact Current Rating

150 A

Power Rating

80 kW

Series

LC1D

Range

TeSys D

Normal State Configuration

3NO

Number Of Auxiliary Contacts

2

Terminal Type

Screw

Width

120mm

Length

158mm

Depth

132mm

Better World Verification

Green Premium

Better World Product

Yes

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+60°C

RoHS Status: Exempt

COO (Country of Origin):
CZ

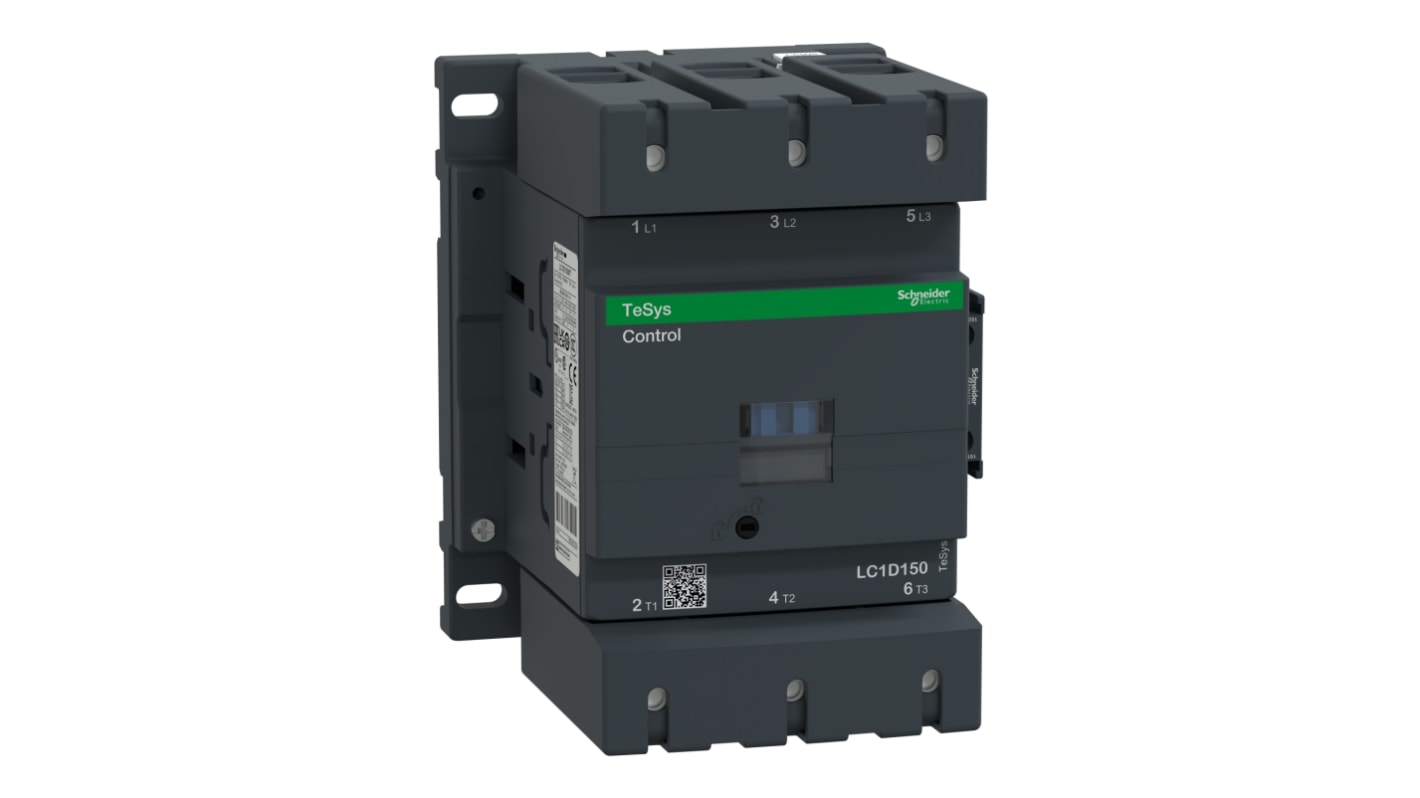

Schneider Electric LC1D150P7


TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). They can be used to create motor starters for almost any type of application. It provides a 230V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Contactor is rated for 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC and 125HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with up to a 600VAC 300A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 230 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Features & Benefits


• IP20 rating indicates the unit is touch-proof and protected against small objects over 12mm
• Fire-resistant up to +850°C to minimise electrical fire risk
• Bidirectional peak-limiting diode suppressor protects the coil from damage caused by electrical faults
• Screw termination method for simple installation and secure connections that can withstand vibration
• Dimensions of 158 (L) x 120 (W) x 132mm (D) for installation in busy setups

Applications


• Production lines
• Warehousing and distribution facilities
• Automotive industry

How do I mount this contactor?


Depending on your system's layout, you can either clip the unit onto a standard DIN rail or secure it to a panel with screws.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
