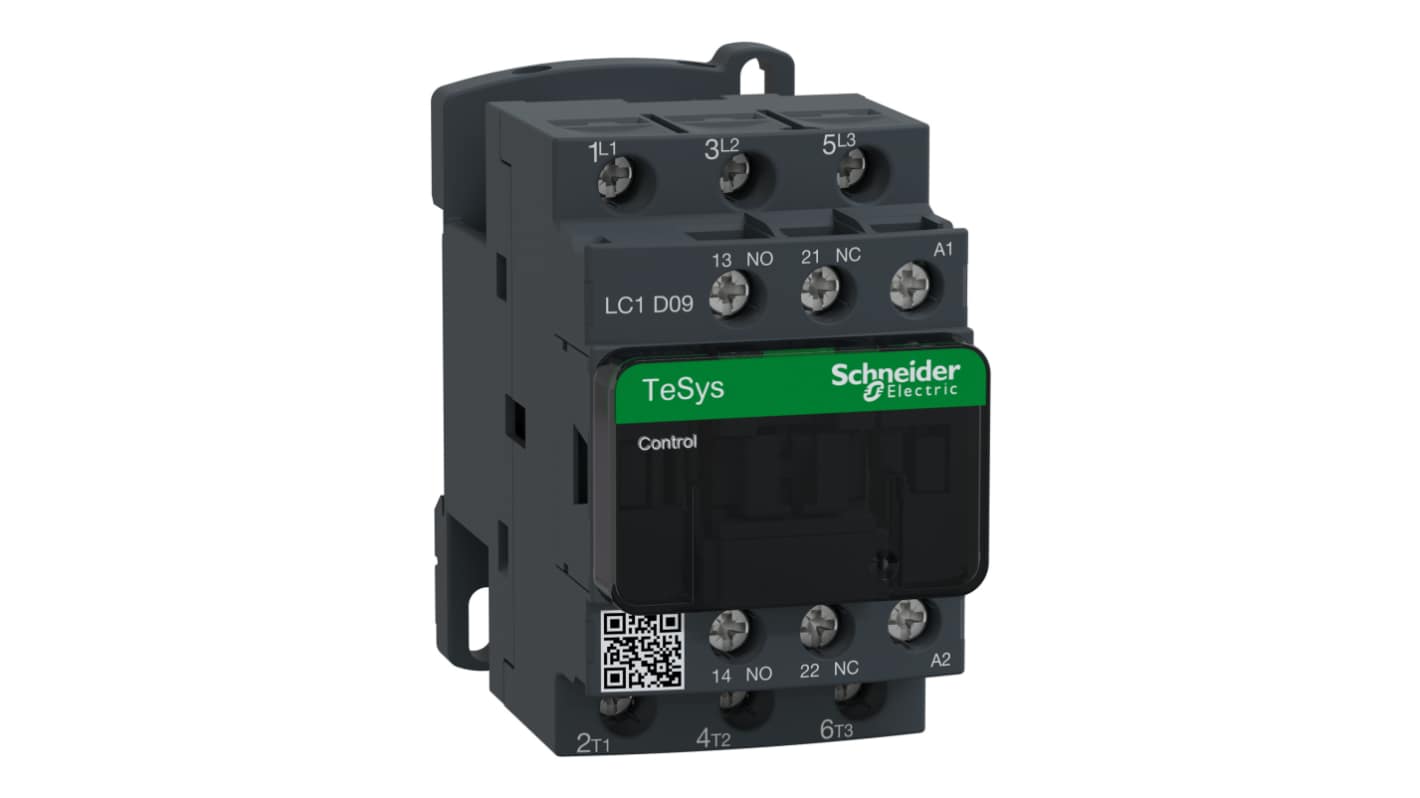

Schneider Electric TeSys D LC1D Contactor, 24 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac
- RS Stock No.:
- 394-9813
- Distrelec Article No.:
- 136-22-600
- Mfr. Part No.:
- LC1D09B7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£40.63
(exc. VAT)
£48.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 56 unit(s) ready to ship
- Plus 53 unit(s) ready to ship from another location
- Plus 224 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.63 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 394-9813
- Distrelec Article No.:
- 136-22-600
- Mfr. Part No.:
- LC1D09B7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Contactor Type | Motor Contactor | |
| Coil Voltage | 24 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 9 A | |
| Power Rating | 4 kW | |
| Range | TeSys D | |
| Series | LC1D | |
| Function | Motor Control | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 2 | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Terminal Type | Screw | |
| Length | 77mm | |
| Width | 45mm | |
| Depth | 86mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Minimum Operating Temperature | -40°C | |
| Control Voltage | 24 V ac | |
| Maximum Operating Temperature | +60°C | |
| Pole and Throw Configuration | 3P | |
| Mounting Style | DIN Rail | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Contactor Type Motor Contactor | ||
Coil Voltage 24 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 9 A | ||
Power Rating 4 kW | ||
Range TeSys D | ||
Series LC1D | ||
Function Motor Control | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 2 | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Terminal Type Screw | ||
Length 77mm | ||
Width 45mm | ||
Depth 86mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Minimum Operating Temperature -40°C | ||
Control Voltage 24 V ac | ||
Maximum Operating Temperature +60°C | ||
Pole and Throw Configuration 3P | ||
Mounting Style DIN Rail | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric LC1D Series Contactor, 24V AC Coil Voltage, 9A Current Rating - LC1D09B7
This contactor is a versatile device designed for motor control applications, specifically ideal for handling resistive loads. As a 3 Pole Contactor with a 24V AC coil, it operates efficiently at a contact voltage rating of 690V AC. Measuring 77mm in length, 45mm in width, and 86mm in depth, it is suitable for DIN Rail mounting, making it an excellent choice for various electrical installations.
Features & Benefits
• Functions effectively in motor control and resistive load applications
• Supports a maximum contact current rating of 9A at 440V AC
• Offers an operating temperature range from -40°C to +60°C
• Incorporates both 1NO and 1NC auxiliary contacts for enhanced functionality
• Ideal for high voltage environments with a contact voltage rating of 690V AC
• Designed for robust installations with screw terminal connections
• Supports a maximum contact current rating of 9A at 440V AC
• Offers an operating temperature range from -40°C to +60°C
• Incorporates both 1NO and 1NC auxiliary contacts for enhanced functionality
• Ideal for high voltage environments with a contact voltage rating of 690V AC
• Designed for robust installations with screw terminal connections
Applications
• Utilised in motor control systems for industrial equipment
• Suitable for automation controls within manufacturing processes
• Employed in HVAC systems for fan motors and compressors
• Commonly used in packaging machinery for operational efficiency
• Suitable for automation controls within manufacturing processes
• Employed in HVAC systems for fan motors and compressors
• Commonly used in packaging machinery for operational efficiency
What is the significance of the auxiliary contacts in this device?
The auxiliary contacts, consisting of 1NO and 1NC, enable the control of additional circuits simultaneously, facilitating precise automation control in various applications.
How does this device ensure efficient thermal management during operation?
Designed to function within a temperature range of -40°C to +60°C, it maintains performance stability across diverse environmental conditions.
What type of terminal connections does this device utilise?
It features screw clamp terminals accommodating cable stiffness for both flexible and solid conductors, securing reliable connections in electrical setups.
What are the implications of its rated operational current?
Its rated operational current of 9A at 440V AC indicates its capacity to handle substantial loads, ensuring reliable operation in demanding applications.
