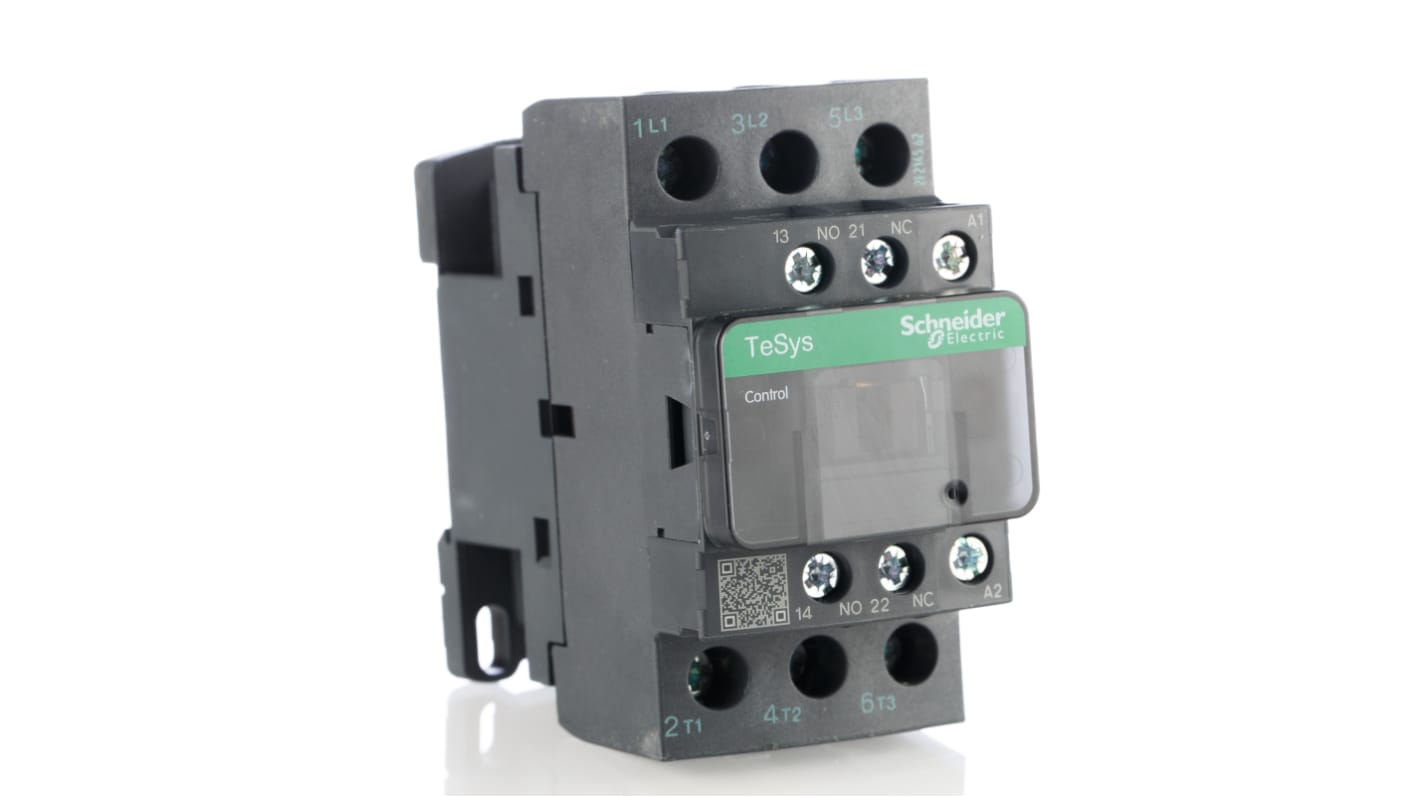

Schneider Electric TeSys D LC1D Contactor, 24 V ac Coil, 3-Pole, 25 A, 11 kW, 3NO, 690 V ac
- RS Stock No.:
- 394-9706
- Distrelec Article No.:
- 136-22-615
- Mfr. Part No.:
- LC1D25B7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£86.04
(exc. VAT)
£103.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 95 unit(s) ready to ship
- Plus 83 unit(s) ready to ship from another location
- Plus 14 unit(s) shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £86.04 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 394-9706
- Distrelec Article No.:
- 136-22-615
- Mfr. Part No.:
- LC1D25B7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24 V ac | |
| Contactor Type | Safety Contactor | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 25 A | |
| Power Rating | 11 kW | |
| Series | LC1D | |
| Range | TeSys D | |
| Function | Motor Control | |
| Normal State Configuration | 3NO | |
| Auxiliary Contact Configuration | 1NO + 1NC | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 85mm | |
| Depth | 92mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Pole and Throw Configuration | 3P | |
| Minimum Operating Temperature | -40°C | |
| Mounting Style | DIN Rail | |
| Maximum Operating Temperature | +60°C | |
| Control Voltage | 24 V ac | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24 V ac | ||
Contactor Type Safety Contactor | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 25 A | ||
Power Rating 11 kW | ||
Series LC1D | ||
Range TeSys D | ||
Function Motor Control | ||
Normal State Configuration 3NO | ||
Auxiliary Contact Configuration 1NO + 1NC | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 85mm | ||
Depth 92mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Pole and Throw Configuration 3P | ||
Minimum Operating Temperature -40°C | ||
Mounting Style DIN Rail | ||
Maximum Operating Temperature +60°C | ||
Control Voltage 24 V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric LC1D Series Contactor, 24V AC Coil Voltage, 25A Current Rating - LC1D25B7
This contactor is a high-performance component designed for motor control applications. As a 3 pole contactor, it boasts a compact size with dimensions of 85mm in height, 45mm in width, and 92mm in depth. It operates at a coil voltage of 24V AC, making it suitable for various industrial tasks, particularly in automation and electrical systems.
Features & Benefits
• 24V AC control voltage for versatile operation in automation systems
• Rated for contact currents up to 25A for reliable performance
• Designed for 3NO configuration to efficiently control motor functions
• Maximum operational temperature of +60 °C for robust applications
• Screw terminal type for secure and straightforward connections
• Includes two auxiliary contacts for enhanced functionality
• Rated for contact currents up to 25A for reliable performance
• Designed for 3NO configuration to efficiently control motor functions
• Maximum operational temperature of +60 °C for robust applications
• Screw terminal type for secure and straightforward connections
• Includes two auxiliary contacts for enhanced functionality
Applications
• Used for controlling three-phase motors in industrial settings
• Interface for protecting motors by preventing overload
• Utilised for switching resistive loads safely
• Employed in various automation processes within electrical circuits
• Interface for protecting motors by preventing overload
• Utilised for switching resistive loads safely
• Employed in various automation processes within electrical circuits
What is the maximum voltage that can be handled while using this device?
The device can handle a maximum operational voltage of up to 690V AC, allowing flexibility in applications across different electrical systems.
How does the contactor maintain safe operation over varying temperature conditions?
It is designed to function efficiently within a temperature range of -40 °C to +60 °C, ensuring reliability even in extreme environments while maintaining performance standards.
What kind of loads can this device switch effectively?
The contactor can manage both resistive and inductive loads, making it suitable for a variety of applications including motor control and general switching tasks.
How is the installation of this device facilitated?
The contactor is designed for DIN rail mounting, simplifying the installation process within control panels and industrial enclosures.
What advantages do the auxiliary contacts provide?
The inclusion of one NO and one NC auxiliary contact enhances its control capabilities, allowing users to implement additional control functions or safety interlocks.
