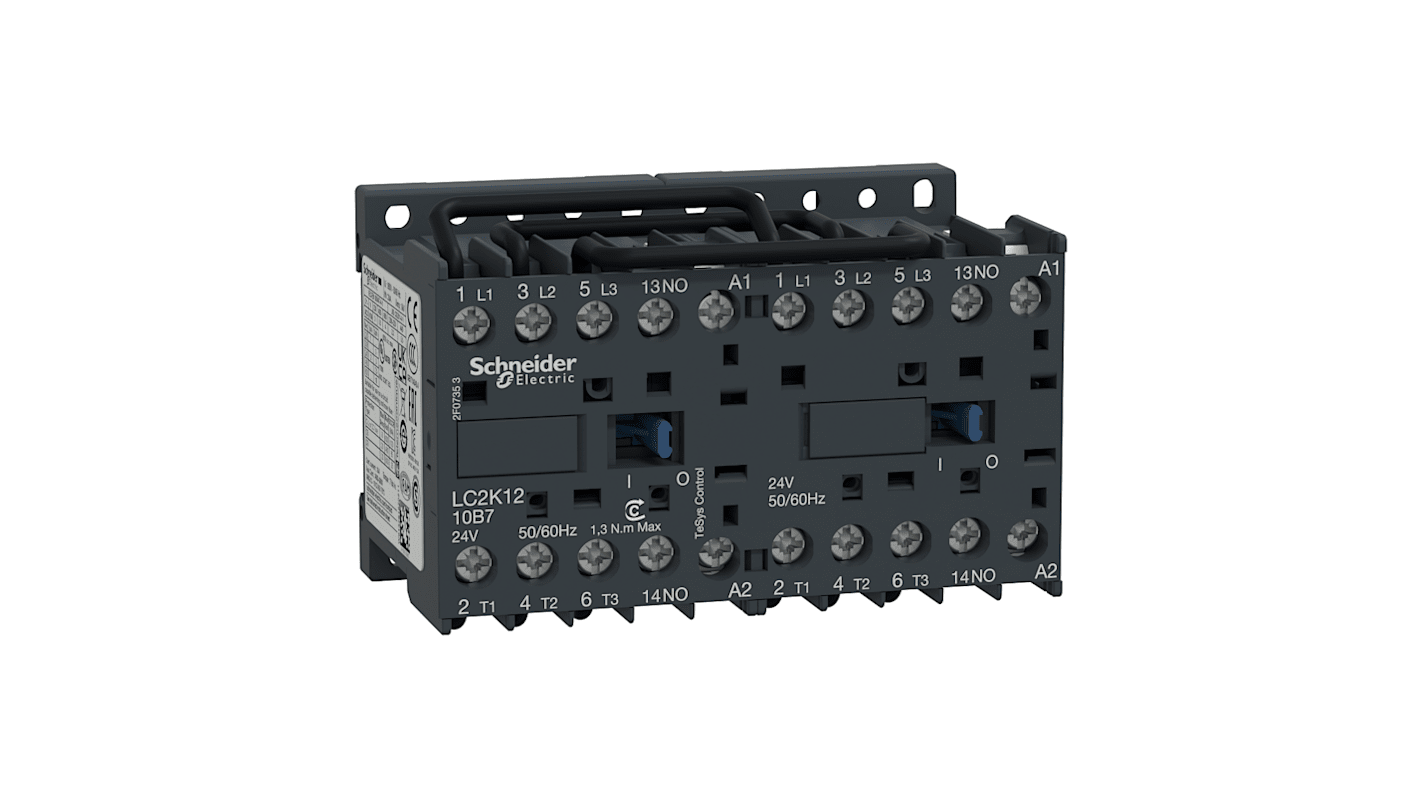

Schneider Electric TeSys K LC2K Reversing Contactor, 24 V ac Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 690 V ac
- RS Stock No.:
- 305-2054
- Mfr. Part No.:
- LC2K1210B7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£95.38
(exc. VAT)
£114.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £95.38 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£90.36
(exc. VAT)
£108.43
(inc. VAT)
- RS Stock No.:
- 305-2054
- Mfr. Part No.:
- LC2K1210B7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 12 A | |
| Series | LC2K | |
| Power Rating | 5.5 kW | |
| Range | TeSys K | |
| Function | Reversing | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 1 | |
| Auxiliary Contact Configuration | 1NO | |
| Terminal Type | Screw | |
| Width | 90mm | |
| Length | 58mm | |
| Depth | 57mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 12 A | ||
Series LC2K | ||
Power Rating 5.5 kW | ||
Range TeSys K | ||
Function Reversing | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 1 | ||
Auxiliary Contact Configuration 1NO | ||
Terminal Type Screw | ||
Width 90mm | ||
Length 58mm | ||
Depth 57mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -25°C | ||
Schneider Electric TeSys K (LC2K) 3 Pole Reversing Contactors.
Schneider electric provide you with solutions covering everything from industrial infrastructure and building industries from basic machinery and more intricate process systems. The Schneider Electric range of reversing contactors also includes non-reversing contactors, relays and protection relays. The TeSys K range of contactors provides you with reversing and non-reversing contactors from 0.06 kW to 5.5 kW and up to 4 Pole Contactor relays. The range is endless with solutions for motor management systems, thermistor protection plus modular contactors. Provide ranges of products offering various options to suit your many requirements.
TeSys K reversing contactors provide a complete range plus include non-reversing contactors. The TeSys K contactors offer the best performance, compactness ratio all with seamless integration in required applications.
- TeSys D is available as a reversing and non-reversing contactor.
- TeSys B is a bar contactor up to 900 kW.
- TeSys K contactors offered as reversing and non-reversing contactors.
- TeSys GC and GY modular contactors and DIN rail mount contactors.
Series Features.
- AC, DC, Low consumption voltage DC and silent control circuits available.
- 6 A, 9 A and 12 A current ratings available.
- 2.2 kw, 4.5 kw, 5.5 kW power applications in AC-3 and AC-4.
- Screw clamp, Faston connectors. Spring terminals, Pins for PCB (printed circuit boards) available.
Applications.
- Industry, Infrastructure, Building and many more.
- Control systems.
- Areas that are noise sensitive, disturbed mains supply, silent contactor.
- Compatible with programmable controller outputs, low consumption contactor.
- Switching / switch contactor or coil relays.
- Powering control and signalling equipment.
LC2K1210B7 TeSys K (LC2K) 3 Pole Reversing Contactor.
- Motor control and resistive load applications.
- AC-4, AC-1, AC-3 Categories.
- Comes pre-assembled with a reversing power Busbar.
- Ue Rated Voltage Power circuit: 690 V AC 50/60 Hz, Signalling circuit: <= 690 V AC 50/60 Hz.
- Ie Rated current 20 A (at <= 440 V AC AC-1 for power circuit, 16 A (at <= 440 V AC AC-3 for power circuit, 12 A at <= 440 V AC AC-3 for power circuit.
- Motor power kW 4 kW at 480 V AC 50/60 Hz, 4 kW at 500...600 V AC 50/60 Hz, 4 kW at 660...690 V AC 50/60 Hz, 3 kW at 220...230 V AC 50/60 Hz, 5.5 kW at 380...415 V AC 50/60 Hz, 5.5 kW at 440 V AC 50/60 Hz.
- Circuit AC at 50/60 Hz.
- Overvoltage category III.
- Breaking Capacity 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947.
- Mechanical interlocking.
- Screw clamp terminals.
- Mounting – DIN Rail, Plate.
- IP20 to VDE 0106.
Standards
VDE 0660, BS 5424, IEC 60947, NF C 63-110.
Certificate No.
UL, CSA.
