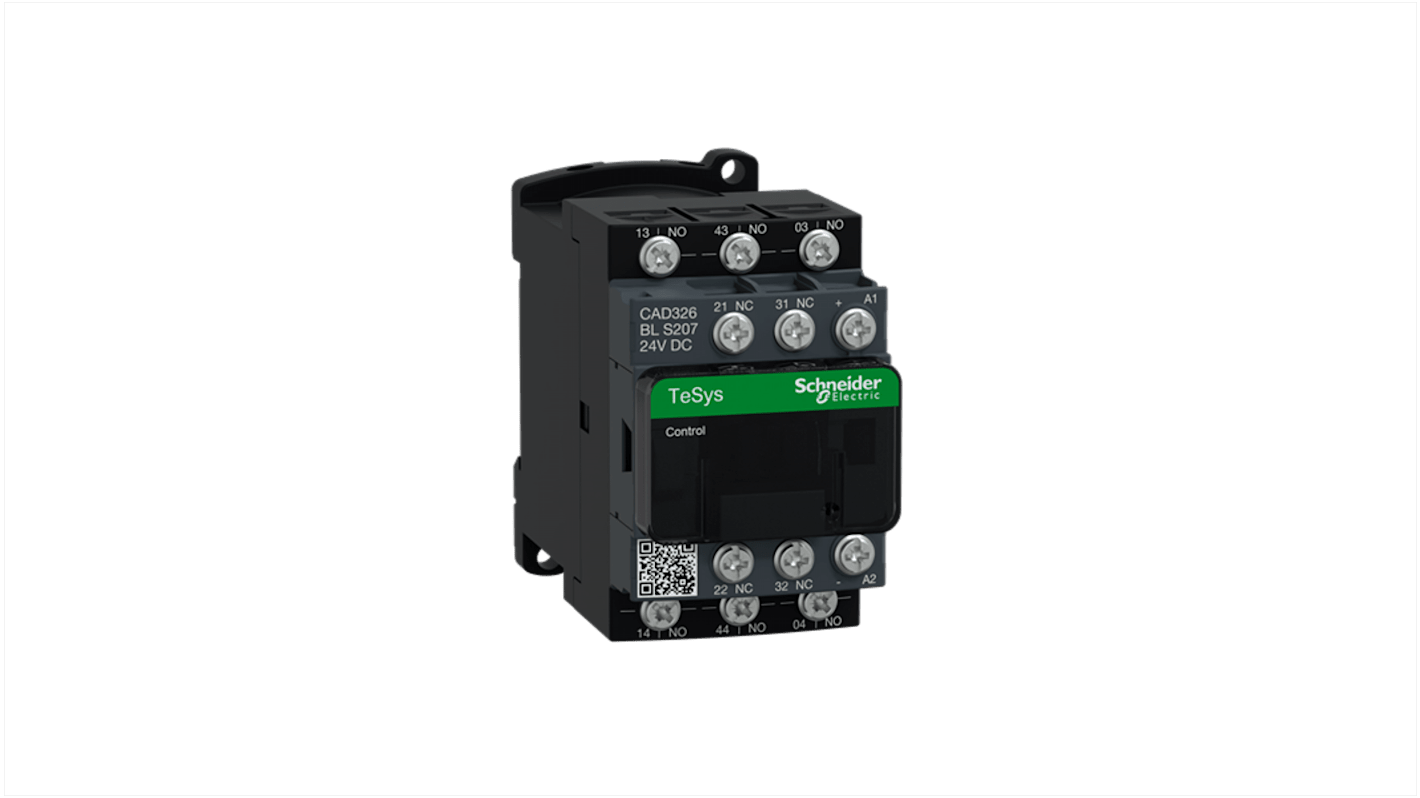

Schneider Electric TeSyS CA Control Relay, 24V dc Coil, 140 A, 2.4 W 24V dc, 3 NO/2 NC, 690V ac
- RS Stock No.:
- 288-7186
- Mfr. Part No.:
- CAD326BLS207
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£81.06
(exc. VAT)
£97.27
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £81.06 |
*price indicative
- RS Stock No.:
- 288-7186
- Mfr. Part No.:
- CAD326BLS207
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24V dc | |
| Product Type | Control Relay | |
| Contact Voltage | 690V ac | |
| Contact Current | 140A | |
| Series | TeSyS CA | |
| Power Rating | 2.4W | |
| Function | Control Circuit | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO/2 NC | |
| Auxiliary Contact Configuration | 3 NO/2 NC | |
| Terminal Type | Lug Ring | |
| Minimum Operating Temperature | -40°C | |
| Contactor Application | Control Circuit | |
| Operational Current Ie | 10A | |
| Control Circuit Voltage Uc | 24V dc | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL, UKCA, EN/IEC 60947-5-1, EN/IEC 60947-4-1, EN 45545: R22 HL3, CE | |
| Length | 93mm | |
| Depth | 93mm | |
| Width | 45mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V dc | ||
Product Type Control Relay | ||
Contact Voltage 690V ac | ||
Contact Current 140A | ||
Series TeSyS CA | ||
Power Rating 2.4W | ||
Function Control Circuit | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO/2 NC | ||
Auxiliary Contact Configuration 3 NO/2 NC | ||
Terminal Type Lug Ring | ||
Minimum Operating Temperature -40°C | ||
Contactor Application Control Circuit | ||
Operational Current Ie 10A | ||
Control Circuit Voltage Uc 24V dc | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL, UKCA, EN/IEC 60947-5-1, EN/IEC 60947-4-1, EN 45545: R22 HL3, CE | ||
Length 93mm | ||
Depth 93mm | ||
Width 45mm | ||
- COO (Country of Origin):
- FR
The Schneider Electric Control relay from the TeSys Deca S207 railway range is a versatile and reliable solution for various electric control circuit applications. With features like low consumption coil technology, UL certifications, and a wide operating temperature range, this product is designed to meet the demanding needs of the railway industry.
DC low consumption for efficient operation
Rail mounting support and lugs ring terminals for easy installation
Mechanical durability of 30 Mcycles for long lasting performance
Environmentally friendly with Green Premium product status
Mercury free composition
