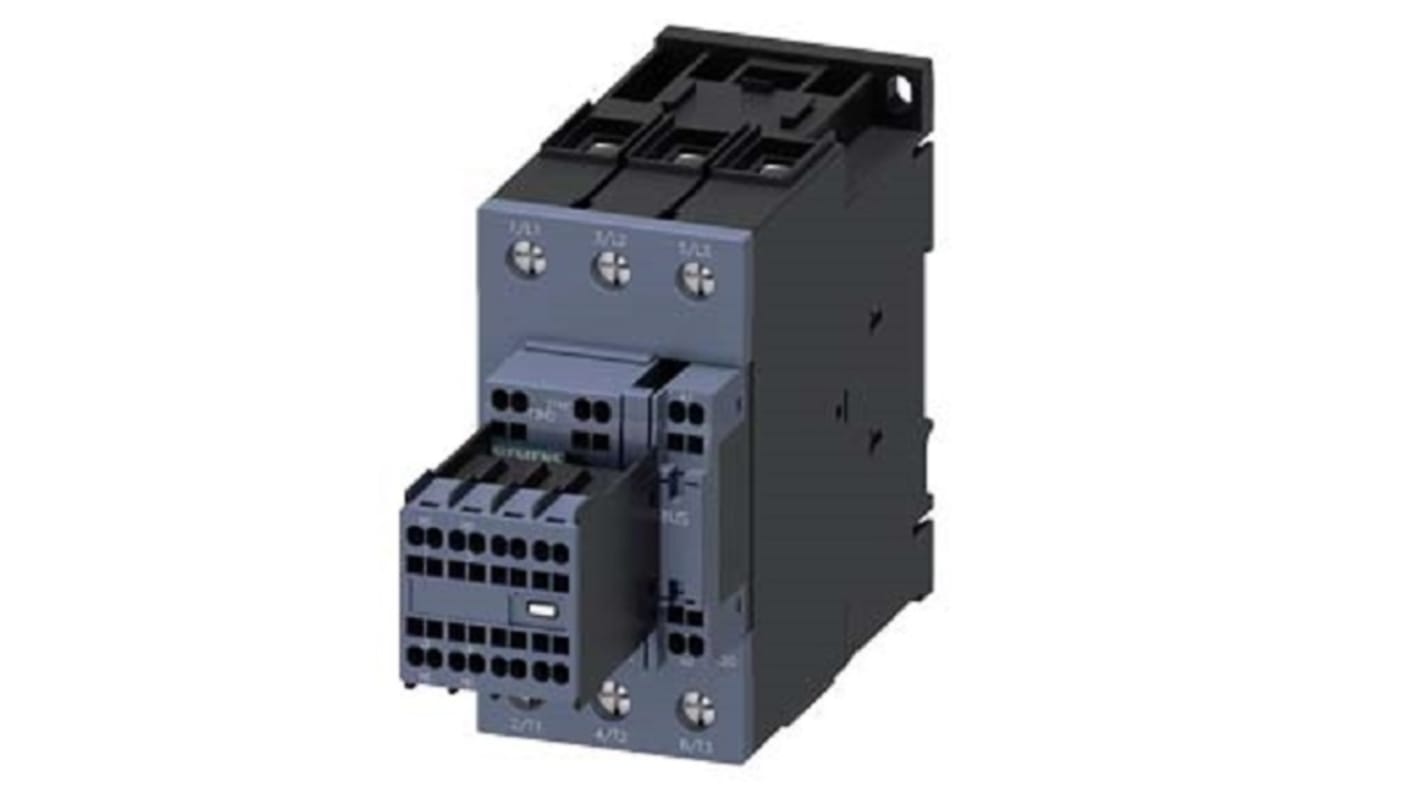

Siemens 3RT2 Contactor, 110V ac Coil, 3-Pole, 51 A, 22 kW 110V ac, 2 NO/2 NC, 110V ac
- RS Stock No.:
- 287-9490
- Distrelec Article No.:
- 301-39-522
- Mfr. Part No.:
- 3RT2036-3AF04
- Brand:
- Siemens
Subtotal (1 unit)*
£171.38
(exc. VAT)
£205.66
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £171.38 |
*price indicative
- RS Stock No.:
- 287-9490
- Distrelec Article No.:
- 301-39-522
- Mfr. Part No.:
- 3RT2036-3AF04
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Contactor | |
| Coil Voltage | 110V ac | |
| Number of Poles | 3 | |
| Contact Voltage | 110V ac | |
| Contact Current | 51A | |
| Series | 3RT2 | |
| Power Rating | 22kW | |
| Function | Safety | |
| Mount Type | Surface | |
| Normal State Configuration | 2 NO/2 NC | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 110V ac | |
| Minimum Operating Temperature | -25°C | |
| Contactor Application | Safety | |
| Maximum Operating Temperature | 60°C | |
| Width | 55mm | |
| Depth | 178mm | |
| Standards/Approvals | IEC 81346-2, IEC 60068-2-30 | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Contactor | ||
Coil Voltage 110V ac | ||
Number of Poles 3 | ||
Contact Voltage 110V ac | ||
Contact Current 51A | ||
Series 3RT2 | ||
Power Rating 22kW | ||
Function Safety | ||
Mount Type Surface | ||
Normal State Configuration 2 NO/2 NC | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 110V ac | ||
Minimum Operating Temperature -25°C | ||
Contactor Application Safety | ||
Maximum Operating Temperature 60°C | ||
Width 55mm | ||
Depth 178mm | ||
Standards/Approvals IEC 81346-2, IEC 60068-2-30 | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- DE
The Siemens Power Contactor rated for currents up to 51 A and power outputs of 22 kW at 400 V. Configured with three poles, it ensures efficient switching in three phase electrical systems. With a coil voltage of 110 V AC and compatibility with 50 Hz frequency, it suits various power supply configurations. Additionally, it features two normally open and two normally closed auxiliary contacts, enhancing versatility in control circuitry.
Shock resistance
IP20 protection class
Touch protection on the front
