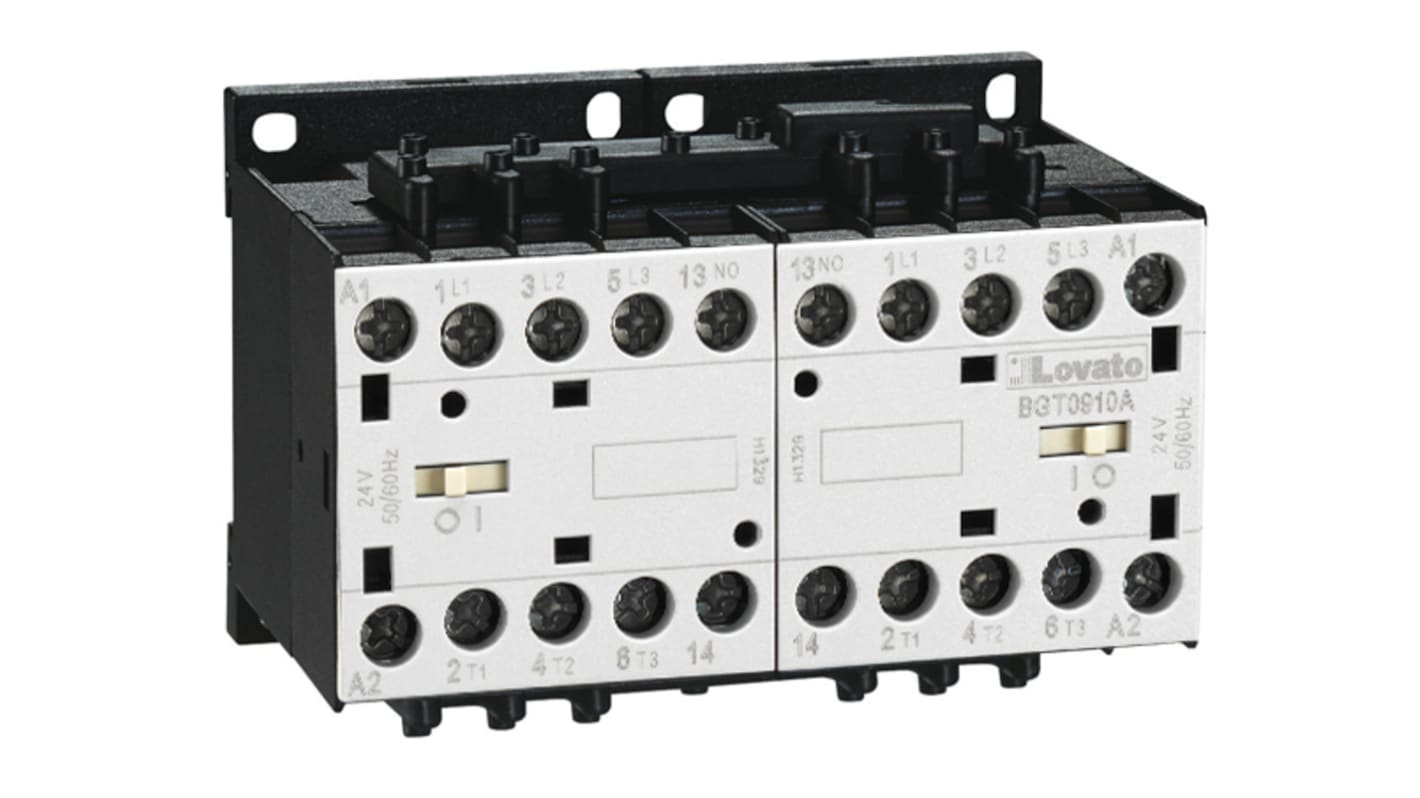

Lovato 11BG Reversing Contactor, 24V Coil, 3-Pole, 12 A, 5.7 kW, 1 NO, 440V
- RS Stock No.:
- 272-6086
- Mfr. Part No.:
- 11BGT1210D024
- Brand:
- Lovato
Subtotal (1 unit)*
£238.74
(exc. VAT)
£286.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £238.74 |
*price indicative
- RS Stock No.:
- 272-6086
- Mfr. Part No.:
- 11BGT1210D024
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Product Type | Reversing Contactor | |
| Coil Voltage | 24V | |
| Number of Poles | 3 | |
| Contact Voltage | 440V | |
| Contact Current | 12A | |
| Series | 11BG | |
| Power Rating | 5.7kW | |
| Function | Motor Control, Reversing | |
| Normal State Configuration | 1 NO | |
| Number of Auxiliary Contacts | 1 | |
| Auxiliary Contact Configuration | 1 NO/0 NC | |
| Terminal Type | Screw | |
| Operational Current Ie | 12A | |
| Contactor Application | Motor Start | |
| Length | 58mm | |
| Width | 88mm | |
| Standards/Approvals | CSA C22.2 n° 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 | |
| Depth | 56mm | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Product Type Reversing Contactor | ||
Coil Voltage 24V | ||
Number of Poles 3 | ||
Contact Voltage 440V | ||
Contact Current 12A | ||
Series 11BG | ||
Power Rating 5.7kW | ||
Function Motor Control, Reversing | ||
Normal State Configuration 1 NO | ||
Number of Auxiliary Contacts 1 | ||
Auxiliary Contact Configuration 1 NO/0 NC | ||
Terminal Type Screw | ||
Operational Current Ie 12A | ||
Contactor Application Motor Start | ||
Length 58mm | ||
Width 88mm | ||
Standards/Approvals CSA C22.2 n° 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 | ||
Depth 56mm | ||
- COO (Country of Origin):
- IT
The Lovato Reversing contactor has maximum 12 A operating current with 24 VDC coil voltage. This contactor has built In interlock with power wiring. This contactor also have one built in normally open auxiliary contacts.
445 g weight
cULus certified
Supports DC coil
Clamp screw terminal
ETIM 8.0 classification
