Allen Bradley 104S-C Contactor, 24V dc Coil, 3-Pole, 9 A, 7.5 kW 24V dc, NO, 690V ac
- RS Stock No.:
- 269-3113
- Mfr. Part No.:
- 104S-C09EJ210BC
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£267.21
(exc. VAT)
£320.65
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £267.21 |
*price indicative
- RS Stock No.:
- 269-3113
- Mfr. Part No.:
- 104S-C09EJ210BC
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Coil Voltage | 24V dc | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 9A | |
| Power Rating | 7.5kW | |
| Series | 104S-C | |
| Mount Type | DIN Rail | |
| Normal State Configuration | NO | |
| Auxiliary Contact Configuration | 1 NO/5 NC | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 24V dc | |
| Contactor Application | Safety | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC | |
| Depth | 235mm | |
| Length | 235mm | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Coil Voltage 24V dc | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 9A | ||
Power Rating 7.5kW | ||
Series 104S-C | ||
Mount Type DIN Rail | ||
Normal State Configuration NO | ||
Auxiliary Contact Configuration 1 NO/5 NC | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 24V dc | ||
Contactor Application Safety | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC | ||
Depth 235mm | ||
Length 235mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US

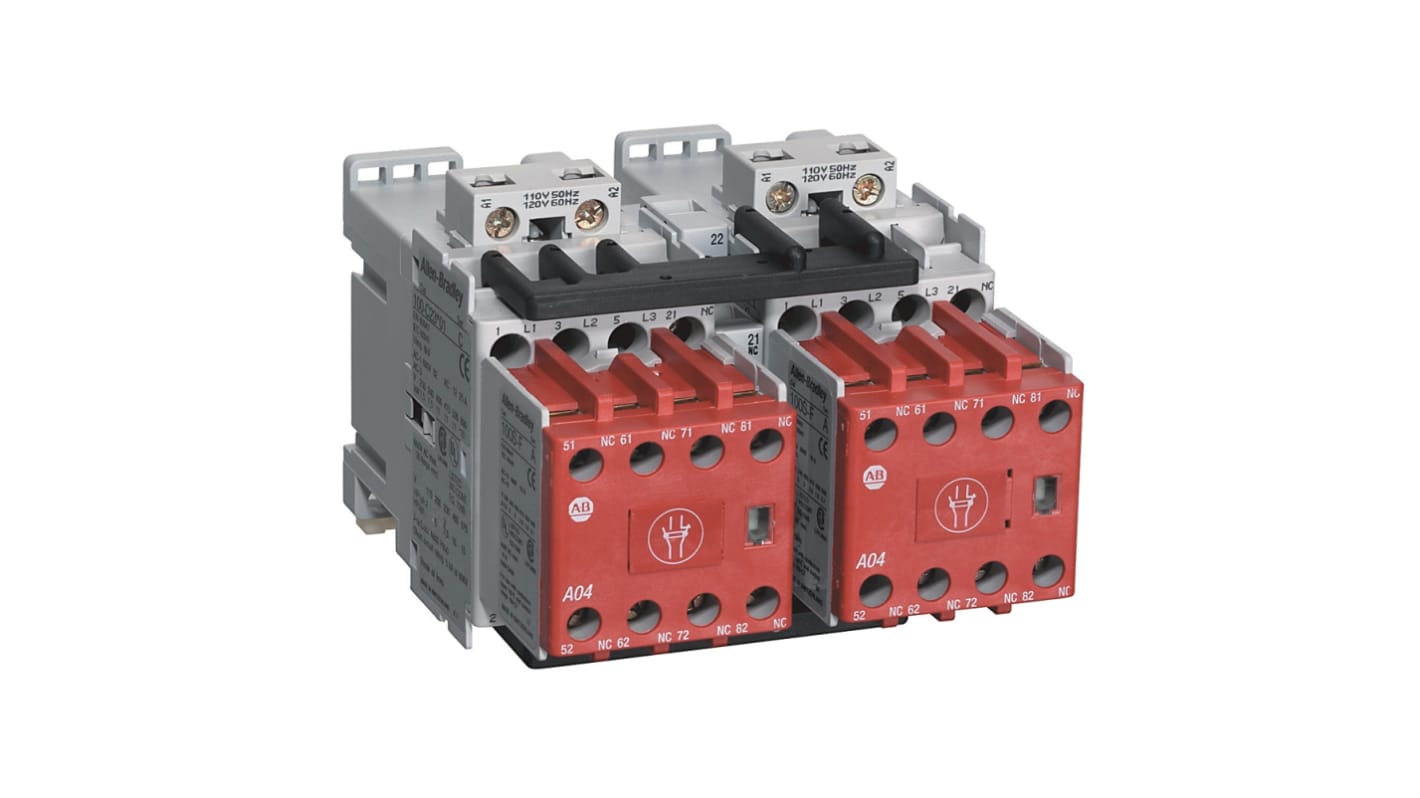

The Rockwell Automation 104S-C series reversing safety contactors provide mechanically linked positively guided contacts, which is required in feedback circuits for modern safety applications. The mechanically linked N.C auxiliary contacts do not change state when a power pole welds. In addition, these auxiliary contacts are ideally suited for low energy applications or feedback control circuits with multiple series connected N.C auxiliary contacts.
Front mounted auxiliary contacts
SUVA third party certification
Protective cover to prevent manual operation
Red contact housing for easy identification
Gold bifurcated auxiliary contacts
