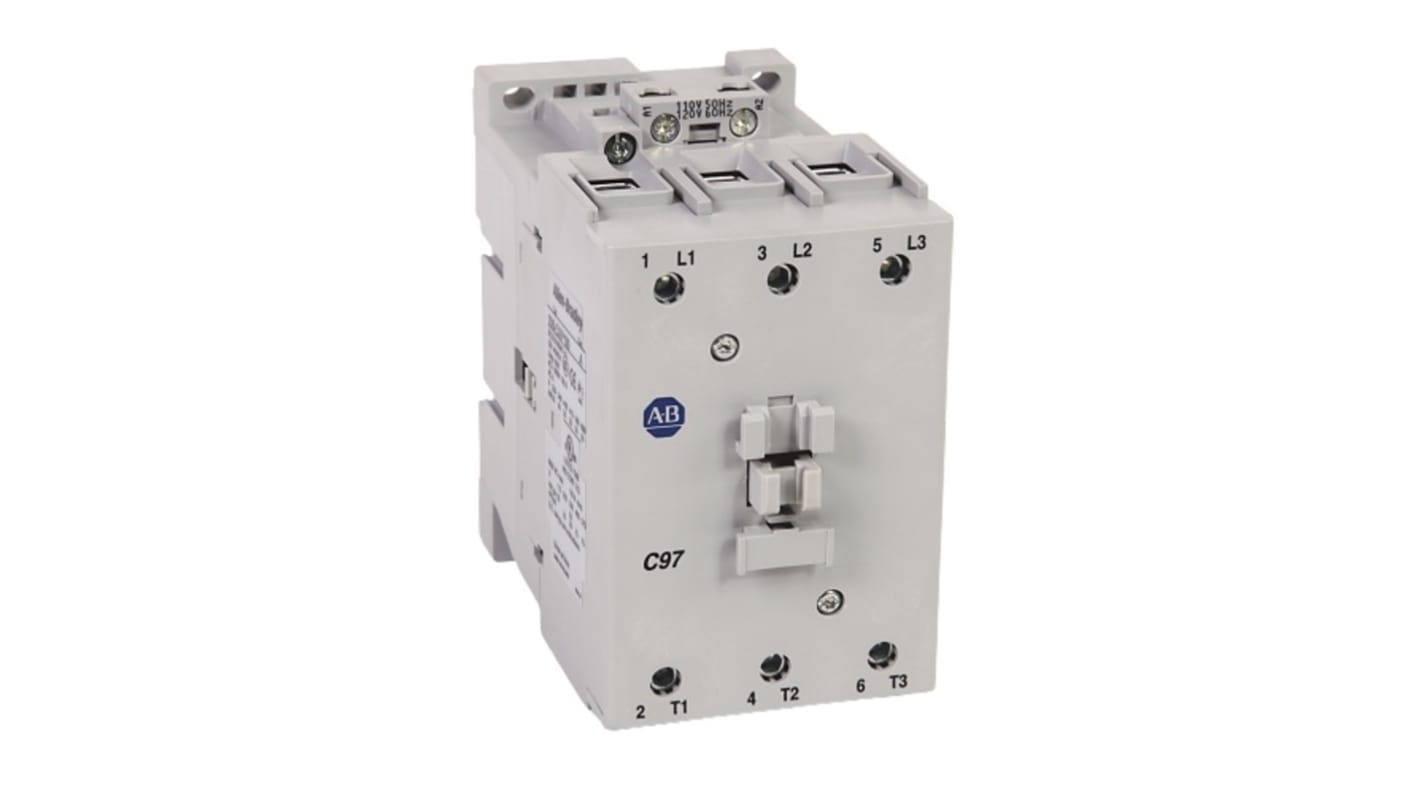

Allen Bradley 100C Contactor, 230V ac Coil, 3-Pole, 97 A, 52 kW 24V, 3 NO, 690V ac
- RS Stock No.:
- 269-3054
- Mfr. Part No.:
- 100-C97KF00
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£376.09
(exc. VAT)
£451.31
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £376.09 |
*price indicative
- RS Stock No.:
- 269-3054
- Mfr. Part No.:
- 100-C97KF00
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Coil Voltage | 230V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 97A | |
| Power Rating | 52kW | |
| Series | 100C | |
| Function | Motor Control | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 24V | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 97A | |
| Contactor Application | Motor Load | |
| Maximum Operating Temperature | 60°C | |
| Length | 134mm | |
| Standards/Approvals | UL, IEC, CSA | |
| Width | 90mm | |
| Depth | 134mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Coil Voltage 230V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 97A | ||
Power Rating 52kW | ||
Series 100C | ||
Function Motor Control | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 24V | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 97A | ||
Contactor Application Motor Load | ||
Maximum Operating Temperature 60°C | ||
Length 134mm | ||
Standards/Approvals UL, IEC, CSA | ||
Width 90mm | ||
Depth 134mm | ||
Pole and Throw Configuration 3P | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The Rockwell Automation 100-C series contactors offers space saving, high performance design and are designed to control motors and other loads. They have low power consumption and built in surge suppression with DC coils. They are environmentally friendly, versatile and flexible. These contactors can protect your other devices while delivering the performance you expect.
Provides IP2X finger protection
Can be attached to 35 mm DIN mounting rail
Front and side mounting of auxiliary contacts
Space saving coil mounted control modules
RoHs compliant
